1500 North Belcher Road, Clearwater, FL 33765 • Tel (727) 447-6140 • Fax (727) 442-5699 • sales@onicon.com
Turbine Flow Meter Manual 05/13 - 0721-1 / 13518 Page 30
1500 North Belcher Road, Clearwater, FL 33765 • Tel (727) 447-6140 • Fax (727) 442-5699
www.onicon.com • sales@onicon.com
0271-1 04-12

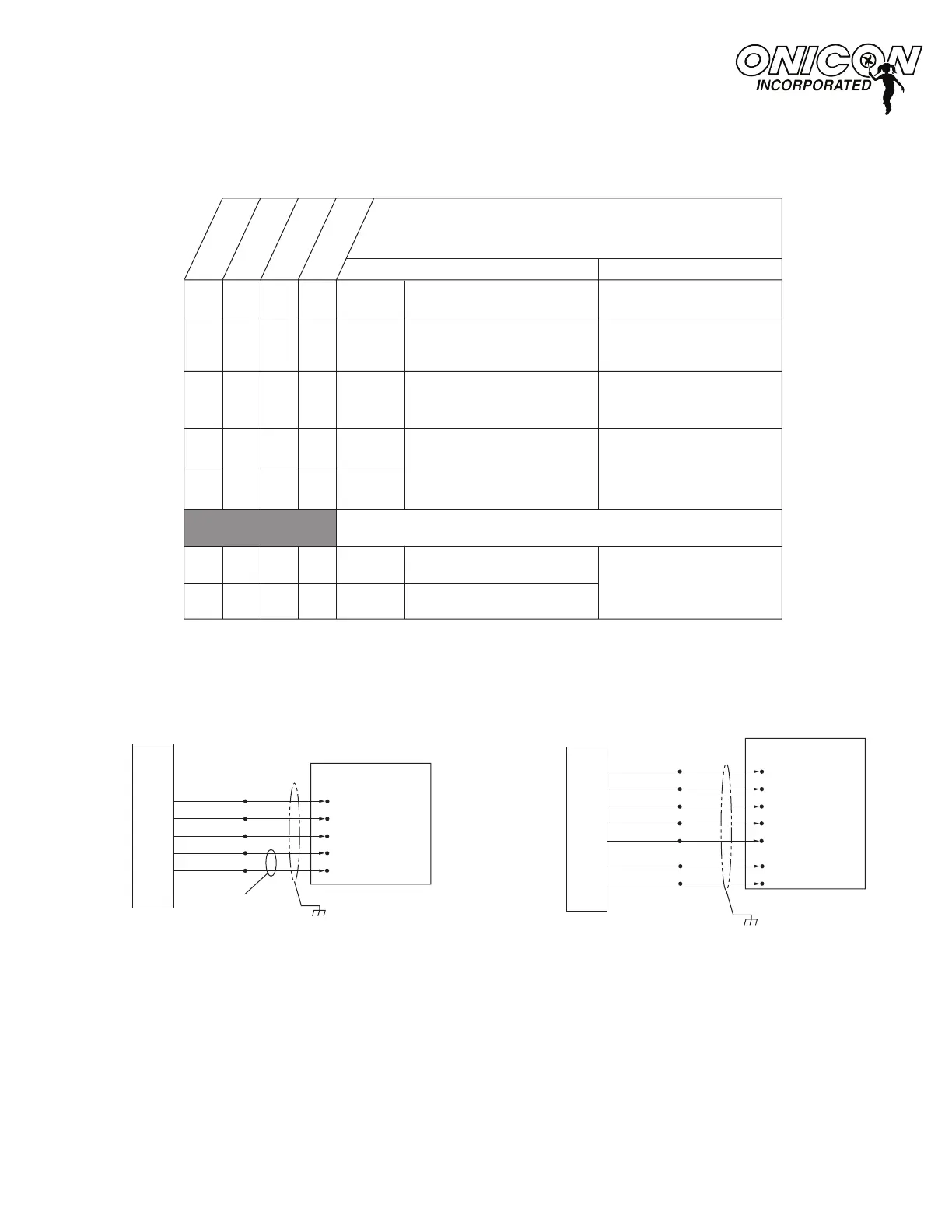

FLOW METER WIRING INFORMATION
User Connections for Models with Frequency Output
Models: F-1100, F-1200, FB-1200 & F-1300
8-020271-1
1500 North Belcher Road, Clearwater, Florida 33765 Tel (727) 447-6140 Fax (727) 442-5699
www.onicon.com E-mail: sales@onicon.com
FLOW METER WIRING INFORMATION
User Connections for Models with Frequency Output
Models: F-1100, F-1200, FB-1200 & F-1300
Wiring Information
WIRE COLOR CODE NOTES
(+) 24 ± 4 V AC/DC
supply voltage
RED
*
BLACK
(–) Common ground
(Common with pipe ground)
Connect to power supply
negative
GREEN
(+) Frequency output signal:
0-15 V peak pulse
GRAY
VIOLET
Dry contact directional
output - indicates
flow direction
Contact closed when flow
is in direction of arrow
on meter
DIAGNOSTIC SIGNALS
ORANGE
Bottom turbine frequency
WHITE
Top turbine frequency
These signals are for
diagnostic purposes -
connect to local display
or BTU meter
Connect to power supply
positive
F-1100
Single Turbine
F-1300
Inline
F-1200
Dual Turbine
FB-1200
Bi-Directional
FB-1200 Wiring Diagram
Connections to ONICON Display or BTU Meter
F-1100 / F-1200 / F-1300 Wiring Diagram
Flow Meter Connections to ONICON Display or BTU Meter
NOTES:
*
1. Serial Numbers 115691 and earlier require 24 VDC. Serial Numbers 115692 and higher
can accept 24 V AC/DC.
2. Black wire is common with the pipe (typically earth ground).
3. For ONICON display module or BTU meter, connect all wires provided. Refer to wiring diagram
provided with display or BTU meter.
FLOW METER
FLOW METER
RED
GREEN
BLACK
WHITE
ORANGE
GRAY
VIOLET
+ 24 V
FREQUENCY INPUT
GROUND
TOP TURBINE
BOTTOM TURBINE
DIRECTIONAL
CONTACTS
ONICON Display
or BTU Meter
RED
GREEN
BLACK
WHITE
ORANGE
+ 24 V
FREQUENCY INPUT
GROUND
TOP TURBINE
BOTTOM TURBINE
ONICON Display
or BTU Meter
F-1200 only
Output frequency is typically
below 200 Hz, but can be
up to 300 Hz
SHIELD
SHIELD
0271 04-12
