System-10-P1 Manual 09/15 - 0656-11 / 18320 A - 1 8
BTU COMPUTER
BOARD
EXPANSION SLOTS FOR
1. COMMUNICATIONS BOARD
2. ANALOG OUTPUT BOARD
POWER SUPPLY
Standard: 120 VAC
Optional: 24 VAC

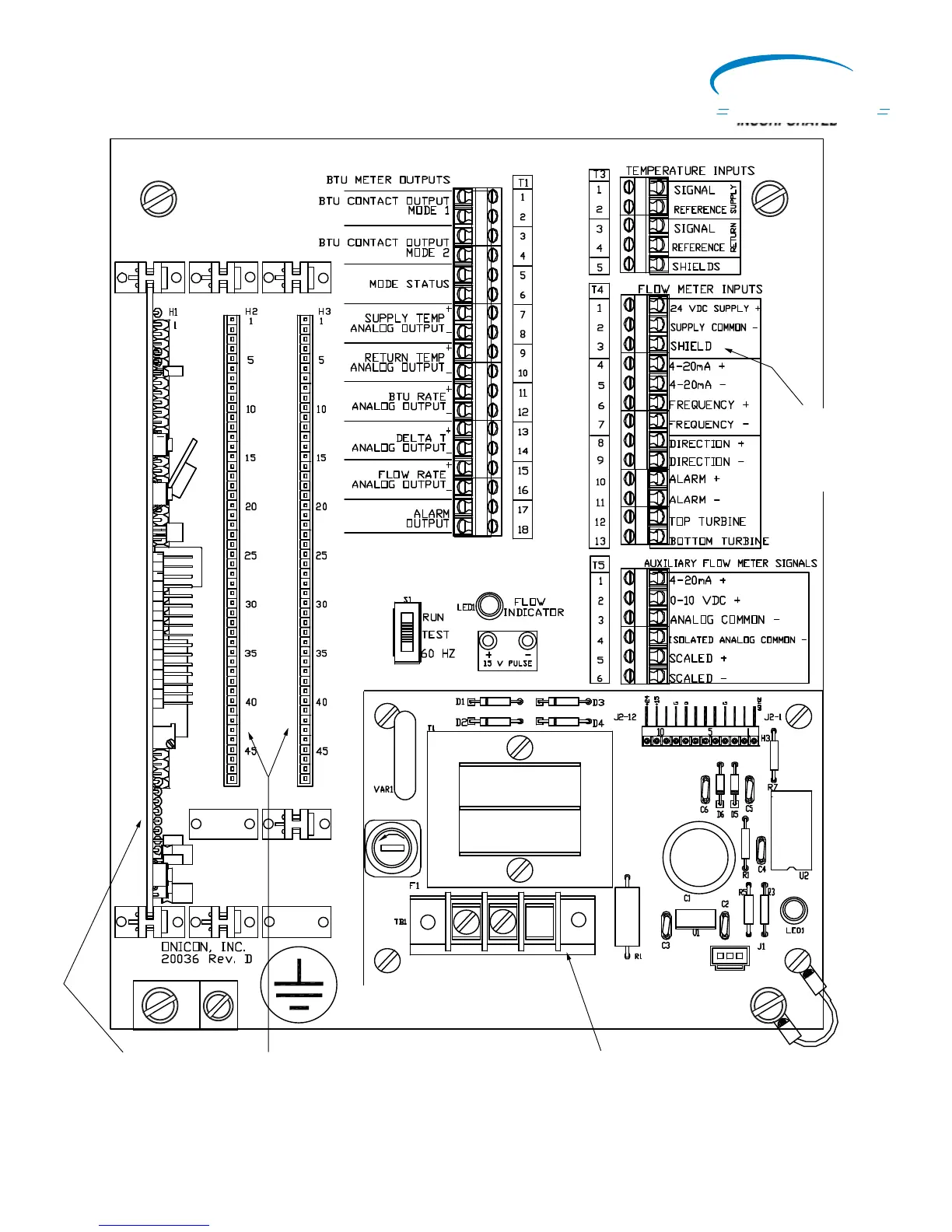

SYSTEM-10 BTU METER MOTHER BOARD LAYOUT
1500 North Belcher Road, Clearwater, FL 33765 • Tel (727) 447-6140 • Fax (727) 442-5699
www.onicon.com • customerservice@onicon.com
07-10
0398-5
CONNECTION
POINT FOR
FLOW METER
SHIELD
L1 N Not Used
SYSTEM-10 BTU METER MOTHER BOARD
ON
I
CON
Flow and Energy Measurement
