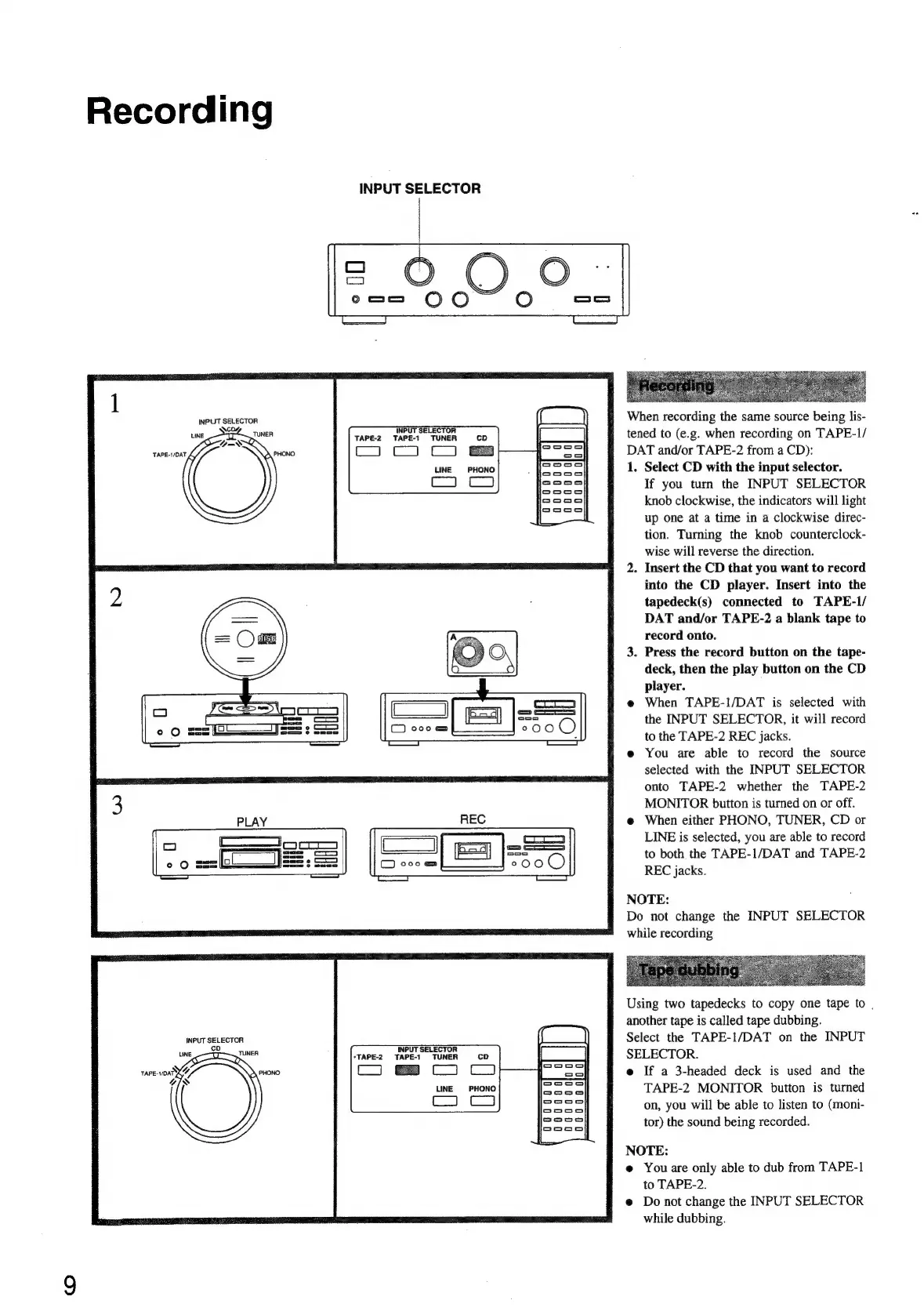

Onkyo A-9210 User Manual

Recording
INPUT SELECTOR
INPUT SELECTOR
TAPE-2. TAPE-t TUNER
TAPE-1/DAT
PLAY
co
= mene
oo sez lel: SS
INPUT SELECTOR
INPUT SELECTOR
*TAPE-2. TAPE-1 TUNER cD
LINE
ae). Ee]
When recording the same source being lis-
tened to (e.g. when recording on TAPE-1/
DAT and/or TAPE-2 from a CD):
1. Select CD with the input selector.
If you turn the INPUT SELECTOR
knob clockwise, the indicators will light
up one at a time in a clockwise direc-
tion. Turning the knob counterclock-
wise will reverse the direction.
2. Insert the CD that you want to record
into the CD player. Insert into the
tapedeck(s) connected to TAPE-1/
DAT and/or TAPE-2 a blank tape to
record onto.
3. Press the record button on the tape-
deck, then the play button on the CD
player.
e@ When TAPE-1/DAT is selected with
the INPUT SELECTOR, it will record
to the TAPE-2 REC jacks.
e@ You are able to record the source
selected with the INPUT SELECTOR
onto TAPE-2 whether the TAPE-2
MONITOR button is turned on or off.
e When either PHONO, TUNER, CD or
LINE is selected, you are able to record
to both the TAPE-1/DAT and TAPE-2
REC jacks.
NOTE:
Do not change the INPUT SELECTOR
while recording
Using two tapedecks to copy one tape to .
another tape is called tape dubbing.
Select the TAPE-1/DAT on the INPUT
SELECTOR.
e If a 3-headed deck is used and the
TAPE-2 MONITOR button is turned
on, you will be able to listen to (moni-
tor) the sound being recorded.
NOTE:
e You are only able to dub from TAPE-1
to TAPE-2.
e Do not change the INPUT SELECTOR
while dubbing.

Onkyo A-9210 Specifications

Power

power output	40 watts per channel at 8 ohms
power output (DIN)	2 x 60 watts at 4 ohms, 2 x 50 watts at 8 ohms

Audio Performance

total harmonic distortion	0.08% at rated power
IM distortion	0.08% at rated power
damping factor	150 at 8 ohms

Frequency and Sensitivity

frequency response	15 Hz—50 kHz +1 dB
phono input sensitivity/impedance	2.5 mV/50 kohms
tuner/CD/line input sensitivity/impedance	150 mV/25 kohms

Controls

bass control	+8 dB at 100 Hz
treble control	+8 dB at 10 kHz
loudness control	+8 dB at 100 Hz, +3 dB at 10 kHz

Signal to Noise Ratio

phono SNR	84 dB (5 mV input)
source direct SNR	104 dB (0.5 V input)

General Specifications

power supply (European and Australian models)	AC 230 V, 50 Hz
power supply (Worldwide models)	AC 120 V and 220 V switchable, 50 Hz/60 Hz
dimensions	455 (W) x 120 (H) x 332 (D) mm

Remote Control

transmitter	Infrared
signal range	Approx. 5 meters
power supply	Two “AA” batteries (1.5 V x 2)

Weight and Dimensions

weight	7.1 kg
remote control dimensions	55 (W) x 18 (H) x 194 (D) mm
remote control weight	100 grams
