Onkyo A-9210 User Manual

Making
system
connections
e
Do
not
plugin
the
power
cord
until
all
connections
have
been
made.
e Oneach pair of input jacks, the lower jack (marked R) corresponds to the right channel, and the upper jack (marked L) to the
left channel.
e
Please
refer
to
the
instruction
manual
of
each
component
when
making
any
connections.

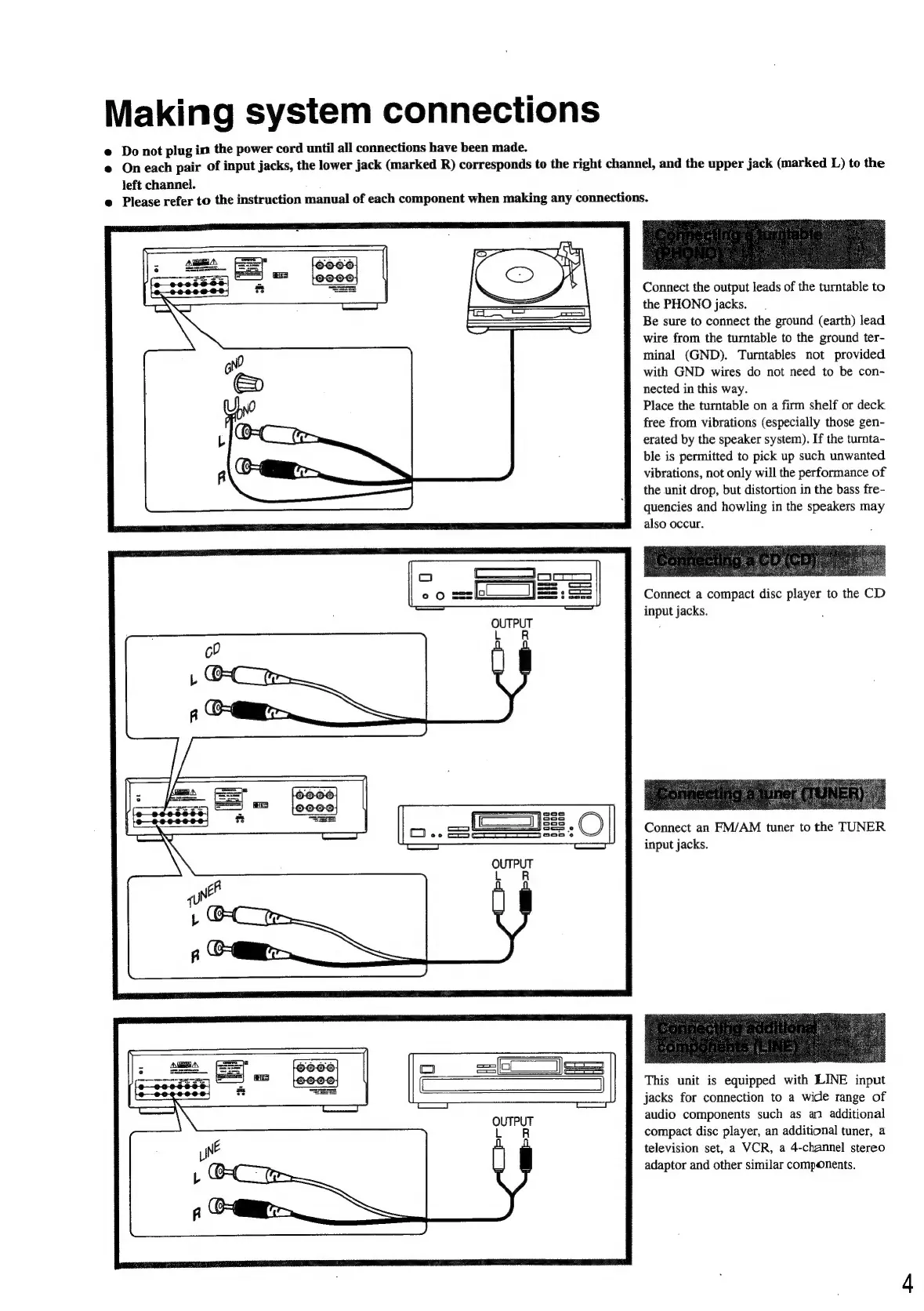

Connect the output leads of the turntable to
the PHONO jacks.
Be sure to connect the ground (earth) lead
wire from the turntable to the ground ter-
minal (GND). Turntables not provided
with GND wires do not need to be con-
nected in this way.
Place the turntable on a firm shelf or deck
free from vibrations (especially those gen-
erated by the speaker system). If the turnta-
ble is permitted to pick up such unwanted
vibrations, not only will the performance of
the unit drop, but distortion in the bass fre-
quencies and howling in the speakers may
also occur.
Connect a compact disc player to the CD
input jacks.
Connect an FM/AM tuner to the TUNER
input jacks.
This unit is equipped with LINE input
jacks for connection to a wicle range of
audio components such as ari additional
compact disc player, an additional tuner, a
television set, a VCR, a 4-channel stereo
adaptor and other similar components.

Onkyo A-9210 Specifications

Power

power output	40 watts per channel at 8 ohms
power output (DIN)	2 x 60 watts at 4 ohms, 2 x 50 watts at 8 ohms

Audio Performance

total harmonic distortion	0.08% at rated power
IM distortion	0.08% at rated power
damping factor	150 at 8 ohms

Frequency and Sensitivity

frequency response	15 Hz—50 kHz +1 dB
phono input sensitivity/impedance	2.5 mV/50 kohms
tuner/CD/line input sensitivity/impedance	150 mV/25 kohms

Controls

bass control	+8 dB at 100 Hz
treble control	+8 dB at 10 kHz
loudness control	+8 dB at 100 Hz, +3 dB at 10 kHz

Signal to Noise Ratio

phono SNR	84 dB (5 mV input)
source direct SNR	104 dB (0.5 V input)

General Specifications

power supply (European and Australian models)	AC 230 V, 50 Hz
power supply (Worldwide models)	AC 120 V and 220 V switchable, 50 Hz/60 Hz
dimensions	455 (W) x 120 (H) x 332 (D) mm

Remote Control

transmitter	Infrared
signal range	Approx. 5 meters
power supply	Two “AA” batteries (1.5 V x 2)

Weight and Dimensions

weight	7.1 kg
remote control dimensions	55 (W) x 18 (H) x 194 (D) mm
remote control weight	100 grams
