Onkyo A-9210 User Manual

SPEAKER A
SPEAKER B R ch.
SNPUT OUTPUT
SPEAKER A
Lech.
CAUTION: SPEAKER IMPEDANCE
Aor B : 4 ohms min./speaker
A+B :8 ohms min./speaker
SPEAKER B
Loch
Pani

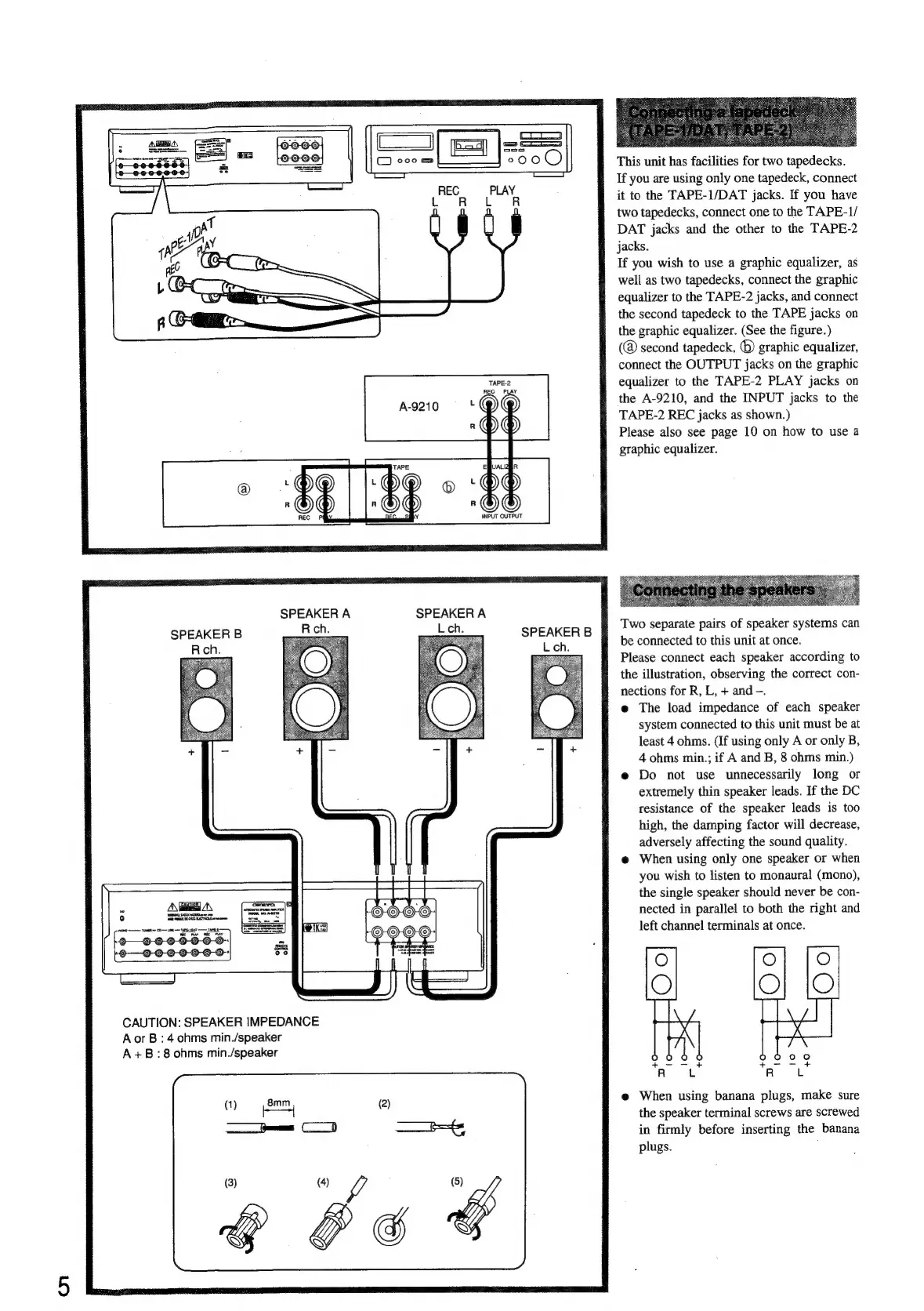

This unit has facilities for two tapedecks.
If you are using only one tapedeck, connect
it to the TAPE-1/DAT jacks. If you have
two tapedecks, connect one to the TAPE-1/
DAT jacks and the other to the TAPE-2
jacks.
If you wish to use a graphic equalizer, as
well as two tapedecks, connect the graphic
equalizer to the TAPE-2 jacks, and connect
the second tapedeck to the TAPE jacks on
the graphic equalizer. (See the figure.)
(@ second tapedeck, (6) graphic equalizer,
connect the OUTPUT jacks on the graphic
equalizer to the TAPE-2 PLAY jacks on
the A-9210, and the INPUT jacks to the
TAPE-2 REC jacks as shown.)
Please also see page 10 on how to use a
graphic equalizer.
Two separate pairs of speaker systems can
be connected to this unit at once.
Please connect each speaker according to
the illustration, observing the correct con-
nections for R, L, + and -.
e The load impedance of each speaker
system connected to this unit must be at
least 4 ohms. (If using only A or only B,
4 ohms min.; if A and B, 8 ohms min.)
e Do not use unnecessarily long or
extremely thin speaker leads. If the DC
resistance of the speaker leads is too
high, the damping factor will decrease,
adversely affecting the sound quality.
e When using only one speaker or when
you wish to listen to monaural (mono),
the single speaker should never be con-
nected in parallel to both the right and
left channel terminals at once.
e@ When using banana plugs, make sure
the speaker terminal screws are screwed
in firmly before inserting the banana
plugs.

Onkyo A-9210 Specifications

Power

power output	40 watts per channel at 8 ohms
power output (DIN)	2 x 60 watts at 4 ohms, 2 x 50 watts at 8 ohms

Audio Performance

total harmonic distortion	0.08% at rated power
IM distortion	0.08% at rated power
damping factor	150 at 8 ohms

Frequency and Sensitivity

frequency response	15 Hz—50 kHz +1 dB
phono input sensitivity/impedance	2.5 mV/50 kohms
tuner/CD/line input sensitivity/impedance	150 mV/25 kohms

Controls

bass control	+8 dB at 100 Hz
treble control	+8 dB at 10 kHz
loudness control	+8 dB at 100 Hz, +3 dB at 10 kHz

Signal to Noise Ratio

phono SNR	84 dB (5 mV input)
source direct SNR	104 dB (0.5 V input)

General Specifications

power supply (European and Australian models)	AC 230 V, 50 Hz
power supply (Worldwide models)	AC 120 V and 220 V switchable, 50 Hz/60 Hz
dimensions	455 (W) x 120 (H) x 332 (D) mm

Remote Control

transmitter	Infrared
signal range	Approx. 5 meters
power supply	Two “AA” batteries (1.5 V x 2)

Weight and Dimensions

weight	7.1 kg
remote control dimensions	55 (W) x 18 (H) x 194 (D) mm
remote control weight	100 grams
