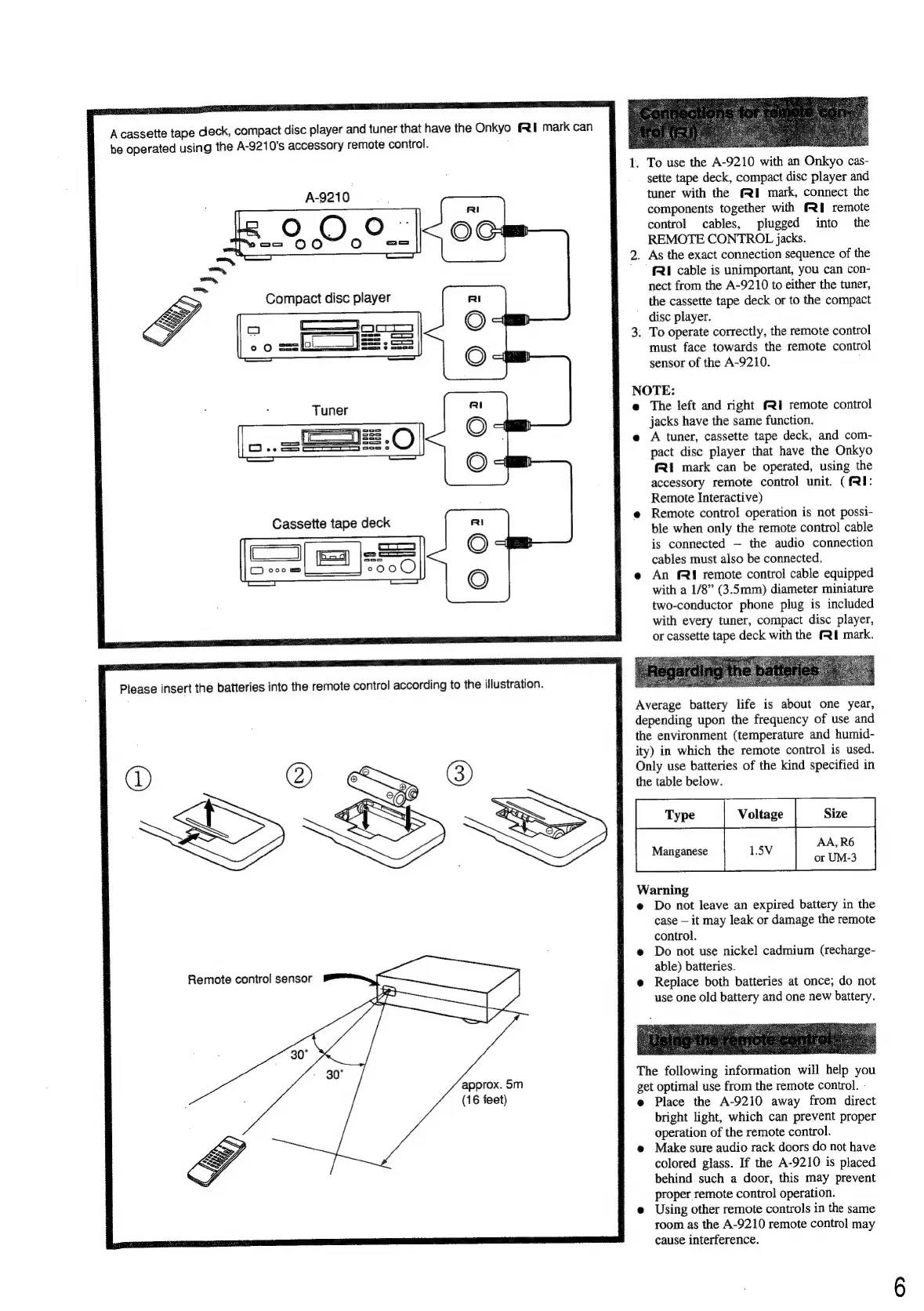

Onkyo A-9210 User Manual

Acassette
tape
deck,
compact
disc
player
and
tuner
that
have
the
Onkyo
RI
mark
can
be
operated
using
the
A-9210's
accessory
remote
control.
Please
insert
the
batteries
into
the
remote
control
according
to
the
illustration.
®
Oo
&,
ZS
Remote control sensor
approx. 5m
(16 feet)
To use the A-9210 with an Onkyo cas-
sette tape deck, compact disc player and
tuner with the fl mark, connect the
components together with FRI remote
control cables, plugged into the
REMOTE CONTROL jacks.
. As the exact connection sequence of the
FRI cable is unimportant, you can con-
nect from the A-9210 to either the tuner,
the cassette tape deck or to the compact
disc player.
. To operate correctly, the remote control
must face towards the remote control
sensor of the A-9210.
NOTE:
The left and right I remote control
jacks have the same function.
A tuner, cassette tape deck, and com-
pact disc player that have the Onkyo
fR1 mark can be operated, using the
accessory remote control unit. (FRI:
Remote Interactive)
Remote control operation is not possi-
ble when only the remote control cable
is connected — the audio connection
cables must also be connected.
An fl remote control cable equipped
with a 1/8” (3.5mm) diameter miniature
two-conductor phone plug is included
with every tuner, compact disc player,
or cassette tape deck with the FI mark.
Average battery life is about one year,
depending upon the frequency of use and
the environment (temperature and humid-
ity) in which the remote control is used.
Only use batteries of the kind specified in
the table below.
Vounge | Size _|
AA, R6
ve eee
Warning
Do not leave an expired battery in the
case — it may leak or damage the remote
control.
Do not use nickel cadmium (recharge-
able) batteries.
Replace both batteries at once; do not
use one old battery and one new battery.
The following information will help you
get optimal use from the remote control. -
Place the A-9210 away from direct
bright light, which can prevent proper
operation of the remote control.
Make sure audio rack doors do not have
colored glass. If the A-9210 is placed
behind such a door, this may prevent
proper remote control operation.
Using other remote controls in the same
room as the A-9210 remote control may
cause interference.

Onkyo A-9210 Specifications

Power

power output	40 watts per channel at 8 ohms
power output (DIN)	2 x 60 watts at 4 ohms, 2 x 50 watts at 8 ohms

Audio Performance

total harmonic distortion	0.08% at rated power
IM distortion	0.08% at rated power
damping factor	150 at 8 ohms

Frequency and Sensitivity

frequency response	15 Hz—50 kHz +1 dB
phono input sensitivity/impedance	2.5 mV/50 kohms
tuner/CD/line input sensitivity/impedance	150 mV/25 kohms

Controls

bass control	+8 dB at 100 Hz
treble control	+8 dB at 10 kHz
loudness control	+8 dB at 100 Hz, +3 dB at 10 kHz

Signal to Noise Ratio

phono SNR	84 dB (5 mV input)
source direct SNR	104 dB (0.5 V input)

General Specifications

power supply (European and Australian models)	AC 230 V, 50 Hz
power supply (Worldwide models)	AC 120 V and 220 V switchable, 50 Hz/60 Hz
dimensions	455 (W) x 120 (H) x 332 (D) mm

Remote Control

transmitter	Infrared
signal range	Approx. 5 meters
power supply	Two “AA” batteries (1.5 V x 2)

Weight and Dimensions

weight	7.1 kg
remote control dimensions	55 (W) x 18 (H) x 194 (D) mm
remote control weight	100 grams
