Onkyo A-9210 User Manual

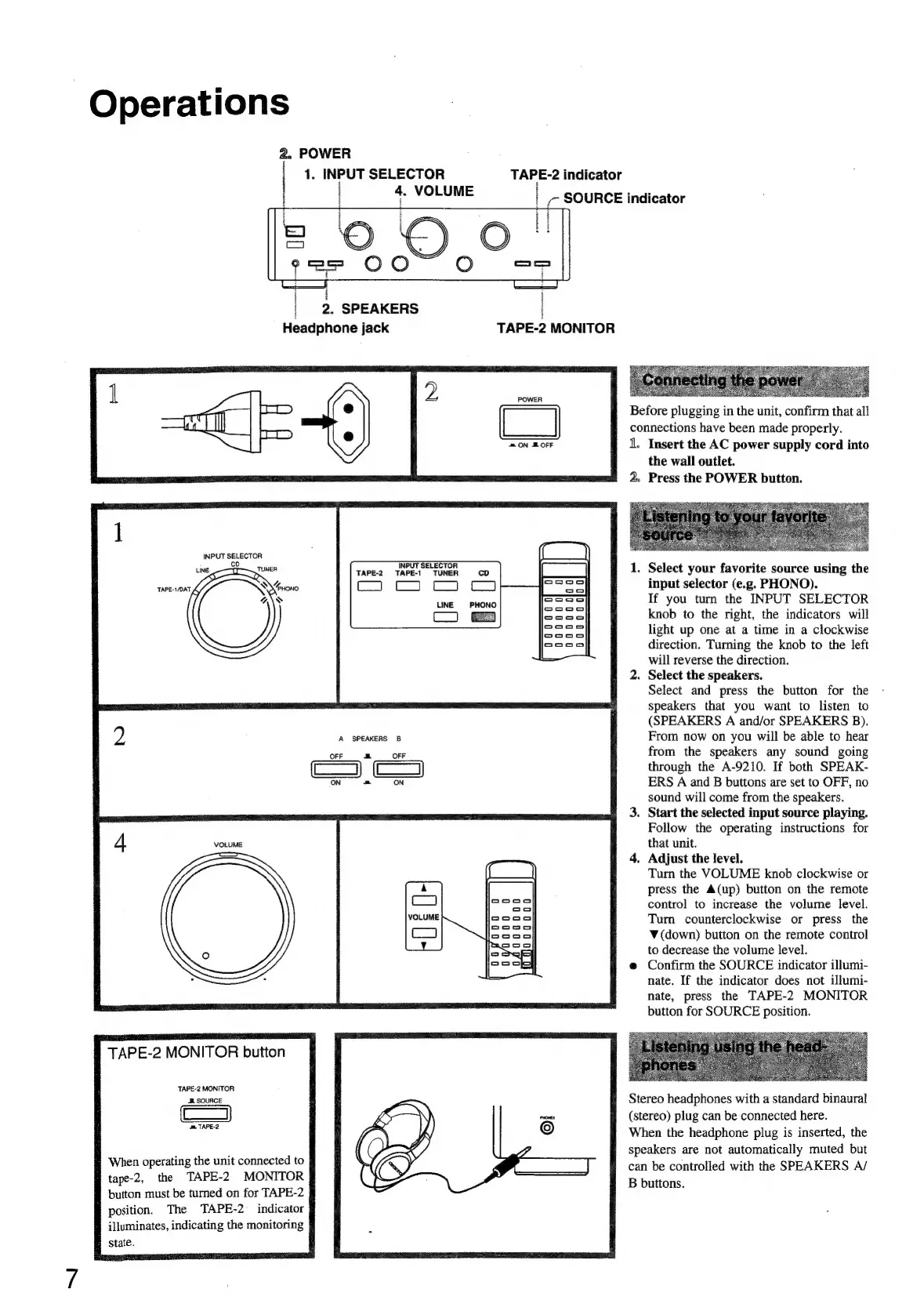

Operations
2. POWER
1. INPUT SELECTOR
4. VOLUME
i
TAPE-2 indicator
INPUT SELECTOR
INPUT SELECTOR
TAPE-2 TAPE-1 TUNER co
(2): (ES SESE
LINE
A SPEAKERS B
VOLUME
TAPE-2 MONITOR button
TAPE-2 MONITOR
RB SOURCE
m™ TAPE-2
When operating the unit connected to
tape-2, the TAPE-2 MONITOR
button must be turned on for TAPE-2
position. The TAPE-2° indicator
illuminates, indicating the monitoring §
state.
| 77 SOURCE indicator
Before plugging in the unit, confirm that all
connections have been made properly.
1. Insert the AC power supply cord into
the wall outlet.
Press the POWER button.
2.
e
Select your favorite source using the
input selector (e.g. PHONO).
If you turn the INPUT SELECTOR
knob to the right, the indicators will
light up one at a time in a clockwise
direction. Turning the knob to the left
will reverse the direction.
Select the speakers.
Select and press the button for the
speakers that you want to listen to
(SPEAKERS A and/or SPEAKERS B).
From now on you will be able to hear
from the speakers any sound going
through the A-9210. If both SPEAK-
ERS A and B buttons are set to OFF, no
sound will come from the speakers.
. Start the selected input source playing.
Follow the operating instructions for
that unit.
. Adjust the level.
Turn the VOLUME knob clockwise or
press the A(up) button on the remote
control to increase the volume level.
Turn counterclockwise or press the
V(down) button on the remote control
to decrease the volume level.
Confirm the SOURCE indicator illumi-
nate. If the indicator does not illumi-
nate, press the TAPE-2 MONITOR
button for SOURCE position.
NN
Stereo headphones with a standard binaural
(stereo) plug can be connected here.
When the headphone plug is inserted, the
speakers are not automatically muted but
can be controlled with the SPEAKERS A/
B buttons.

Onkyo A-9210 Specifications

Power

power output	40 watts per channel at 8 ohms
power output (DIN)	2 x 60 watts at 4 ohms, 2 x 50 watts at 8 ohms

Audio Performance

total harmonic distortion	0.08% at rated power
IM distortion	0.08% at rated power
damping factor	150 at 8 ohms

Frequency and Sensitivity

frequency response	15 Hz—50 kHz +1 dB
phono input sensitivity/impedance	2.5 mV/50 kohms
tuner/CD/line input sensitivity/impedance	150 mV/25 kohms

Controls

bass control	+8 dB at 100 Hz
treble control	+8 dB at 10 kHz
loudness control	+8 dB at 100 Hz, +3 dB at 10 kHz

Signal to Noise Ratio

phono SNR	84 dB (5 mV input)
source direct SNR	104 dB (0.5 V input)

General Specifications

power supply (European and Australian models)	AC 230 V, 50 Hz
power supply (Worldwide models)	AC 120 V and 220 V switchable, 50 Hz/60 Hz
dimensions	455 (W) x 120 (H) x 332 (D) mm

Remote Control

transmitter	Infrared
signal range	Approx. 5 meters
power supply	Two “AA” batteries (1.5 V x 2)

Weight and Dimensions

weight	7.1 kg
remote control dimensions	55 (W) x 18 (H) x 194 (D) mm
remote control weight	100 grams
