Onkyo A-SV210 User Manual

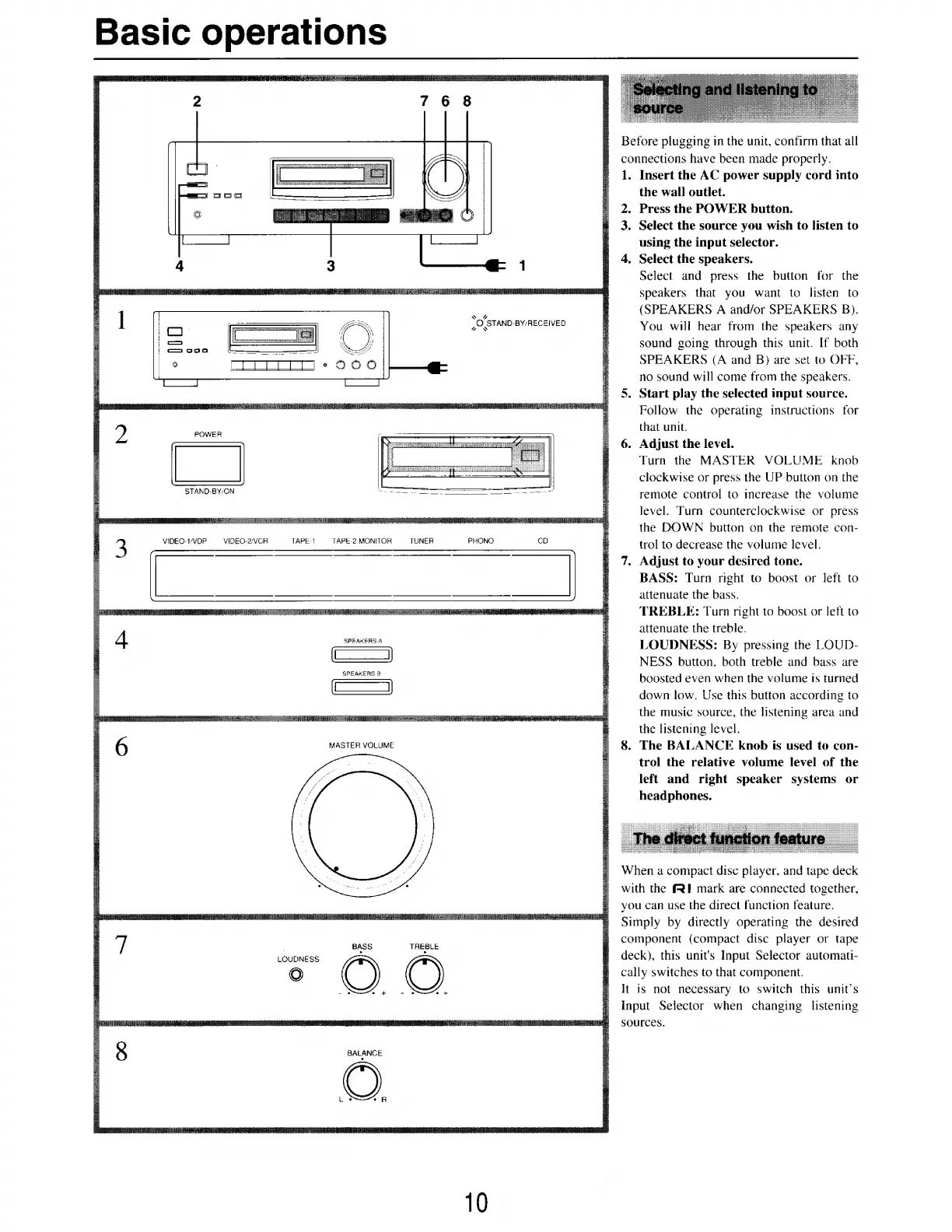

Basic operations
STAND-BY/ON
VIDEO-1VDP VIDEO-2/VCR TAPE-1 TAPE-2 MONITOR TUNER
SPEAKERS A
(_)
SPEAKERS 8
MASTER VOLUME
BASS TREBLE
LOUDNESS O O
- « o + - 8 e+
BALANCE
10
Before plugging in the unit, confirm that all
connections have been made properly.
1. Insert the AC power supply cord into
the wall outlet.
2. Press the POWER button.
3. Select the source you wish to listen to
using the input selector.
4. Select the speakers.
Select and press the button for the
speakers that you want to listen to
(SPEAKERS A and/or SPEAKERS B).
You will hear from the speakers any
sound going through this unit. If both
SPEAKERS (A and B) are set to OFF,
no sound will come from the speakers.
5. Start play the selected input source.
Follow the operating instructions for
that unit.
6. Adjust the level.
Turn the MASTER VOLUME knob
clockwise or press the UP button on the
remote control to increase the volume
level. Turn counterclockwise or press
the DOWN button on the remote con-
trol to decrease the volume level.
7. Adjust to your desired tone.
BASS: Turn right to boost or left to
attenuate the bass.
TREBLE: Turn right to boost or left to
attenuate the treble.
LOUDNESS: By pressing the LOUD-
NESS button, both treble and bass are
boosted even when the volume is turned
down low. Use this button according to
the music source, the listening area and
the listening level.
8. The BALANCE knob is used to con-
trol the relative volume level of the
left and right speaker systems or
headphones.
When a compact disc player, and tape deck
with the QI mark are connected together,
you can use the direct function feature.
Simply by directly operating the desired
component (compact disc player or tape
deck), this unit's Input Selector automati-
cally switches to that component.
It is not necessary to switch this unit’s
Input Selector when changing listening
sources.
