Onkyo A-SV210 User Manual

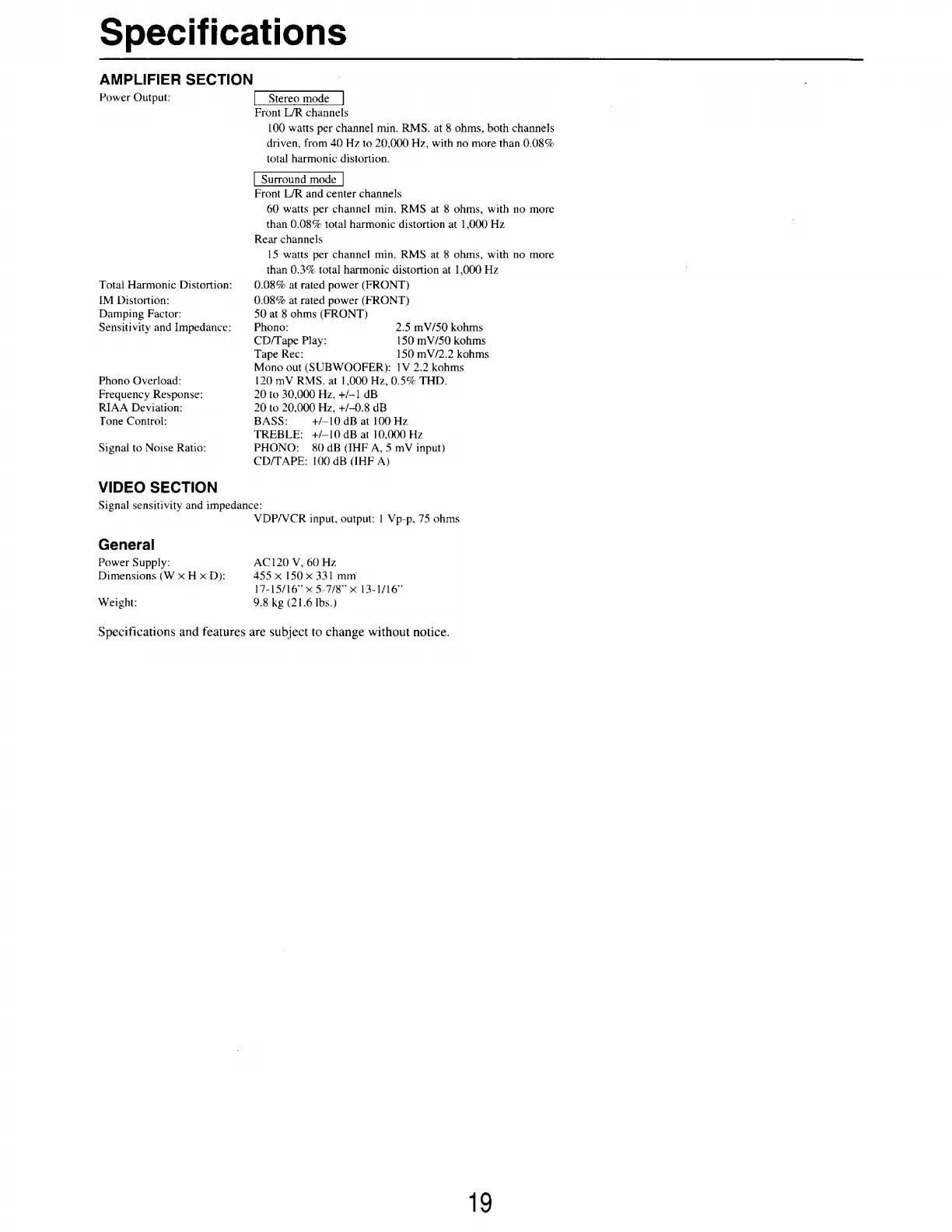

Specifications
AMPLIFIER SECTION
Power Output:
Total Harmonic Distortion:
IM Distortion:
Damping Factor:
Sensitivity and Impedance:
Phono Overload:
Frequency Response:
RIAA Deviation:
Tone Control:
Signal to Noise Ratio:
VIDEO SECTION
Front L/R channels
100 watts per channel min. RMS. at 8 ohms, both channels
driven, from 40 Hz to 20,000 Hz, with no more than 0.08%
total harmonic distortion.
Front L/R and center channels
60 watts per channel min. RMS at 8 ohms, with no more
than 0.08% total harmonic distortion at 1,000 Hz
Rear channels
15 watts per channel min, RMS at 8 ohms, with no more
than 0.3% total harmonic distortion at 1,000 Hz
0.08% at rated power (FRONT)
0.08% at rated power (FRONT)
50 at 8 ohms (FRONT)
Phono: 2.5 mV/50 kohms
CD/Tape Play: 150 mV/50 kohms
Tape Rec: 150 mV/2.2 kohms
Mono out (SUBWOOFER): 1V 2.2 kohms
120 mV RMS. at 1,000 Hz, 0.5% THD.
20 to 30,000 Hz, +/-1 dB
20 to 20,000 Hz, +/-0.8 dB
BASS: +/-10 dB at 100 Hz
TREBLE: +/-10 dB at 10,000 Hz
PHONO: 80 dB (THF A, 5 mV input)
CD/TAPE: 100 dB (IHF A)
Signal sensitivity and impedance:
General
Power Supply:
Dimensions (W x H x D):
Weight:
VDP/VCR input, output: | Vp-p, 75 ohms
AC120 V, 60 Hz
455 x 150 x 331 mm
17-15/16” * 5-7/8" x 13-1/16”
9.8 kg (21.6 lbs.)
Specifications and features are subject to change without notice.
19
