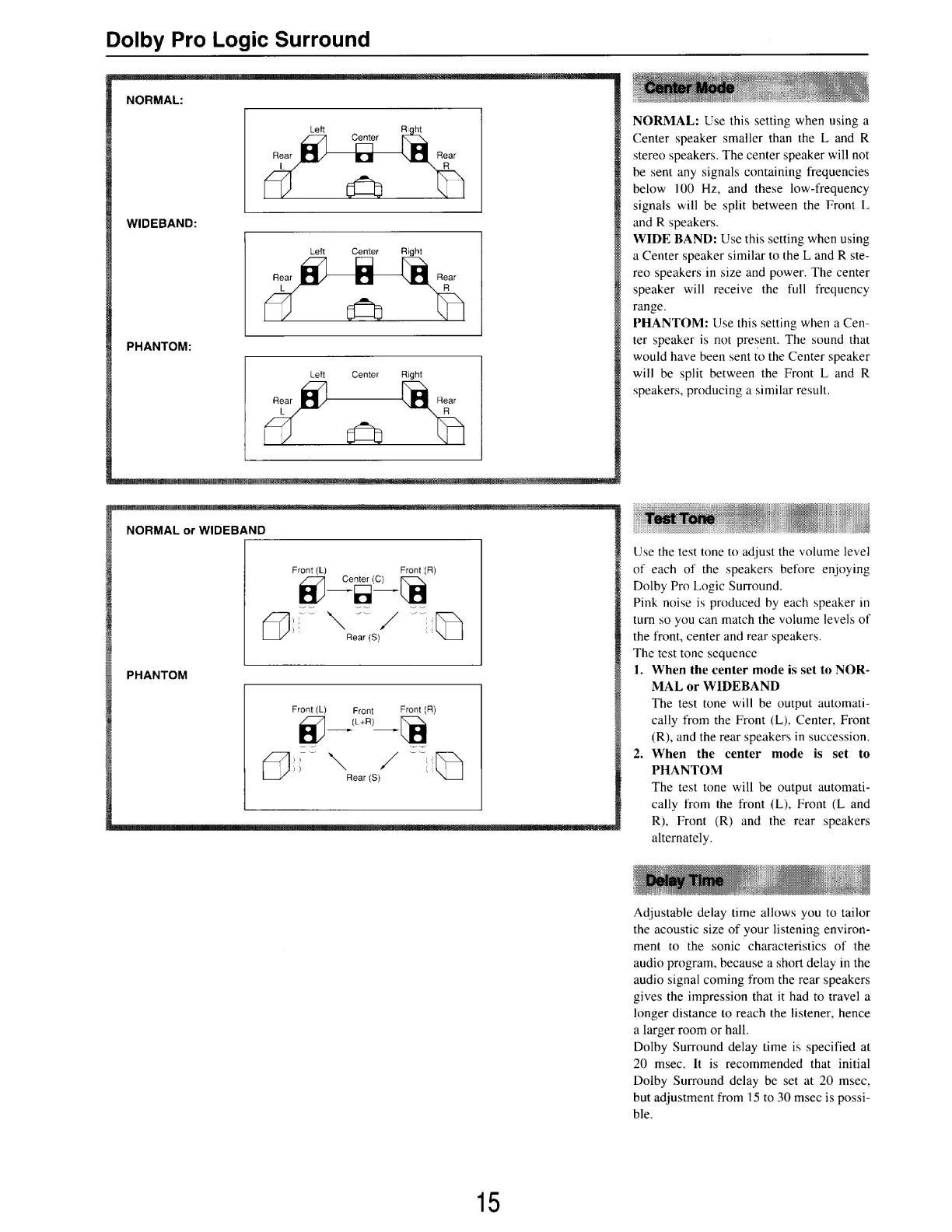

Dolby Pro Logic Surround
NORMAL:
Center
WIDEBAND:
Center
PHANTOM:
Center
NORMAL or WIDEBAND
Front (L) Front (R)
Center (C}
|
\ a “ae Rear {S$
PHANTOM
Front (L) Front Front (R)
a" -&
oon Nes fo
15
NORMAL: Use this setting when using a
Center speaker smaller than the L and R
stereo speakers. The center speaker wil! not
be sent any signals containing frequencies
below 100 Hz, and these low-frequency
signals will be split between the Front L
and R speakers.
WIDE BAND: Use this setting when using
a Center speaker similar to the L and R ste-
reo speakers in size and power. The center
speaker will receive the full frequency
range.
PHANTOM: Use this setting when a Cen-
ter speaker is not present. The sound that
would have been sent to the Center speaker
will be split between the Front L and R
speakers, producing a similar result.
Use the test tone to adjust the volume level
of each of the speakers before enjoying
Dolby Pro Logic Surround.
Pink noise is produced by each speaker in
turn so you can match the volume levels of
the front, center and rear speakers.
The test tone sequence
1. When the center mode is set to NOR-
MAL or WIDEBAND
The test tone will be output automati-
cally from the Front (L), Center, Front
(R), and the rear speakers in succession.
2. When the center mode is set to
PHANTOM
The test tone will be output automati-
cally from the front (L), Front (L and
R), Front (R) and the rear speakers
alternately.
Adjustable delay time allows you to tailor
the acoustic size of your listening environ-
ment to the sonic characteristics of the
audio program, because a short delay in the
audio signal coming from the rear speakers
gives the impression that it had to travel a
longer distance to reach the listener, hence
a larger room or hall.
Dolby Surround delay time is specified at
20 msec. It is recommended that initial
Dolby Surround delay be set at 20 msec,
but adjustment from 15 to 30 msec Is possi-
ble.
