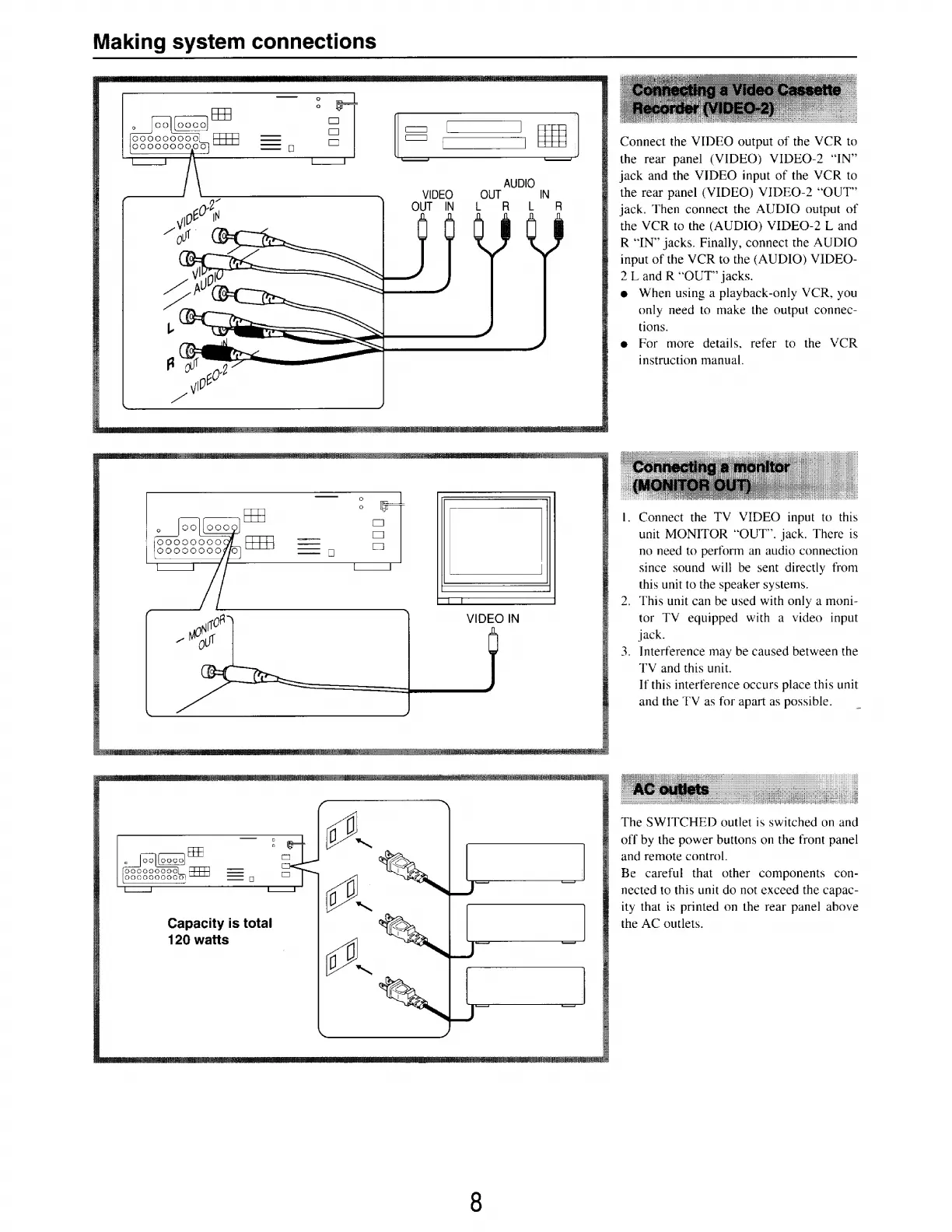

Making
system
connections
VIDEO
IN
f
HE
>
_foollogce|
OOCOO00000
AA
eaccaco00000go
Capacity
is
total
120
watts
Connect
the
VIDEO
output
of
the
VCR
to
the
rear
panel
(VIDEO)
VIDEO-2
“IN”
jack
and
the
VIDEO
input
of
the
VCR
to
the
rear
panel
(VIDEO)
VIDEO-2
“OUT”
jack.
Then
connect
the
AUDIO
output
of
the
VCR
to
the
(AUDIO)
VIDEO-2
L
and
R
“IN”
jacks.
Finally,
connect
the
AUDIO
input
of
the
VCR
to
the
(AUDIO)
VIDEO-
2
Land
R
“OUT”
jacks.
e
When
using
a
playback-only
VCR,
you
only
need
to
make
the
output
connec-
tions.
e
For
more
details,
refer
to
the
VCR
instruction
manual.
Connect
the
TV
VIDEO
input
to
this
unit
MONITOR
“OUT”.
jack.
There
is
no
need
to
perform
an
audio
connection
since
sound
will
be
sent
directly
from
this
unit
to
the
speaker
systems.
This
unit
can
be
used
with
only
a
moni-
tor
TV
equipped
with
a
video
input
jack.
3.
Interference
may
be
caused
between
the
TV
and
this
unit.
If
this
interference
occurs
place
this
unit
and
the
TV
as
for
apart
as
possible.
i)
The
SWITCHED
outlet
is
switched
on
and
off
by
the
power
buttons
on
the
front
panel
and
remote
control.
Be
careful
that
other
components
con-
nected
to
this
unit
do
not
exceed
the
capac-
ity
that
is
printed
on
the
rear
panel
above
the
AC
outlets.
