Connect the Speakers
Install
3
1
a
a
2
2
3
2
3
1
1/2˝
(12 mm)

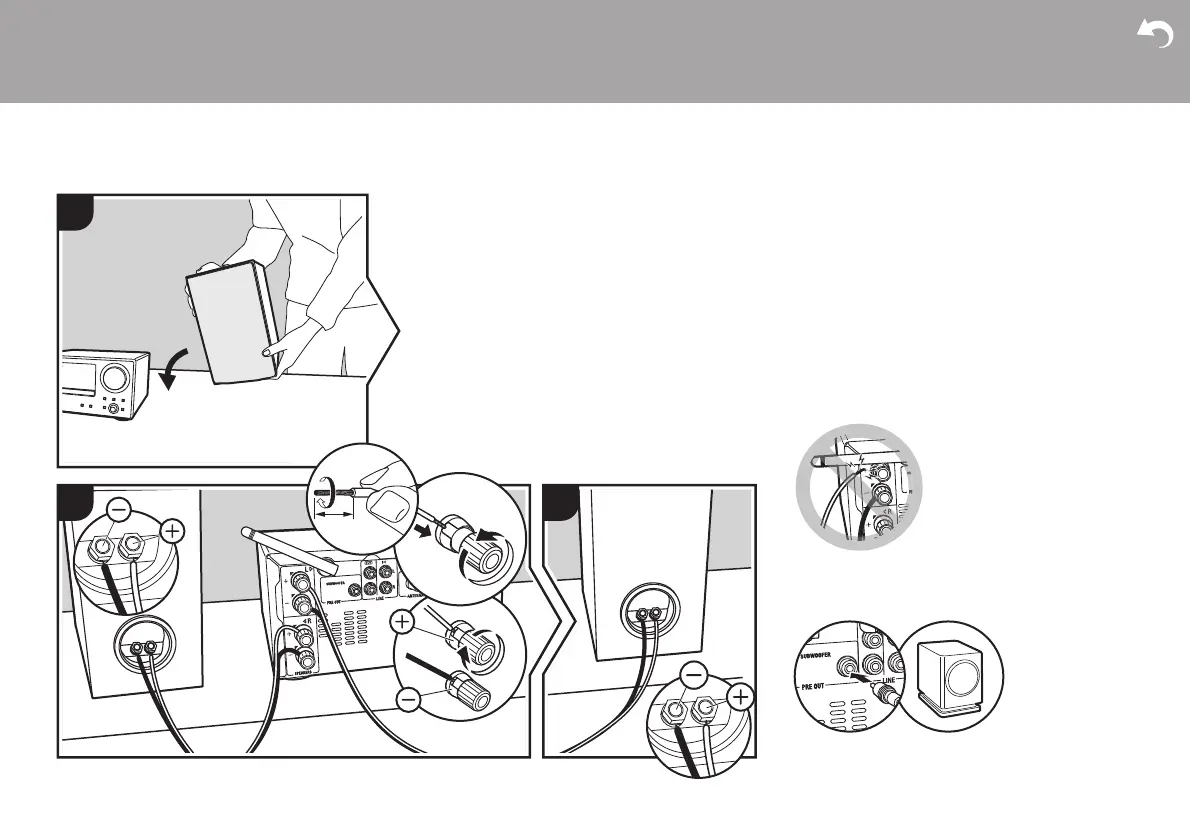

Refer to the illustration to connect the speaker system.
Twist the wires of the speaker cable tightly before
inserting into the SPEAKERS terminals. After inserting
the speaker cables, tighten the terminals firmly by
turning to the right. Make correct connection between
the unit’s jacks and speaker’s jacks (i to i and j to
j) for each channel. If connection is wrong, a bass
sound may become poor due to reverse phase. Also
make sure the exposed wires of the speaker cables do
not stick out of the speaker terminals when connecting.
If the exposed wires of the speaker cables touch the
rear panel or the i and s wires touch each other, the
protection circuit may be activated and the power may
turn off.
You can also connect a subwoofer with a built-in
amplifier to boost bass playback even more. Use a
subwoofer cable for connection.
a Speaker Cable

Onkyo CR-N775D Specifications

General

Receiver type	-
Input sensitivity	400 mV
Pre-out connectivity	Yes
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	- W
USB ports quantity	2
Digital audio optical in	1
Display	LCD
Apple docking	No
Product color	Black
Center speaker impedance	16 Ω
Connector contacts plating	Gold
Headphone connectivity	3.5 mm
Audio formats supported	ALAC, CBR, DSD, FLAC, MP3, MP3 VBR, MQA, WAV
Bluetooth version	4.1
Bluetooth profiles	A2DP, AVRCP
FM band range	87.5 - 108 MHz
Supported radio bands	DAB+, FM
Internet radio services supported	Deezer, Spotify, Tidal, TuneIn
Optical drive type	CD player
Disc types supported	CD, CD-R, CD-RW
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2.9 W
Power consumption (typical)	36 W
Package weight	3800 g
Cables included	AC
Package depth	276 mm
Package width	345 mm
Package height	235 mm

Weight and Dimensions

Depth	295 mm
Width	215 mm
Height	117 mm
Weight	2700 g
