DR-C500
DR-C500
M1
M2
M3
(6x)
M4
(2x)
M7
M8
M9
M10
M11
Z5
Z6

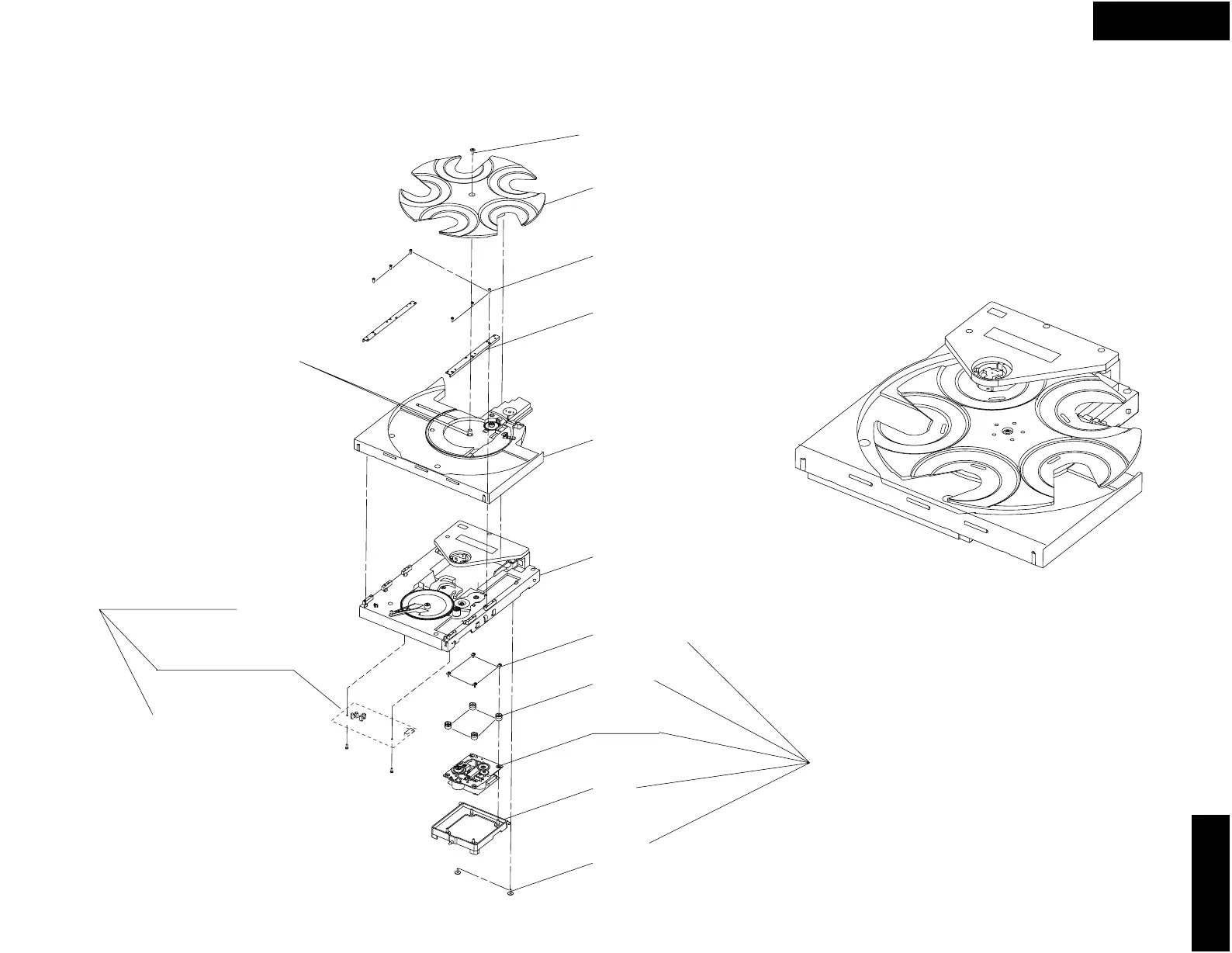

EXPLODED VIEWS OF DVD MECHANISM-1
DWG ASY CAROUSEL TC5E
DRIVER MOMENT
42 N/cm +/-2 N/cm
DRIVER MOMENT
42 N/cm +/-2 N/cm
Refer to DWG ASSY DRAWER
Refer to DWG ASSY BASE
Montage at latest
Not produse in series
PCB DRIVER BOARD
(2X) SCREW 3 x 8
(4x)
DRIVER MOMENT
42 N/cm +/-2 N/cm
(4x)
(2x)
DRIVER MOMENT
42 N/cm +/-2 N/cm
LUBRICANT GREASE
around the boss
and on the bottom area
