DR-C500
DR-C500
M21
M22
M23
M24
M25
(2x)
M26
(3x)
(2x)
(2x)
M27
M28
M29
M30
M31
M32
M33
M34
M35

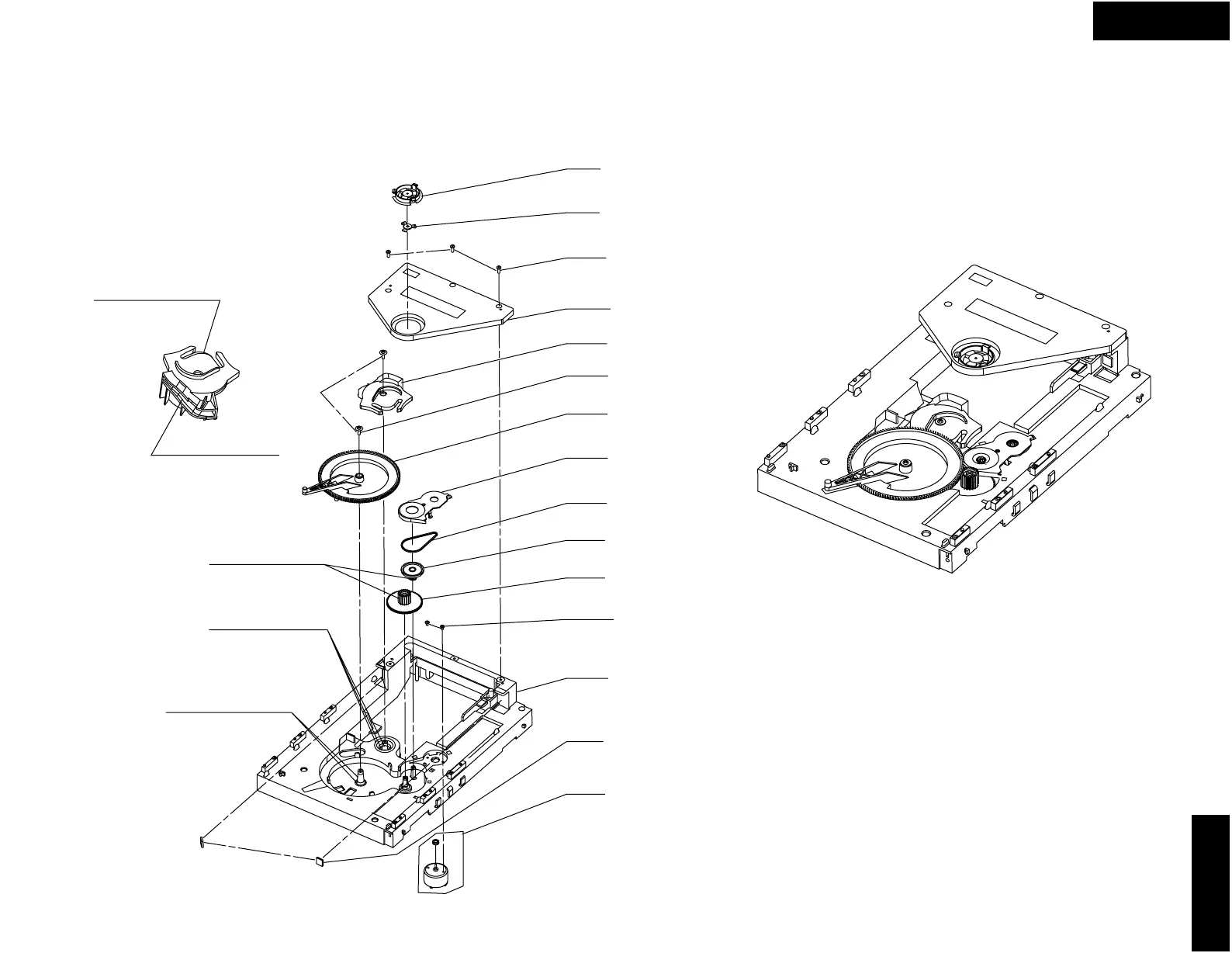

EXPLODED VIEWS OF DVD MECHANISM-2
DWG ASY BASE
CAM LIFTER
LUBRICANT GRASE
inside the curve
DRIVER MOMENT
42 N/cm +/- 2 N/cm
DRIVER MOMENT
42 N/cm +/- 2 N/cm
DRIVER MOMENT
30 N/cm +/- 5 N/cm
LUBRICANT GREASE
around the boss
and on the bottom area
LUBRICANT GREASE
around the boss
and on the top area
LUBRICANT GREASE
around the teeth
LUBRICANT GREASE
inside the curve
