Onkyo FR-V3 User Manual

Connecting
7
Notes
• Connecting the left and right speakers reversely or with
wrong polarities can cause unnatural or distorted sound.
• The load impedance of each speaker must be between 4
and 16 ohms. Connecting speakers with less than 4 ohms
impedance could cause damage to the unit amplifier.
• Do not connect the speaker cord to the L and R
connectors at the same time and do not connect more
than two speakers to the same speaker connectors.
• To prevent damage to circuits, never short-circuit the
positive (+) and negative (–) speaker wires.

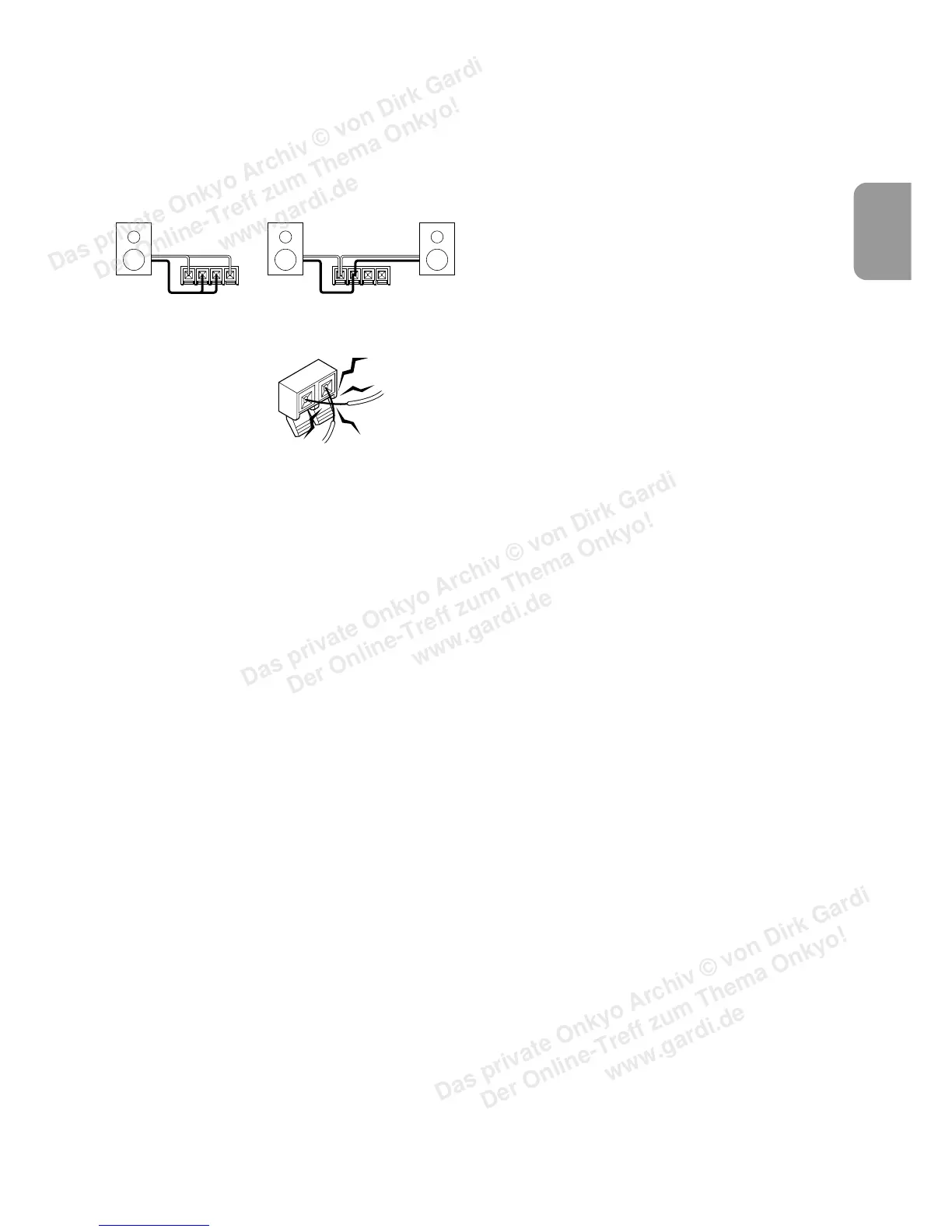

No!
+ R – – L +
+ R – – L +
No!No!
Das private Onkyo Archiv © von Dirk Gardi
Der Online-Treff zum Thema Onkyo!
www.gardi.de
Das private Onkyo Archiv © von Dirk Gardi
Der Online-Treff zum Thema Onkyo!
www.gardi.de
Das private Onkyo Archiv © von Dirk Gardi
Der Online-Treff zum Thema Onkyo!
www.gardi.de

Onkyo FR-V3 Specifications

Power

power supply	AC 230 V, 50 Hz AC 120 V, 60 Hz
power consumption	66 W

Amplifier Specifications

power output at 4 Ω 1kHz DIN	2 × 20 W
power output at 6 Ω 1kHz DIN	2 × 17 W
power output at 8 Ω 1kHz DIN	2 × 15 W
dynamic power at 4 Ω	2 × 24 W
dynamic power at 8 Ω	2 × 18 W

Tuner Specifications

tuning range	87.50 to 108.00 MHz (50 kHz steps)
usable sensitivity mono	12.8 dBf, 1.2 µV (75 Ω IHF) 1.0 µV (75 Ω DIN)
usable sensitivity stereo	18.0 dBf, 2.2 µV (75 Ω IHF) 25.0 µV (75 Ω DIN)

Weight and Dimensions

dimensions	205 × 154 × 356 mm
weight	5.5 kg
