Onkyo FR-V3 User Manual

8
REMOTE
CONTROL
RL
LINE
IN-1
LINE
IN-2
OUTPUT
(REC)
INPUT
(PLAY)
TAPE
R
(REC) (PLAY)
IN PUT OUT PUT
LINE IN
REMOTE
CONTROL
L
LINE
IN-1
LINE
IN-2
OUTPUT
(REC)
INPUT
(PLAY)
TAPE
OPTICAL
SPEAKERS
CAUTION: SPEAKER IMPEDANCE
4 OHMS MIN. / SPEAKER
+ R – – L +
FM
75Ω
REMOTE
CONTROL
DIGITAL INPUT
R
ANTENNA
L

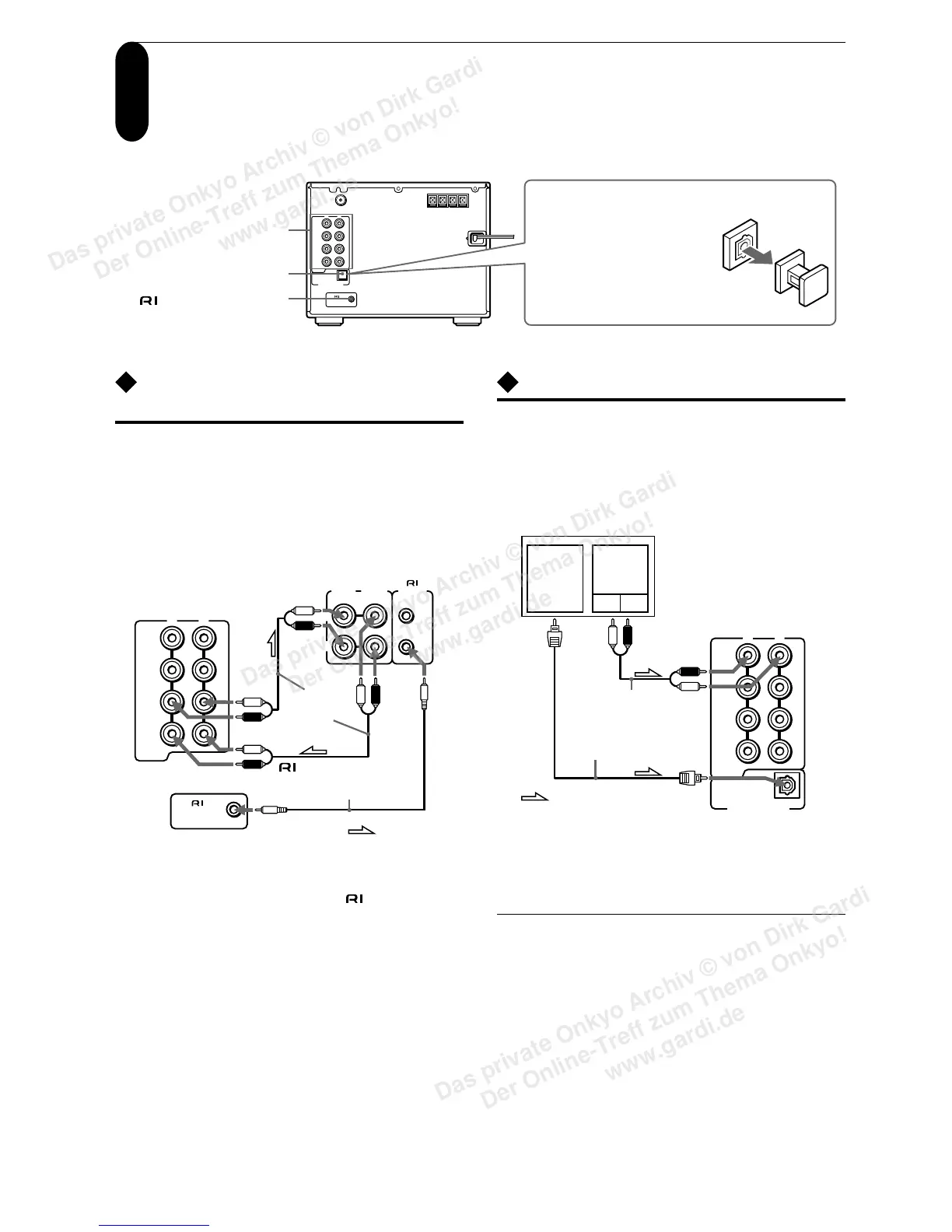

Audio/video equipment
Connect the white plugs of the audio cables to the L jacks
and connect the red plugs of the audio cables to the R jacks.
Tip
The source names appearing in
the display can be customized
to the connected component.
(See page 14 and 45.)
Jacks for analog
connections
Optical digital audio
input connector
REMOTE CONTROL
connector
Connecting an ONKYO stereo
cassette tape deck
The illustration below describes the connection with
an ONKYO stereo cassette tape deck.
To connect to other cassette tape deck, connect the TAPE
OUTPUT (REC) and INPUT (PLAY) jacks of the unit to the
INPUT (REC) and OUTPUT (PLAY) jacks of the cassette
tape deck, respectively.
What can you do with an ONKYO stereo cassette
tape deck by connecting with an
cable?
• An ONKYO stereo cassette tape deck can be operated
with the supplied remote controller.
• Both the units can be turned on by turning on either unit.
• When you start playing a tape, the unit input selector will
automatically be switched to the stereo cassette tape deck
(TAPE).
• Synchro recording operations (see page 39).
The unit
Audio
connection
cable
cable supplied with
the ONKYO stereo
cassette tape deck
: Signal flow
Connecting a DVD player
Analog connection is necessary in addition to the
optical digital audio connection. To connect to the
ONKYO DVD player, be sure to connect to the LINE
IN-1 jacks with the audio connection cable, not the
LINE IN-2 jacks.
About the OPTICAL DIGITAL INPUT
connector
An optical digital audio output equipped CD player,
satellite tuner, or DAT may be connected instead of a
DVD player with an optical fiber audio cable for digital
recording of them.
Digital
audio
output
Analog
audio
output
Audio connection
cable
Optical fiber
audio cable
: Signal flow
ONKYO stereo cassette
tape deck rear panel
The unit
DVD player
Protective cap for the optical digital audio
connector
Remove the protective cap before
you use the OPTICAL DIGITAL
INPUT connector. Please retain it
for future use. If you do not use
the optical digital audio connector,
make sure to replace the cap.
RL
LINE
IN-1
LINE
IN-2
OUTPUT
(REC)
INPUT
(PLAY)
TAPE
LR
OPTICAL
DIGITAL INPUT
Das private Onkyo Archiv © von Dirk Gardi
Der Online-Treff zum Thema Onkyo!
www.gardi.de
Das private Onkyo Archiv © von Dirk Gardi
Der Online-Treff zum Thema Onkyo!
www.gardi.de
Das private Onkyo Archiv © von Dirk Gardi
Der Online-Treff zum Thema Onkyo!
www.gardi.de

Onkyo FR-V3 Specifications

Power

power supply	AC 230 V, 50 Hz AC 120 V, 60 Hz
power consumption	66 W

Amplifier Specifications

power output at 4 Ω 1kHz DIN	2 × 20 W
power output at 6 Ω 1kHz DIN	2 × 17 W
power output at 8 Ω 1kHz DIN	2 × 15 W
dynamic power at 4 Ω	2 × 24 W
dynamic power at 8 Ω	2 × 18 W

Tuner Specifications

tuning range	87.50 to 108.00 MHz (50 kHz steps)
usable sensitivity mono	12.8 dBf, 1.2 µV (75 Ω IHF) 1.0 µV (75 Ω DIN)
usable sensitivity stereo	18.0 dBf, 2.2 µV (75 Ω IHF) 25.0 µV (75 Ω DIN)

Weight and Dimensions

dimensions	205 × 154 × 356 mm
weight	5.5 kg
