Onkyo FR-V3 User Manual

Connecting
9
About the LINE IN-1 and IN-2 jacks
In addition to the above examples, a laser disc player,
satellite broadcast tuner, or VCR may be also
connected. Connect analog audio output jacks to the
unit LINE IN-1 or IN-2 with the audio connection
cable.
Notes
Do not place any object on the unit as this is dangerous
because the ventilation slot may be blocked.
• There are some rules for digital recording (see page 52).
• The plugs of audio connection
cable must be connected securely.
Incomplete connection does not
reproduce the sound.
• Do not bundle the audio connection cables with the
speaker cords. This may impair the sound quality.
• If the TV screen and the unit interfere with each other, put
more distance between the speakers and TV set.
• When connecting the digital audio output of a DVD player
to the DIGITAL INPUT jack of the unit, set the DVD player
to PCM output. Some DVD players cannot be set to PCM;
in this case audio output is not possible, even when the
two units are connected.

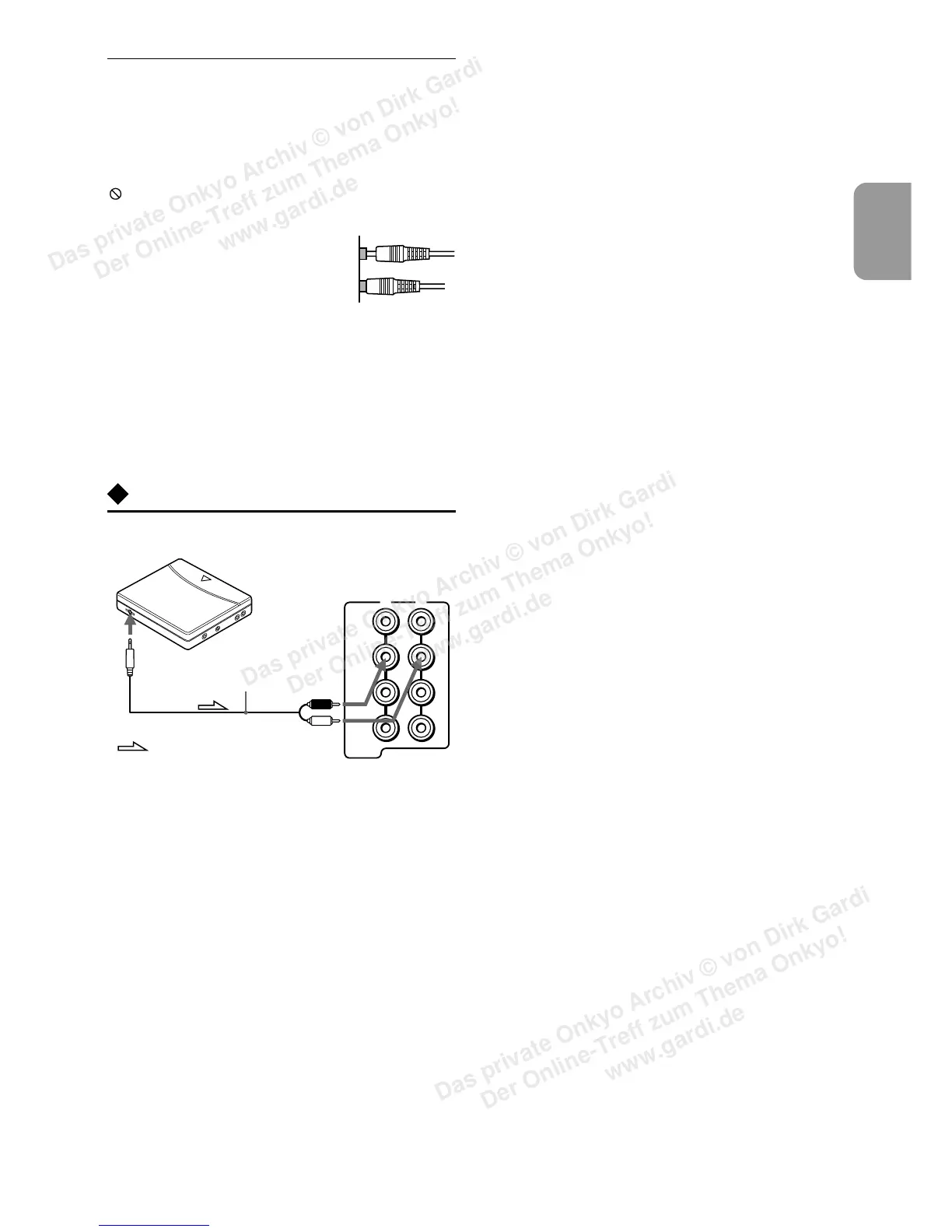

Connecting a portable MD player
Cross-refer to the portable MD player’s Instruction Manual.
Connection cable
NO
OK
:Signal flow
The unit
RL
LINE
IN-1
LINE
IN-2
INPUT
(PLAY)
OUTPUT
(REC)
TAPE
Das private Onkyo Archiv © von Dirk Gardi
Der Online-Treff zum Thema Onkyo!
www.gardi.de
Das private Onkyo Archiv © von Dirk Gardi
Der Online-Treff zum Thema Onkyo!
www.gardi.de
Das private Onkyo Archiv © von Dirk Gardi
Der Online-Treff zum Thema Onkyo!
www.gardi.de

Onkyo FR-V3 Specifications

Power

power supply	AC 230 V, 50 Hz AC 120 V, 60 Hz
power consumption	66 W

Amplifier Specifications

power output at 4 Ω 1kHz DIN	2 × 20 W
power output at 6 Ω 1kHz DIN	2 × 17 W
power output at 8 Ω 1kHz DIN	2 × 15 W
dynamic power at 4 Ω	2 × 24 W
dynamic power at 8 Ω	2 × 18 W

Tuner Specifications

tuning range	87.50 to 108.00 MHz (50 kHz steps)
usable sensitivity mono	12.8 dBf, 1.2 µV (75 Ω IHF) 1.0 µV (75 Ω DIN)
usable sensitivity stereo	18.0 dBf, 2.2 µV (75 Ω IHF) 25.0 µV (75 Ω DIN)

Weight and Dimensions

dimensions	205 × 154 × 356 mm
weight	5.5 kg
