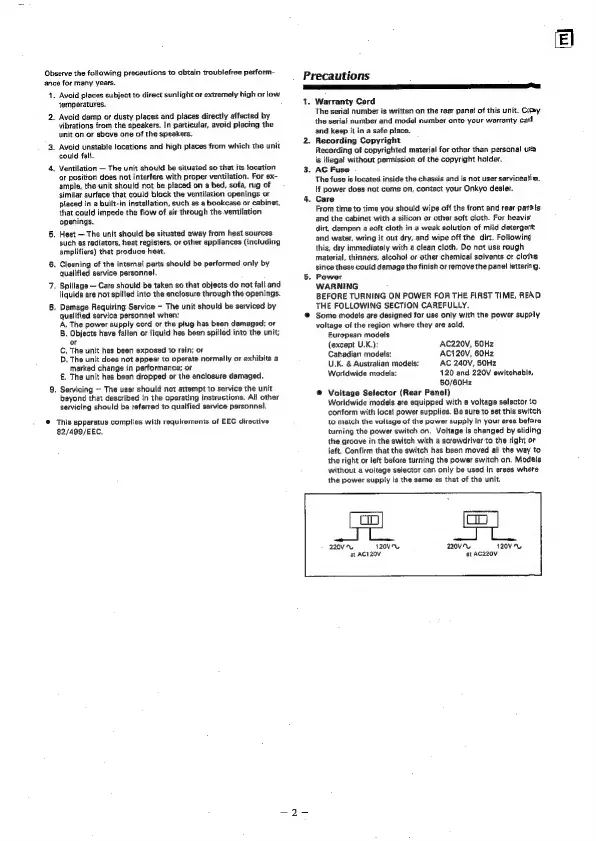

Onkyo Grand Integra User Manual

Observe the following precautions to obtain troublefree perform-
ance for many years.
1. Avoid places subject to direct sunlight or extremely high or low
temperatures.
2. Avoid damp or dusty places and places directly affected by
vibrations from the speakers. In particular, avoid placing the
unit on or above one of the speakers.
3. Avaid unstable locations and high places from which the unit
could falt.
4, Ventilation — The unit should be situated so that its tecation
oF position does not interfere with proper ventilation. For 6x-
ample, the unit should not be piaced on a bed, sofa, rug of
similar surface that could block the ventilation openings or
placed in a built-in instatlation, such as a bookcase or cabinet,
that could impede the flow of air through the ventilation
openings.
|. Heat — The unit should be situated away from heat sources
such as radiators, heat registers, or other appliances (including
amplifiers) that produce heat.
Cleaning of the internal parts should be performed only by
qualified service personnel.
Spillage — Care shoutd be taken so that objects do not fall and
liquids are not spilled into the enclosure through the openings.
8, Damage Requiring Service - The unit should be serviced by
quelified service personne! when:
A. The power supply cord or the plug has been damaged; or
B. Objects have fallen or liquid has been spilled into the unit;
or
C, The unit has been exposed to rain; or
D, The unit does not appear to operate normally or exhibits a
marked change in performance; or
£. The unit has been dropped or the enclosure damaged.
|. Servicing ~ The user should not attempt to service the unit
beyond that described in the operating instructions. Ali other
servicing should be referred to qualfied service personnel.
a
2
x
©
© This apparatus complies with requirements of EEC directive
82/499/EEC.
Precautions
tw Warranty Cerd
The serial number is written on the reer pane! of this unit. CoPey
the seria number and model number onto your warranty cad
and keep it in a safe place.
Recording Copyright
Recording of copyrighted material for other than personal us
is illegat without permission of the copyright holder.
AC Fuse
The fuse is located inside the chassis and is not user serviceall
!f power does not come on, contact your Onkyo dealer.
Care
From time to time you should wipe off the front and rear partis
and the cabinet with a silicon or other soft cloth. For heavier
dirt, dampen a soft cloth in a weak solution of mitd detergett
and water, wring it out dry, and wipe off the dirt. Following
this, dry immediately with a clean cloth, Do not use rough
material, thinners, alcohol or other chemical solvents or cloths
since these could damage the finish or remove the panel lettering.
Power
WARNING
BEFORE TURNING ON POWER FOR THE FIRST TIME, READ
THE FOLLOWING SECTION CAREFULLY.
Some models are designed for use only with the power supply
voltage of the region where they are sold.
European models
(except U.K.):
Canadian models:
U.K. & Australian modets:
Worldwide models:
AC220V, 50Hz
AC120V, 60Hz
AC 240V, 50H2
120 and 220V switchable,
50/60Hz
®@ Voltage Selector (Rear Panel)
Worldwide models are equipped with a voltage selector to
conform with loca! power supplies. Be sure to set this switch
to match the voltage of the power supply In your area befora
turning the power switch on. Voltage is changed by sliding
the groove in the switch with a screwdriver to the right or
left. Confirm that the switch has been moved all the way to
the right or left before turning the power switch on. Models
without a voltege selector can only be used in areas where
the power supply is the same as that of the unit.
OD Ob
120V
220vG
at ACIZ0V
220VU, 120%
at AC220V

Onkyo Grand Integra Specifications

Power Amplifier Section

impedance (phono MC)	110 1V/100 ohms
power output	1435 watts per channel
total harmonic distortion	0.008%

Dynamic Power

dynamic power at 4 ohms	240 watts
dynamic power at 2 ohms	155 watts
dynamic power at 8 ohms	310 watts

Frequency and Signal

frequency response CO, Tuner	2 Hz-50 kHz
signal to noise ratio (source direct)	104 dB
signal to noise ratio (phono MM)	89 dB

Weight and Dimensions

weight	30 kg, 66.1 lbs
dimensions (W x H x D)	477 mm x 183 mm x 453 mm
