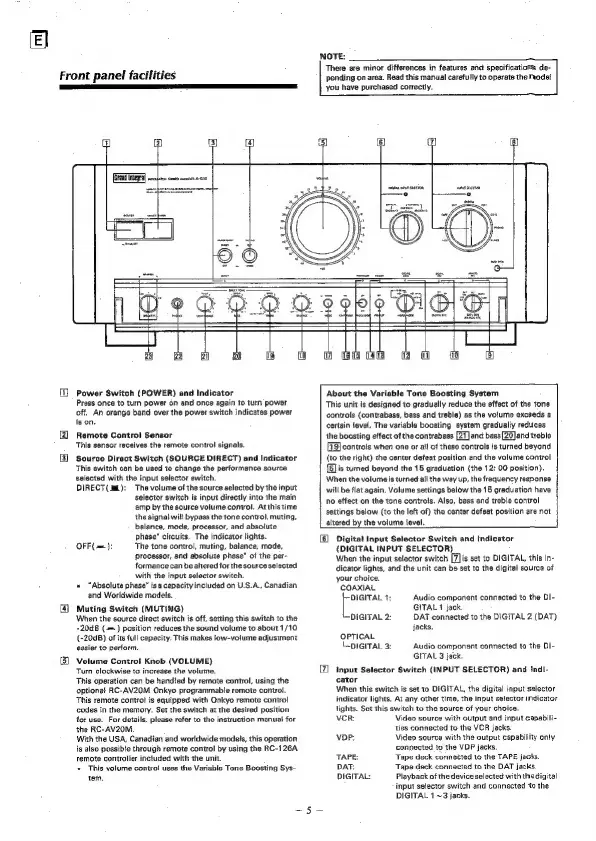

Front
panel
facilities
NOTE:
There
ate
minor
differences
in
features
and
specifications
de-
pending
on
area.
Read
this
manual
carefully
to
operate
the
raade!
you
have
purchased
correctly.
° °
Toe.
(Power
Switch
(POWER)
and
Indicator
Press
once
to
turn
power
on
and
once
again
to
turn
power
off.
An
orange
band
over
the
power
switch
indicates
power
is
on.
(@_
Remote
Control
Sensor
This
sensor
receives
the
remote
control
signals.
()
Source
Direct
Switch
(SOURCE
DIRECT)
and
Indicator
This
switch
can
be
used
to
change
the
performance
source
selected
with
the
input
selector
switch.
DIRECT{
mf):
The
volume
of
the
source
selected
by
the
input
selector
switch
is
input
directly
into
the
main
amp
by
the
source
volume
control.
At
this
time
the
signal
will
bypass
the
tone
control,
muting,
balance,
mode,
processor,
and
absolute
phase*
circuits.
The
indicator
lights.
The
tone
control,
muting,
balance,
mode,
processor,
and
absolute
phase"
of
the
per-
formance
can
be
altered
for
the
source
selected
with
the
input
selector
switch.
»
“Absolute
phase”
is
a
capacity
included
on
U.S.A.,
Canadian
and
Worldwide
models.
[]
Muting
Switch
(MUTING)
When
the
source
direct
switch
is
off,
setting
this
switch
to
the
-20dB
(=)
position
reduces
the
sound
volume
to
about 1/10
(-20dB)
of
its
full
capacity.
This
makes
low-volume
adjustment
easier
to
perform.
[5]
Volume
Control
Knob
(VOLUME)
Turn
clockwise
to
increase
the
volume.
This
operation
can
be
handled
by
remote
control,
using
the
options!
RC-AV20M
Onkyo
programmable
remote
control.
This
remote
contro!
is
equipped
with
Onkyo
remote
control
codes
in
the
memory.
Set the
switch
at
the
desired
position
for
use.
For
details,
please
refer
to
the
instruction
manual
for
the
RC-AV20M.
With
the
USA,
Canadian
and
worldwide
models,
this
operation
is
also
possible
through
remote
control
by
using
the
RC-126A
remote
controlier
included
with
the
unit.
+
This
volume
controi
uses
the
Variable
Tone
Boosting
Sys-
tem.
About
the
Variable
Tone
Boosting
System
This
unit
is
designed
to
gradually
reduce
the
effect
of
the
tone
controls
(contrabass,
bass
and
treble)
as
the
volume
exceeds
a
certain
level,
The
variable
boosting
system
gradually
reduces
the
boosting
effect
of
the
contrabass
[21
and
bass[Z0]andtreble
[73]
controis
when
one
or
all
of
these
controls
is
turned
beyond
(to
the
right)
the
center
defeat
position
and
the
volume
control
{Blis
turned
beyond
the
15
graduation
(the
12:
00
position).
When
the
volume
is
turned
ali
the
way
up,
the
frequency
response
will
be
flat
again.
Volume
settings
below
the
15
graduation
have
no
effect
on
the
tone
controls.
Also,
bass
and
treble
control
settings
below
(to
the
left
of)
the
center
defeat
position
are
not
altered
by
the
volume
jevel.
[6]
Digital
Input
Selector
Switch
and
Indicator
(DIGITAL
INPUT
SELECTOR)
When
the
input
selector
switch
[7]is
set
to
DIGITAL,
this
in-
dicator
lights,
and
the
unit
can
be
set
to
the
digital
source
of
your
choice.
COAXIAL
DIGITAL
1:
Audio
component
connected
to
the
DI-
GITAL
1
jack.
DIGITAL
2:
DAT
connected
to
the
DIGITAL
2
(DAT)
jacks.
OPTICAL
LDIGITAL
3:
Audio
component
connected
to
the
DI-
GITAL
3
jack.
[2
input
Selector
Switch
(INPUT
SELECTOR)
and
Indi-
cator
When
this
switch
is
set
to
DIGITAL,
the
digital
input
selector
indicator
lights.
At
any
other
time,
the
input
selector
indicator
lights.
Set
this
switch
to
the
source
of
your
choice.
VCR:
Video
source
with
output
and
input
capabill-
ties
connected
to
the
VCR
jacks.
voP:
Video
source
with
the
output
capability
only
connected
to
the
VDP
jacks.
TAPE:
Tape
deck
connected
to
the
TAPE
jacks.
DAT:
Tape
deck
connected
to
the
DAT
jacks.
DIGITAL:
Playback
of
the
device
selected
with
the
digital
input
selector
switch
and
connected
to
the
DIGITAL
1
~3
jacks.
