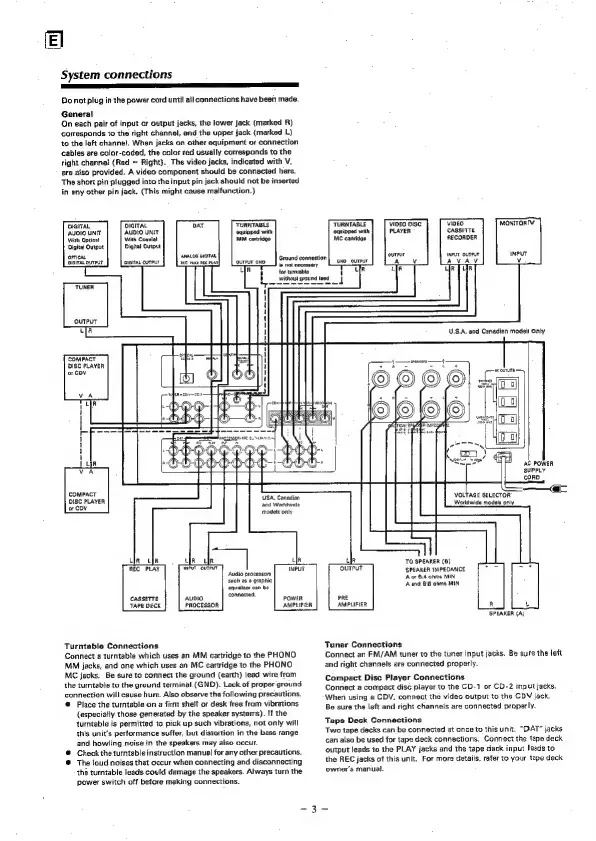

ra)
System
connections
IG
EI
TT
ER
Do
not
plug
in
the
power
cord
until
ail
connections
have been
made.
General
On
each
pair
of
input
or
output
jacks,
the
lower
jack
(marked
R)
corresponds
to
the
right
channel,
and
the
upper
jack
{marked
L)
to
the
left
channel.
When
jacks
on
other
equipment
or
connection
cables
are
color-coded,
the
color
red
usually
corresponds
to
the
right
channel
(Red
=
Right).
The
video
jacks,
indicated
with
V,
are
also
provided.
A
video
component
should
be
connected
here.
The
short
pin
plugged
into
the
input
pin
jack
should
not
be
inserted
in
any
other
pin
jack.
(This
might
cause
malfunction.)
DIGITAL
AUOIO
UNIT
With
Opticat
Digital
Ourput
DIGITAL
DAT
AUDIO
UNIT
With
Conxial
Digital
Ourput
ANALOG
DIGITAL
9
PTICAL
DigITAL
OUTPUT
braltaL
ouTPUT
TURNTABLE
VIDEO
DISC
VIDEO
MONITORIV
‘equipped
with
PLAYER
CASSETTE
MC
canvidge
RECORDER
ourrur
troy
ourrur
IwPUT
A
AVAY
v
TONER
outrur
tye
———
COMPACT
DISC
PLAYER
or
CDV
U.S.A,
and
Canadian
models
only
con
ujr_ofe
i
a
dr
REC
PLAY
euT
OUTAT
WPUT
‘Audio
provessore
‘such
a6
2
graphic
‘equalizer
cen
be
CASSETTE
aoe
‘FAPE
DECK
Avia
PROCESSOR
POWER
AMPLIFIER,
Turntable
Connections
Connect
a
turntable
which
uses
an
MM
cartridge
to
the
PHONO
MM
jacks,
and
one
which
uses
an
MC
cartridge
to
the
PHONO
MC
jacks.
Be
sure
to
connect
the
ground
(earth)
lead
wire
from
the
tumtable
to
the
ground
terminal
(GND).
Lack
of
propsr
ground
connection
will
cause
hum.
Also
observe
the
following
precautions.
©
Place
the
turntable
on
a
firm
shelf
or
desk
free
from
vibrations
(especially
those
generated
by
the
speaker
systems).
if
the
turntable
is
permitted
to
pick
up
such
vibrations,
not
only
will
this
unit's
performance
suffer,
but
distortion
in
the
bass
range
and
howling
noise
in
the
speakers
may
also
occur.
©
Check
the
turntable
instruction
manual
for
any
other
precautions.
©
The
foud
noises
that
occur
when
connecting
and
disconnecting
the
tumtable
leads
could
damage
the
speakers.
Always
turn
the
power
switch
off
before
making
connections.
VOLTAGE
SELECTOR,
Worldwide
medols
only
yt
ue
TO
SPEAKER
(8)
‘OUTPUT
SPEAKER
IMPEDANCE
ane
ae
A
or
8:8
ohms
MIN
and
B:8
ohms
MIN
PRE
AMPLIFIER
Li
L
‘SPEAKER
(A)
Tuner
Connections
Connect
an
FM/AM
tuner
to
the
tuner
input
jacks.
Be
sure
the
left
and
right
channels
are
connected
properly.
Compact
Disc
Player
Connections
Connect
a
compact
disc
player
to
the
CD-1
or
CD-2
input
jacks.
When
using
a
CDV,
connect
the
video
output
to
the
CDV
jack.
Be
sure
the
left
and
right
channels
are
connected
properly.
Tape
Deck
Connections
Two
tape
decks
can
be
connected
at
once
to
this
unit.
“DAT”
jacks
can
also
be
used
for
tape
deck
connections.
Connect
the
tape
deck
output
leads
to
the
PLAY
jacks
and
the
tape
deck
input
leads
to
the
REC
jacks
of
this
unit.
For
more
details,
refer
to
your
tape
deck
owner's
manual.
