Connecting speakers
• To prevent damage to circuitry, never short-circuit the positive
(+) and negative (–) speaker wire.
• Be sure to connect the positive and negative cables for the
speakers properly. If they are mixed up, the left and right
signals will be reversed and the audio will sound unnatural.
• Connect speakers with an impedance between 6 Ω and 16 Ω.
Connecting speakers with an impedance less that 6 Ω may
damage the HT-R490.
• Do not connect more than one speaker cable to one speaker
terminal. Doing so may damage the HT-R490.
• When you are using only one speaker or when you wish to
listen to monaural (mono) sound, a single speaker should
never be connected in parallel to both the right and left-
channel terminals simultaneously.
Connecting a subwoofer
Use the SUB WOOFER PRE OUT jack to connect a subwoofer
with a built-in power amplifier.
If your subwoofer does not have a built-in amplifier, connect an
amplifier to the SUB WOOFER PRE OUT jack and the subwoofer
to the amplifier.
Front left
speaker
Front right
speaker
Surround
left
speaker
Surround
right
speaker
Center
speaker
Subwoofer

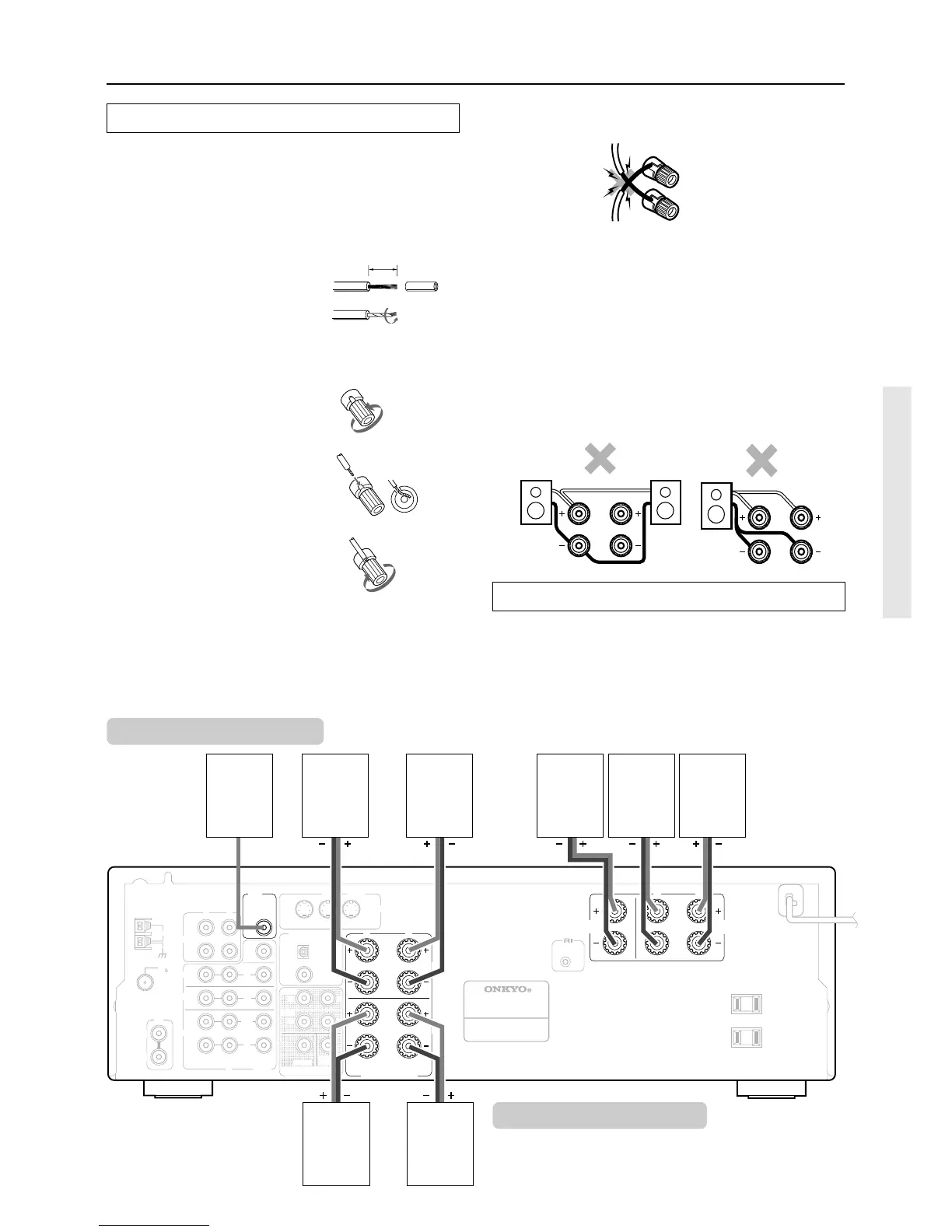

Connecting speakers
After installing the speakers, connect them to the HT-R490.
CAUTION:
SPEAKER IMPEDANCE
6 Ω min. per each speaker terminal.
Preparation of speaker cords
1.
Strip away 15 mm (5/8 inch)
of wire insulation.
2. Twist wire ends very tight.
Connecting the speaker cord
1. Loosen the screw.
2. Fully insert the end of the
cord.
3. Tighten the screw.
15mm (5/8")
Front left
speaker
Front right
speaker
NO!
NO!
To Next Page
