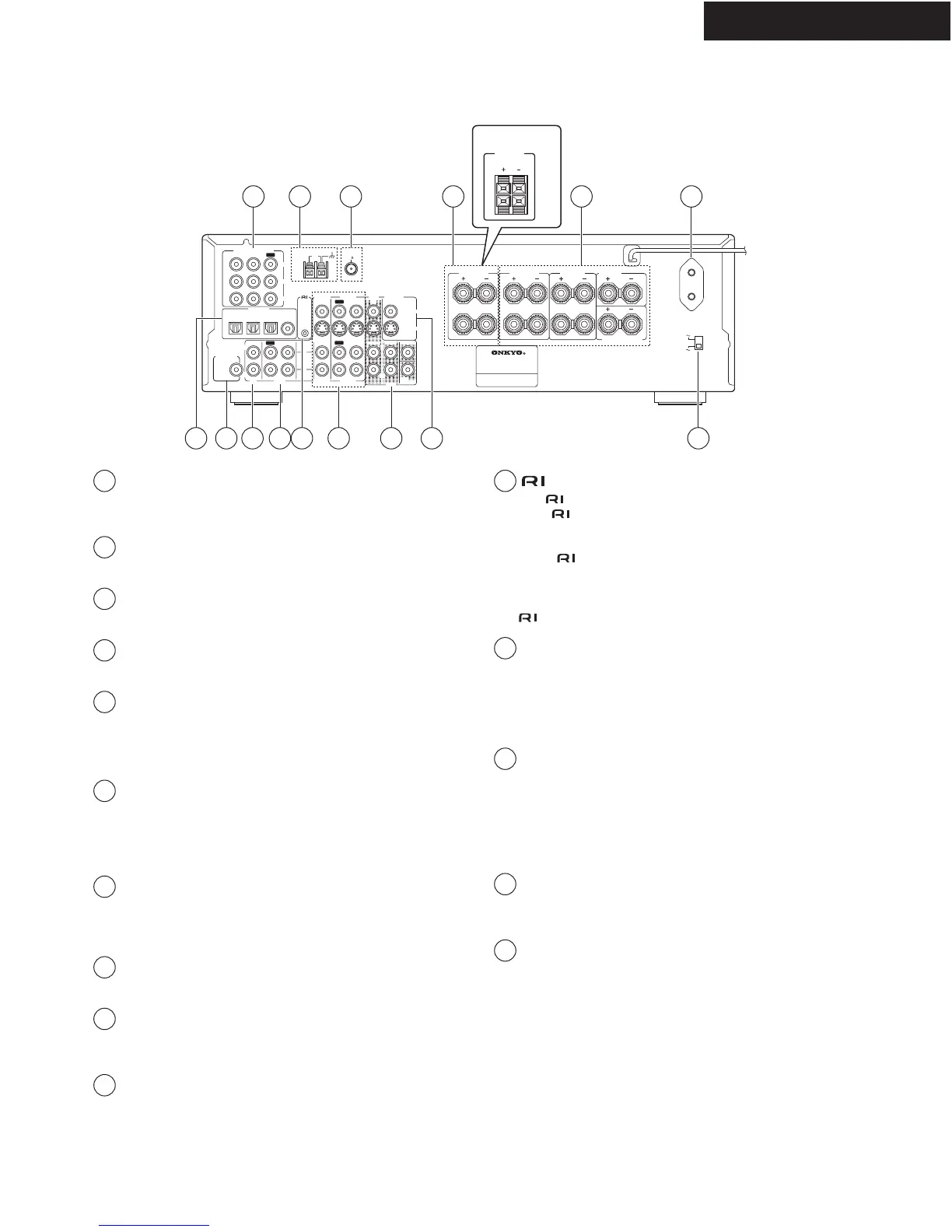

PANEL VIEWS-4
REAR PANEL
TX-SR502/E/8250/HT-R520
L
R
ANTENNA
FM
75
AM
120
V
VOLTAGE
SELECTOR
220
-
230
V
SWITCHED
100W MAX.
AC OUTLET
AV RECEIVER
OPTICAL COAXIAL
123
DIGITAL
IN
VIDEO 1
/2/3IN
R
L
SURROUND
SPEAKERS
CENTER
SPEAKER
SURROUND BACK
SPEAKER
REMOTE
CONTROL
IN
IN
IN
IN
IN
IN
IN
FRONT
SURR
CENTER
SUB
WOOFER
OUT
OUT
OUT
VIDEO 2
VIDEO 1
DVD MONITOR
OUT
VIDEO
S VIDEO
DVD
TAPE
CD
L
R
VIDEO 2
VIDEO 1
SUBWOOFER
PRE OUT
DVD
IN
COMPONENT VIDEO
Y
P
B
PR
OUT
L
R
R
L
FRONT
SPEAKERS A
R
L
FRONT
SPEAKERS B
Class 2 Wiring
FRONT
SPEAKERS B
R
L
HT-R520 ONLY
1 2 3 4 5 6
151413121110987
COMPONENT VIDEO
A DVD player, TV, or other component that supports
component video can be connected here.
1
This (Remote Interactive) socket can be connected
to the socket on another Onkyo component.
The unit's remotecontroller can then be used to control that
component.
To use , you must make an analog audio
connection (RCA) between the unit and the other component,
even if they are connected digitally.
Note:
can only be used with Onkyo components.
11
AM ANTENNA
These push terminals are for connecting an AM antenna.
2
FM ANTENNA
This socket is for connecting an FM antenna.
3
FRONT SPEAKERS B
These terminal posts are for connecting speaker set B.
4
VIDEO 1 IN/OUT & VIDEO 2 IN
The VIDEO 1 S-Video, composite video, and audio
inputs and outputs can be used to connect a VCR.
The VIDEO 2 S-Video, composite video, and audio
inputs can be used to connect another video source
(e.g., cable TV, satellite TV, or a set-top box).
12
DVD IN/MULTI CH INPUT
The FRONT, SURR, CENTER, and SUBWOOFER
inputs can be used to connect components with multiple
analog audio outputs, including DVD players
with individual 5.1-channel analog outputs. The
S-Video or composite video input should be connected
to a video output on the DVD player.
13
MONITOR OUT
The S-Video or composite video output should be
connected to a video input on your TV or projector.
14
VOLTAGE SELECTOR
(Worldwide model only)
This voltage selector provides compatibility with
power systems around the world.
15
AC OUTLET
This switched AC outlet can be used to supply
power to another component. The connector type
depends on the country in which you purchased
your unit.
6
DIGITAL IN OPTICAL 1, 2, 3 & COAXIAL
These optical and coaxial sockets can be used to
connect a CD, DVD, or LD (laser disc) player and
other components with digital audio outputs.
7
SUBWOOFER PRE OUT
A powered subwoofer can be connected here.
8
CD IN
These analog inputs can be used to connect a CD
player with analog outputs.
9
TAPE IN/OUT
These analog inputs and outputs can be used to connect
a cassette recorder, Mini Disc recorder, or other
recorder with analog inputs and outputs.
10
FRONT SPEAKERS A, SURROUND
SPEAKERS, CENTER SPEAKER &
SURROUND BACK SPEAKER
These terminal posts are for connecting speaker set A.
5
To Next Page
