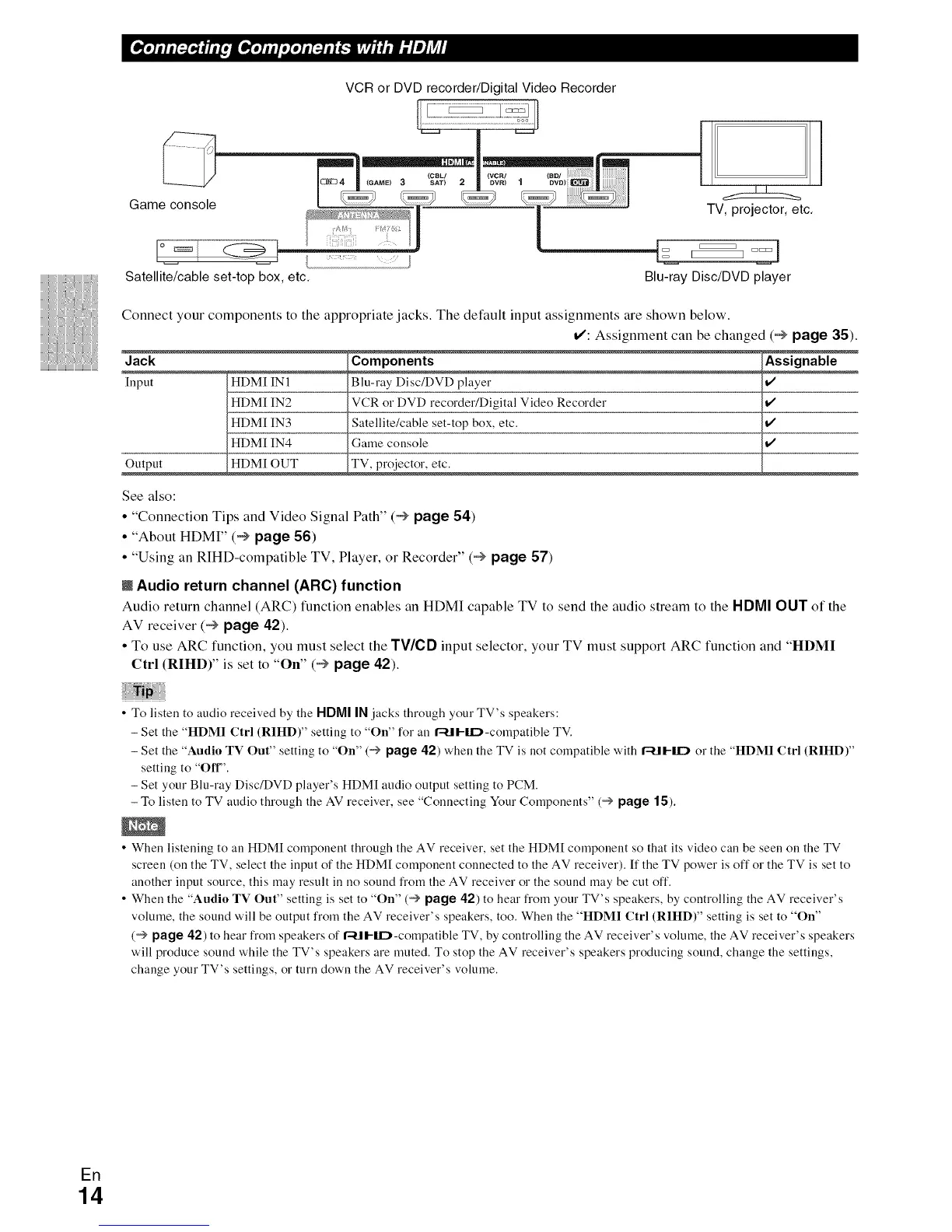

Onkyo HT-R590 Instruction Manual

VCR or DVD recorder/Digital Video Recorder
Game console
1I
TV, projector, etc,
Satellite/cable set-top box, etc, Blu-ray Disc/DVD player
Connect your components to the appropriate jacks. The default input assignments are shown below.
_: Assignment can be changed (_ page 35).
Jack Components Assignable
[nput HDM[ INI Blu-ray Disc/DVD player
HDM[ IN2 VCR or DVD recorder/Digital Video Recorder
HDM[ IN3 Satellite/cable set-top box, etc.
HDM[ IN4 Game console
Output HDM[ OUT TV, projector, etc.
See also:
• "Connection Tips and Video Signal Path" (_ page 54)
• "About HDMI" (_ page 56)
• "Using an RIHD-compatible TV, Player, or Recorder" (_ page 57)
N Audio return channel (ARC) function
Audio return channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT of the
AV receiver (_ page 42).
• To use ARC function, you must select the TV/CD input selector, your TV must support ARC function and "HDMI
Ctrl (RIHD)" is set to "Off' (_ page 42).
• To listen to audio received by the HDMI IN jacks through your TV's speakers:
- Set the "HDMI Ctrl (RIHD)" setting to "On" for an r'411-11O-compatible TV.
- Set the "Audio TV Out" setting to "On" (_ page 42) when the TV is not compatible with r"41 I-liD or the "HDMI Ctrl (RIHD)"
setting to "OFF'.
- Set your Blu-ray Disc/DVD player's HDM[ audio output setting to PCM.
- To listen to TV audio through the AV receiver, see "Connecting Your Components" (_ page 15).
• When listening to an HDM[ component through the AV receiver, set the HDM[ component so that its video can be seen on the TV
screen (on the TV, select the input of the HDM[ component connected to the AV receiver). If the TV power is off or the TV is set to
another input source, this may result in no sound from the AV receiver or the sound may be cut off.
• When the "Audio TV Out" setting is set to "On" (_ page 42) to hear from your TV's speakers, by controlling the AV receiver's
volume, the sound will be output from the AV receiver's speakers, too. When the "HDMI Ctrl (RIHD)" setting is set to "On"
(_ page 42) to hear from speakers of r41 I-liD-compatible TV, by controlling the AV receiver's volume, the AV receiver's speakers
will produce sound while the TV's speakers are muted. To stop the AV receiver's speakers producing sound, change the settings,
change your TV's settings, or turn down the AV receiver's volume.
ER
14

Onkyo HT-R590 Specifications

General

Type	AV Receiver
Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Total Harmonic Distortion	0.08% (1 kHz, 1 W)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line)
Dolby Support	Dolby TrueHD, Dolby Digital Plus
DTS Support	DTS-HD Master Audio
Signal-to-Noise Ratio	106dB
