Onkyo HT-R590 Instruction Manual

(North American and Asian models)
_GA_E_
2
tTW
CO_
2
s_r_
nE_0,E
J.®> ® ®®
,9®1®1®!@®1®
.........
®

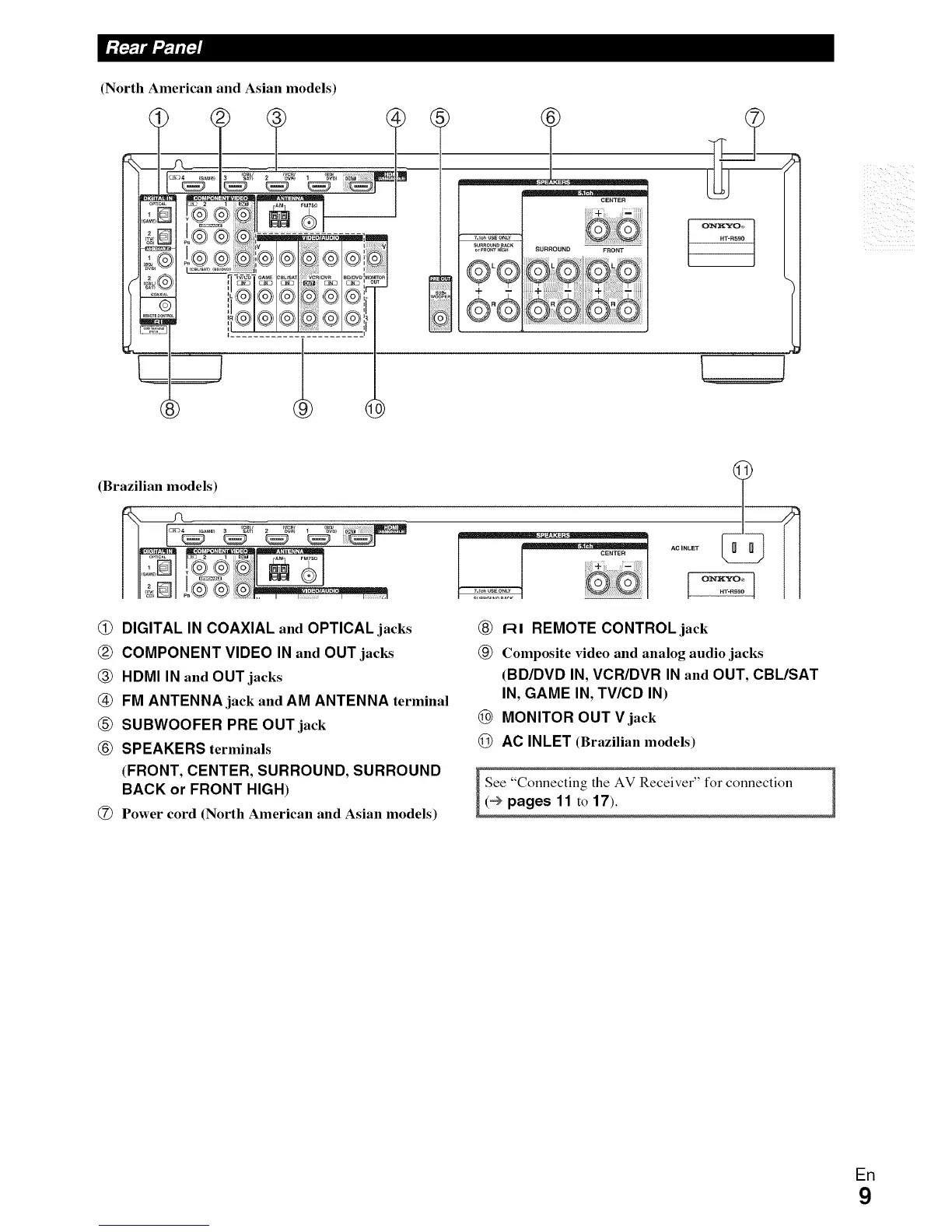

(Brazilian models)
CENTER
DIGITAL IN COAXIAL and OPTICAL jacks
COMPONENT VIDEO IN and OUT jacks
HDMI IN and OUT jacks
FM ANTENNA jack and AM ANTENNA terminal
SUBWOOFER PRE OUT jack
SPEAKERS terminals
(FRONT, CENTER, SURROUND, SURROUND
BACK or FRONT HIGH)
(_ Power cord (North American and Asian models)
(_) RI REMOTE CONTROL jack
(_) Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, TV/CD IN)
@ MONITOR OUT V jack
G AC INLET (Brazilian models)
I See "Connecting the AV Receiver" for connection(@ pages 11 to 17). l
EF1
9

Onkyo HT-R590 Specifications

General

Type	AV Receiver
Channels	7.1
HDMI Inputs	4
HDMI Outputs	1
Total Harmonic Distortion	0.08% (1 kHz, 1 W)
Input Sensitivity and Impedance	200 mV/47 k-ohms (Line)
Dolby Support	Dolby TrueHD, Dolby Digital Plus
DTS Support	DTS-HD Master Audio
Signal-to-Noise Ratio	106dB
