Onkyo HT-R980 User Manual

13
En
■ European models
*

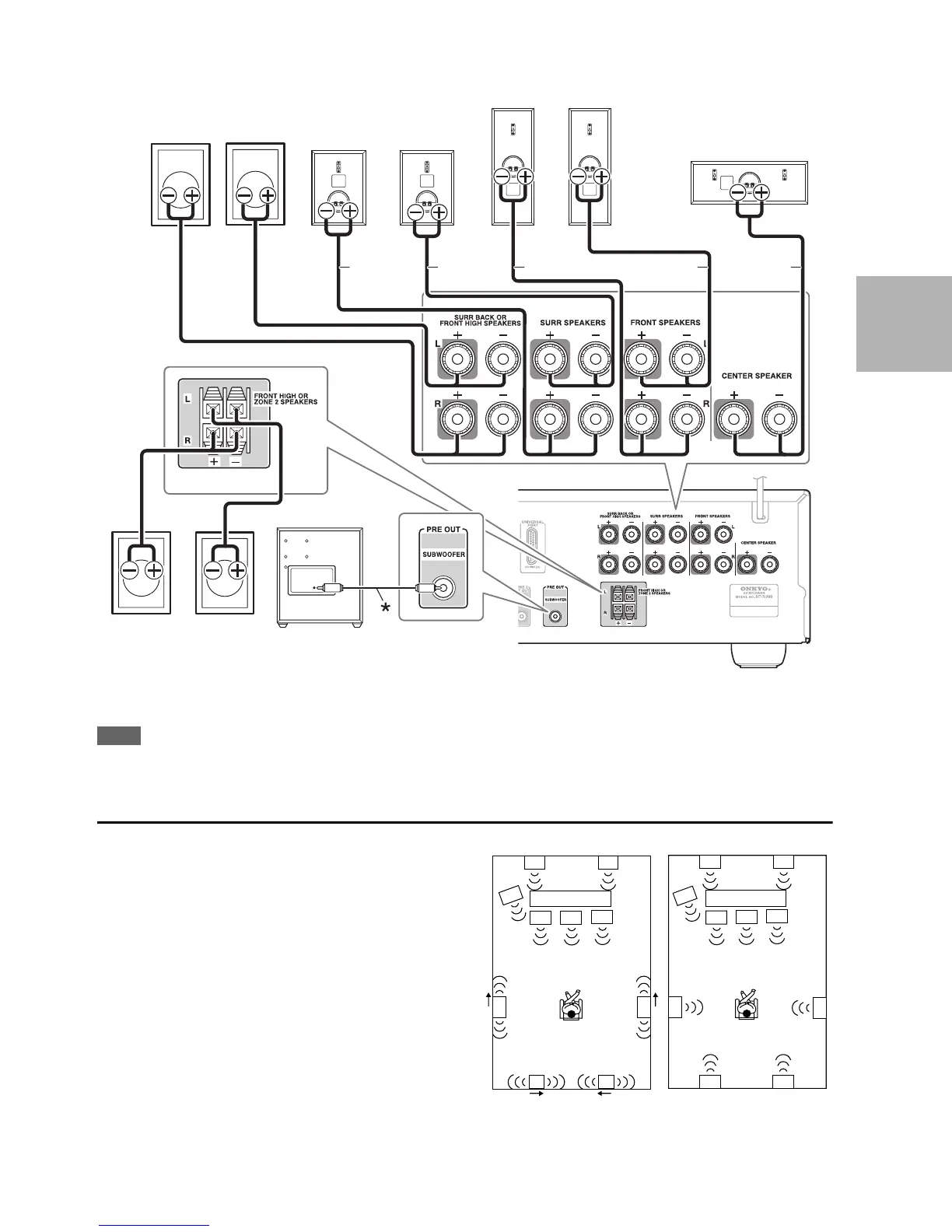

Using the supplied RCA cable, connect the subwoofer’s LINE INPUT jack to your AV receiver’s SUBWOOFER PRE OUT jack.
Note
• The front high speakers can also be connected to the SURR BACK OR FRONT HIGH SPEAKERS terminals. When doing so, set
“Surr Back/Front High” in Speaker Setup to “Front High” (➔ 39).
Using Dipole Speakers
You can use dipole speakers for the surround and surround
back speakers. Dipole speakers output the same sound in two
directions.
Dipole speakers typically have an arrow printed on them to
indicate how they should be positioned. The surround dipole
speakers should be positioned so that their arrows point
toward the TV/screen, while the surround back dipole speak-
ers should be positioned so that their arrows point toward
each other, as shown.
abFront speakers
c Center speaker
deSurround speakers
f Subwoofer
ghSurround back speakers
ijFront high speakers
Surround
back right
speaker
(Optional)
Surround
back left
speaker
(Optional)
White
Center speaker
Powered
subwoofer
Front right
speaker
Front left
speaker
RedBlueGray Green
Surround
right
speaker
Surround
left
speaker
Front high
right
speaker
(Optional)
Front high
left
speaker
(Optional)
cba
gh
de
a
b
c
de
gh
ij
ij
f
f
TV/screen TV/screen
Dipole speakers
Normal speakers
