Onkyo HT-R980 User Manual

12
En

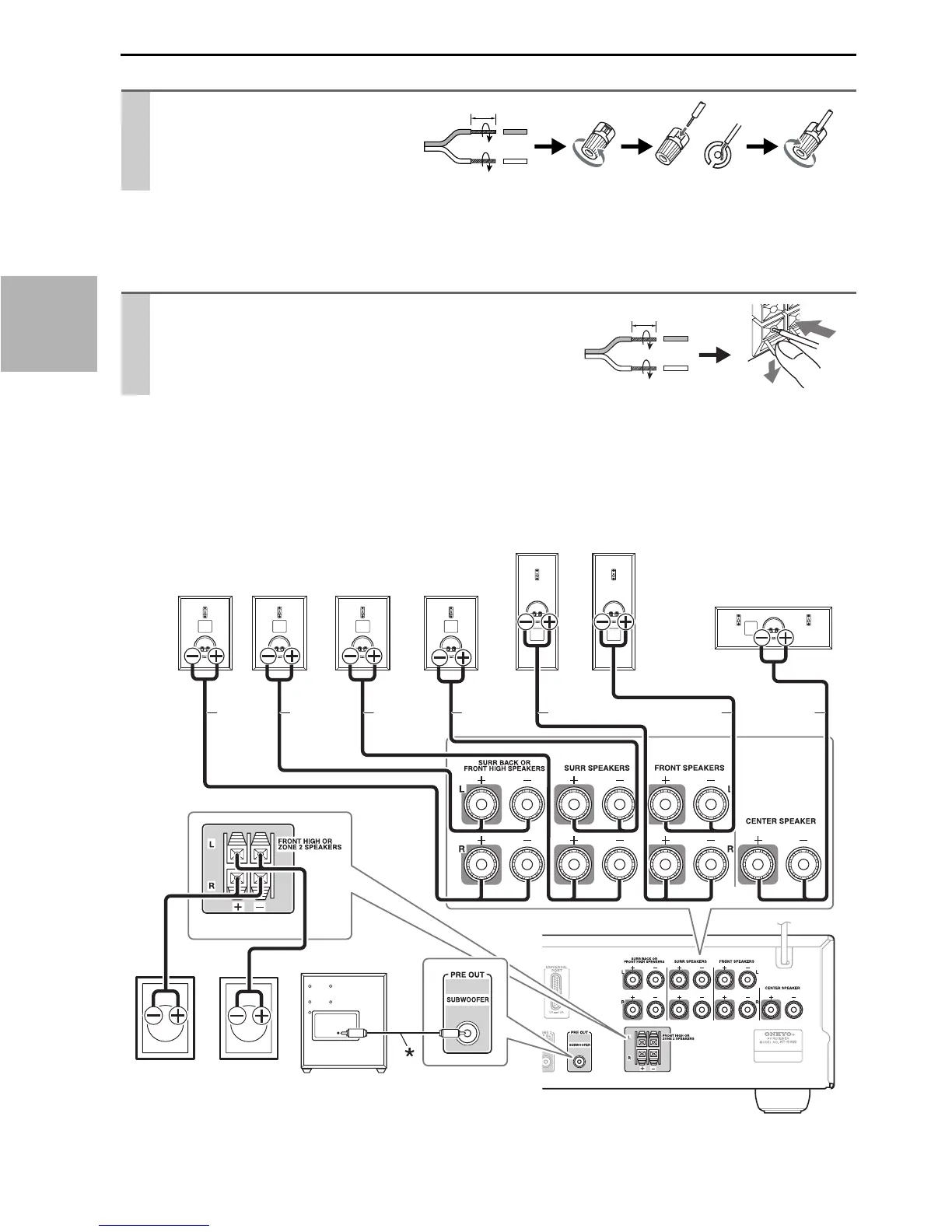

Connecting the Speaker Cables
Screw-type speaker terminals
Using Banana Plugs (North American models)
• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.
• Do not insert the speaker code directly into the center hole of the speaker terminal.
Push-type speaker terminals
The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one
surround back speaker, connect it to the SURR BACK OR FRONT HIGH L terminals.
■ North American models
Strip 1/2" to 5/8" (12 to 15 mm) of
insulation from the ends of the
speaker cables, and twist the bare
wires tightly, as shown. (Supplied
speaker cables are already stripped.)
1/2" to 5/8"(12 to 15 mm)
Strip 3/8" to 1/2" (10 to 12 mm) of insulation from the ends of
the speaker cables, and twist the bare wires tightly, as shown.
(Supplied speaker cables are already stripped.)
3/8" to 1/2"(10 to 12 mm)
Surround
back right
speaker
Surround
back left
speaker
White
Center speaker
Powered
subwoofer
Front right
speaker
Front left
speaker
RedBlueGray Green
Surround
right
speaker
Surround
left
speaker
Front high
right
speaker
(Optional)
Front high
left
speaker
(Optional)
BrownTan
