Front & Rear Panels
North American models
European models
The actual front panel has various logos printed on it. They are not shown here for clarity.
The page numbers in parentheses show where you can find the main explanation for each item.
a ON/STANDBY button (➔ 20)
b STANDBY indicator (➔ 20)
c HDMI THRU indicator (➔ 50)
d ZONE 2 indicator (➔ 54)
e Remote control sensor (➔ 4)
f ZONE 2, OFF, ZONE 2 LEVEL/TONE LEVEL
and TONE buttons (➔ 51, 54 to 55)
g Display (➔ 8)
h LISTENING MODE buttons (MOVIE/TV, MUSIC
and GAME) (➔ 30)
i DIMMER button (North American models) (➔ 21)
j MEMORY button (➔ 27)
k TUNING MODE button (➔ 26)
l DISPLAY button (➔ 21)
m SETUP button (➔ 36)
n TUNING, PRESET (➔ 26 to 27), arrow and
ENTER buttons
o RETURN button
p MASTER VOLUME control (➔ 21)
q THX button (➔ 30)
r PHONES jack (➔ 23)
s Input selector buttons (BD/DVD, VCR/DVR,
CBL/SAT, GAME, AUX, TUNER, TV/CD and
PORT) (➔ 21)
t AUX INPUT LINE IN jack (➔ 16)
u AUX INPUT VIDEO jack (➔ 16)
v AUX INPUT AUDIO jacks (➔ 16)
w SETUP MIC jack (➔ 24)
x RT/PTY/TP button (European models) (➔ 27)

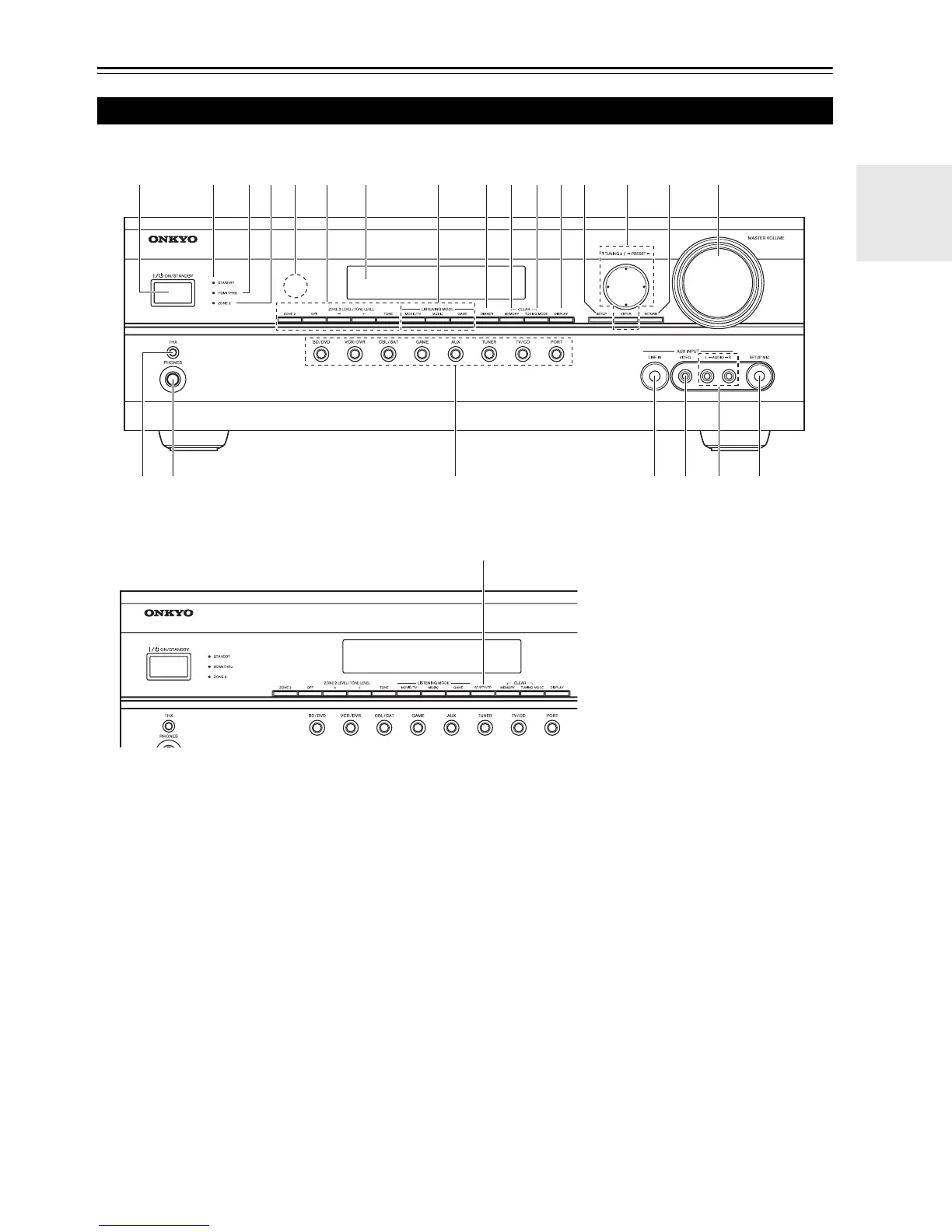

Front Panel
a
stuwv
bcde fhg ijklmno p
r
q
x
