Part Names

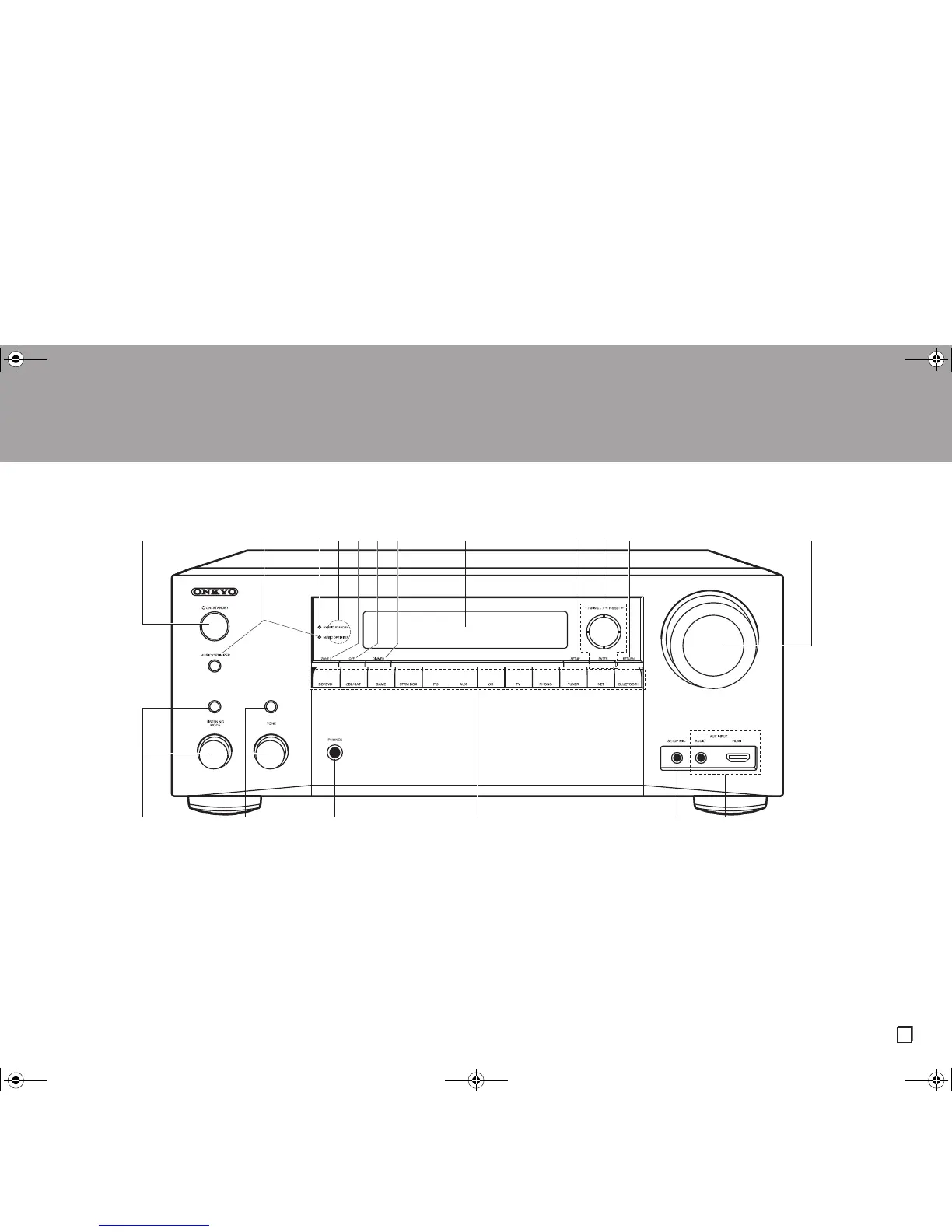

Front Panel
1. Í ON/STANDBY button
2. MUSIC OPTIMIZER button/indicator (North American models): Turns on/off the Music
Optimizer function that provides better sound quality for compressed audio.
PURE AUDIO button/indicator (European models): Switches to the Pure Audio mode
(P23).
3. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features
are enabled that continue to work when this unit is in standby, such as HDMI Standby
Through and Network Standby.
4. Remote control sensor: Receives signals from the remote controller.
0 The signal range of the remote controller is within about 16´/5 m, at an angle of 20° on
the perpendicular axis and 30° to either side.
5. ZONE 2 button: Controls the multi-zone function (P22).
6. OFF button: Switches the multi-zone function off (P22).
7. DIMMER button: You can adjust the brightness of the display in three steps. It cannot be
turned off completely.
8. Display (P4)
9. SETUP button: You can show advanced setting items on the TV and display to provide
you with an even better experience. (*)
10.
Cursor buttons (S / T / W / X) and ENTER button: Select the item with the cursors and
press ENTER to confirm. Use them to tune to stations when using TUNER (P20).
11.
RETURN button: Returns the display to the previous state.
12.
MASTER VOLUME
13.
Press the LISTENING MODE button (above) repeatedly to select a category from "Movie/
TV", "Music", "Game", then turn the LISTENING MODE dial (below) to change the mode
(P23). (*)
To Next Page
