9
Step3: Connect the TV & AV Components

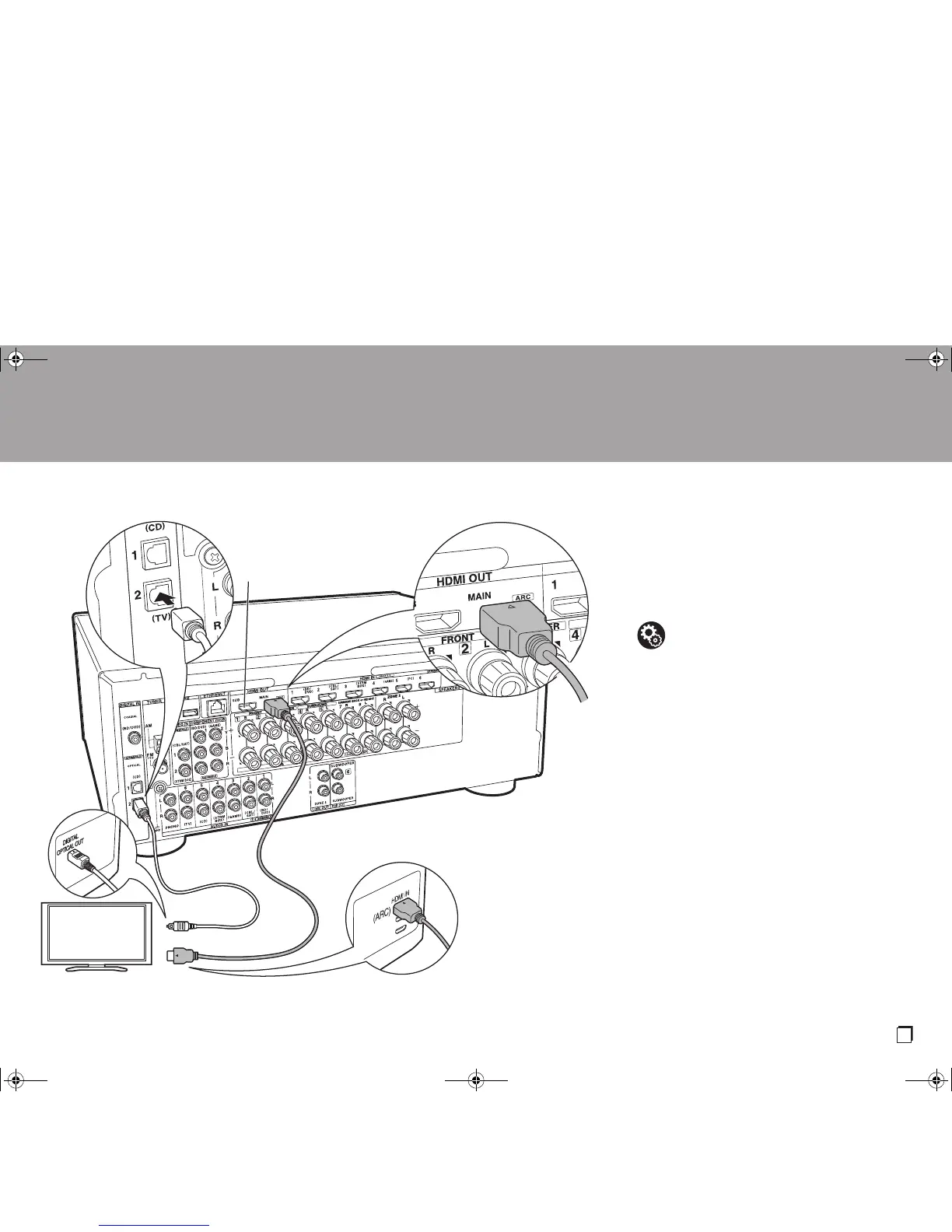

1. Connect the TV
To ARC TV
For a TV that supports the ARC (Audio Return Channel)
(*1) feature, use an HDMI cable and connect according to
illustration "a". Choose an HDMI IN jack on the TV that
supports ARC when connecting.
To Non-ARC TV
For a TV that does not support the ARC (Audio Return
Channel) feature (*1), connect both the HDMI cable in
illustration "a" and the digital optical cable in "b". If the TV
doesn't have a DIGITAL OPTICAL OUT jack, use an analog
audio cable and connect the TV's ANALOG AUDIO OUT
jack to the AUDIO IN TV jack on this unit.
0 Connection with a digital optical cable is not necessary if
you will watch TV through a device such as a cable set-
top box (that is, not use a tuner built into the TV) that you
have connected to the input jack on this unit.
(*1) The ARC feature: This feature transfers TV audio
signals via HDMI cable so that you can play the audio
from the TV through this unit. Connection to an ARC
compatible TV is complete with one HDMI cable. Refer
to the instruction manual for your TV to see if it
supports ARC.
(*2) Another TV or projector can be connected to the HDMI
OUT SUB jack. Press Q (P6) on the remote control and
use "Other" - "HDMI Out" to switch between MAIN and
SUB. Note that this jack does not support ARC.
Setup
0 Settings are required to use the ARC function.
Select "Yes" in "5. Audio Return Channel" (P16) in
the Initial Setup.
0 Refer to the instruction manual for the TV for TV
connections and instructions regarding settings
for CEC features and audio output.
