Onkyo HT-RC630 User Manual

TX-SR333/HT-RC630

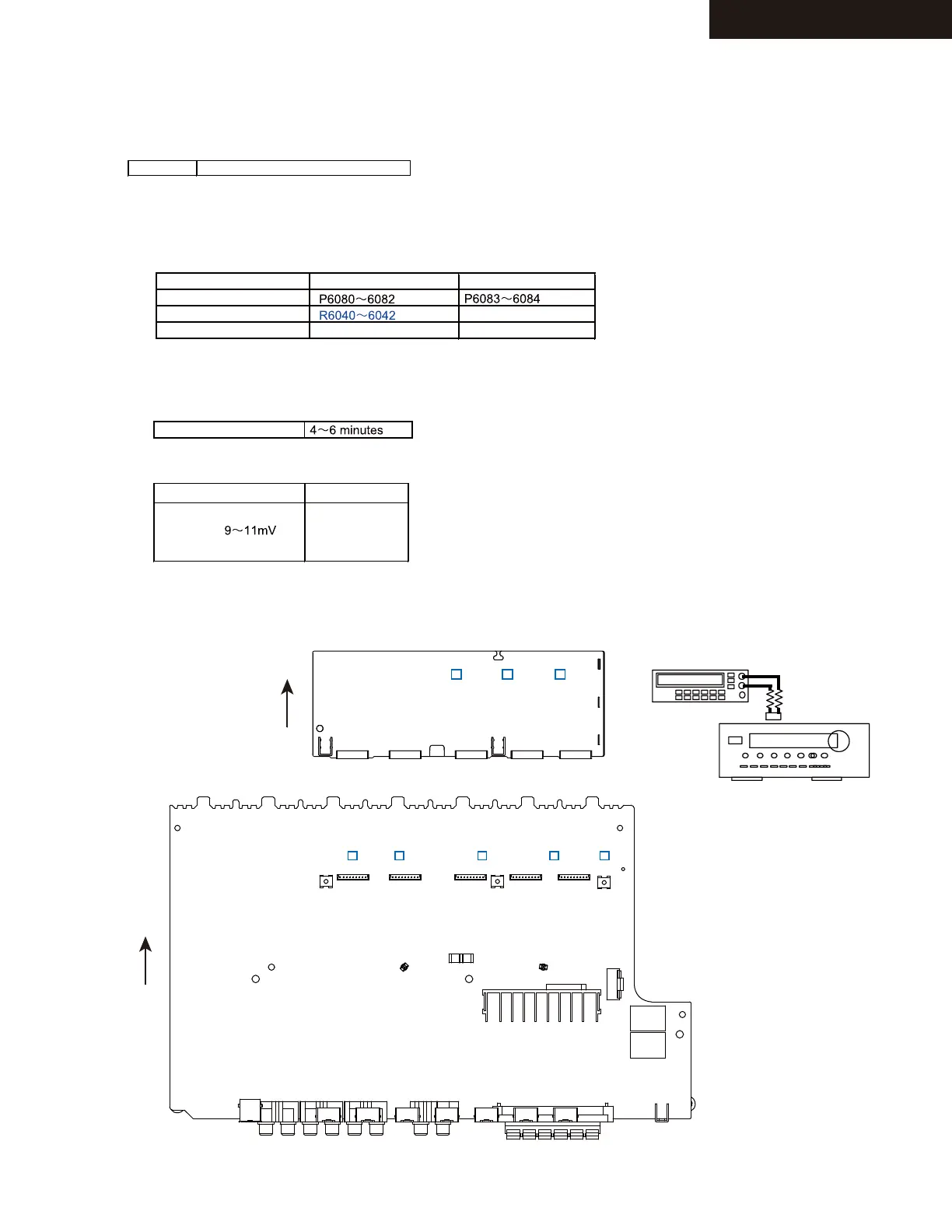

ADJUSTMENT PROCEDURE
Connection
DC Volt meter
AVR
100ohms, 1/4W
BAAF-1672
Adjustment point
Test point
BACLA-1522
R6041R6042 R6040
LC
R
SL
SR
Do not adjust.
SR SL C R L
P6084 P6083 P6082 P6080P6081
Front
ADJUSTMENT OF IDLING CURRENT
Applied to the following model.
(Model) TX-SR333/HT-RC630
a. Pre-adjustment
Set the following registers to minimum position before POWER ON.
Set the voltages at the following terminals to the following voltage by adjusting the following registers, under the condition of
no input and no load, immediately after POWER ON.
Channel L/C/R
SL/SR
Terminals
Registers
Voltage 2.5mV
---
About SL/SR Channel, adjustment is unnecessary.
If the measured value of SL/SR Channel are under 1mV or over 21mV, turn off the power of the AVR and rework the AVR.
b. Aging
Heat run during the following time.
Time
c. Final adjustment
Re-adjust by the following procedure after heat running for the above mentioned time.
L/C/R
Below 9mV 9mV
Between
Do not adjust.
Over 11mV 11mV
Equip series 1/4W 100-ohm resisters near the terminal respectively in each pole of the jig used for the above mentioned terminals.
None
Top
Procedure

Onkyo HT-RC630 Specifications

General

Output level	100 mV
Receiver type	Surround
Frequency range	5 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Dynamic power per channel (3 Ohm)	160 W
Dynamic power per channel (4 Ohm)	125 W
Dynamic power per channel (8 Ohm)	85 W
Power output per channel (1KHz@6 Ohm)	120 W
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	6
Audio (L/R) in	7
Composite video in	4
Digital audio coaxial in	2
Component video (YPbPr/YCbCr) in	1
Speakers connectivity type	-
Bluetooth	Yes
Ethernet LAN	No
Bluetooth version	2.1+EDR
Bluetooth profiles	A2DP, AVRCP
AM band range	522 - 1710 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Damping factor	60
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	330 W
Package weight	10500 g

Weight and Dimensions

Depth	321 mm
Width	435 mm
Height	150 mm
Weight	8100 g
