 5.1.2 Channel System (Using separately available height speakers)
**

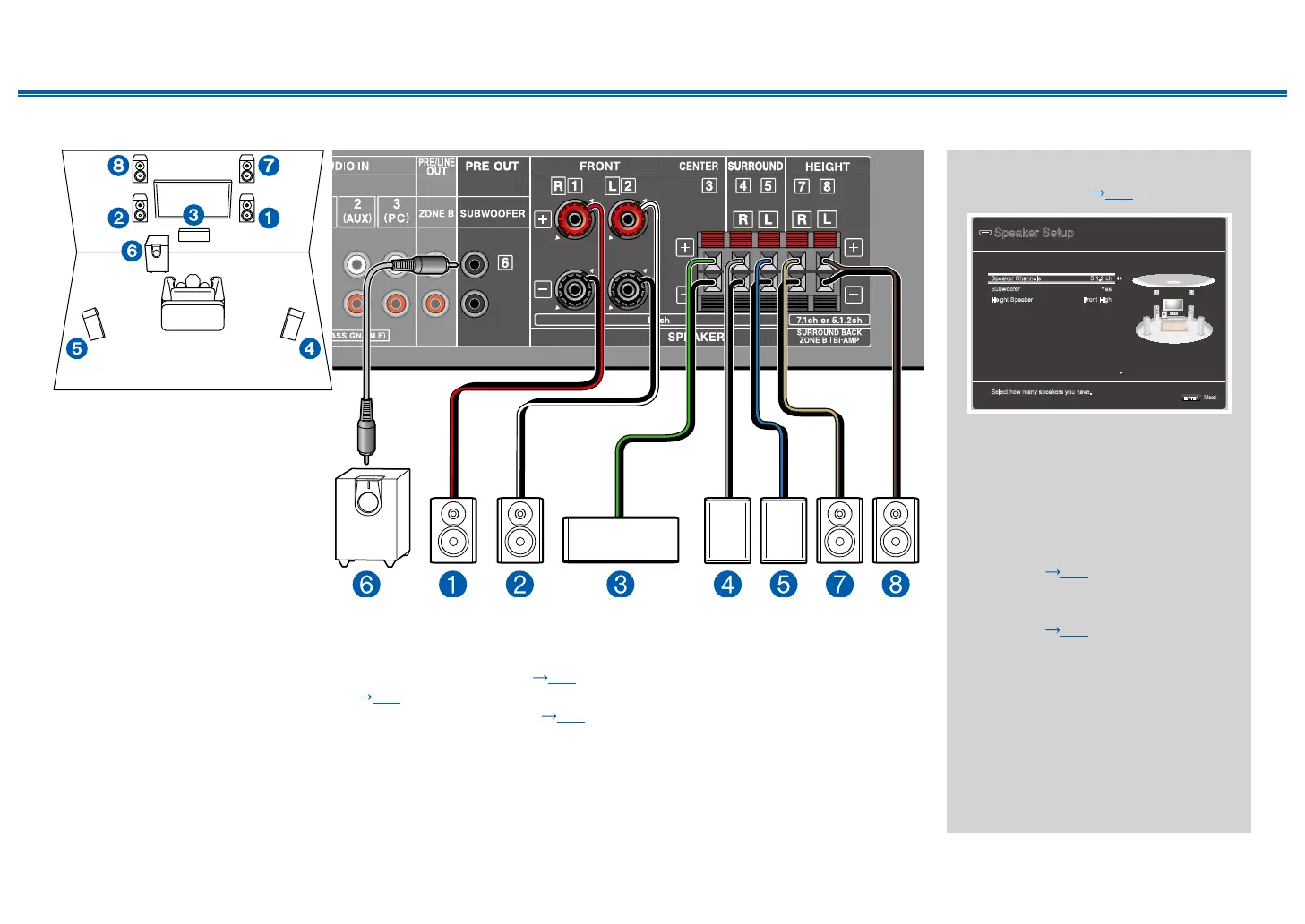

This is an example of a 5.1 Channel System combined with separately available height speakers. You can select one
combination from the following 3 types according to the type of height speakers to be used and the usage environment,
then make the connections.
 Front High Speakers/Rear High Speakers Installation Example ( p27)
 Ceiling Speakers Installation Example ( p28)
 Dolby Enabled Speakers (Dolby Speakers) Installation Example ( p29)
* Purchase other separately available speaker cables if the speaker cable is not long enough.
 "Speaker Setup" settings during
Initial Setup ( p95)
Speaker Setup
Speaker Channels
Subwoofer
Height Speaker
Select how many speakers you have.
Next
5.1.2 ch
Yes
Front High
ENTER
• Speaker Channels: 5.1.2 ch
• Subwoofer: Yes
• Height Speaker: Select the
type of height speaker actually
installed.
• Zone B Speaker: No
• Zone B Output Level: Set any
value (
p45)
• Bi-Amp: No
• Speaker Impedance: Set any
value (
p30)
