7

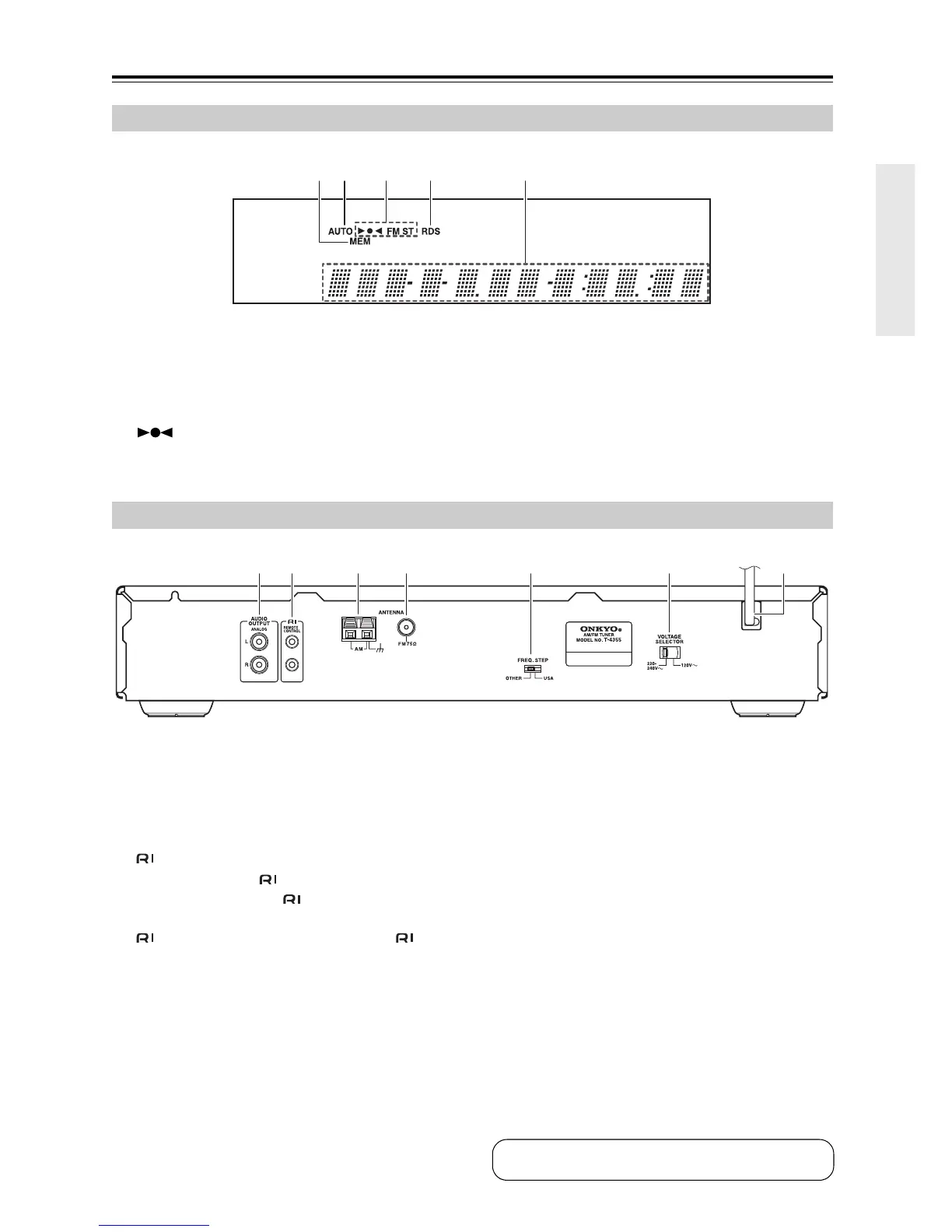

Front & Rear Panels—Continued
MEM (Memory) indicator
This indicator lights up when storing radio presets.
AUTO indicator
This indicator lights up when the FM mode is Auto
Stereo.
/FM ST indicators
These indicators show the status of the radio recep-
tion.
RDS indicator (European models only)
This indicator lights up when tuned to an FM station
that supports RDS.
Message area
Various information is displayed here, including
preset number, tuning frequency, preset name, and
so on.
For detailed information, refer to the pages in parentheses.
ANALOG AUDIO OUTPUT (10)
These output jacks should be connected to an ana-
log audio input on the amplifier by using the sup-
plied audio cable.
REMOTE CONTROL (11)
These two identical (Remote Interactive) jacks
can be connected to the jacks on your other
Onkyo components for interactive control. To use
, the T-4355 must be connected with an cable
and an audio cable.
AM ANTENNA (12)
These push terminals are for connecting the sup-
plied AM loop antenna or an outdoor AM antenna.
FM ANTENNA (75:) (12)
This jack is for connecting the supplied indoor FM
antenna or an outdoor FM antenna.
FREQ. STEP switch (4)
For Worldwide models only.
VOLTAGE SELECTOR switch (4)
For Worldwide models only.
Power cord (14)
The power cord should be connected to a suitable
power source.
Display
Rear Panel
See pages 10–13 for connection information.
To Next Page
