Connections
13
It
De

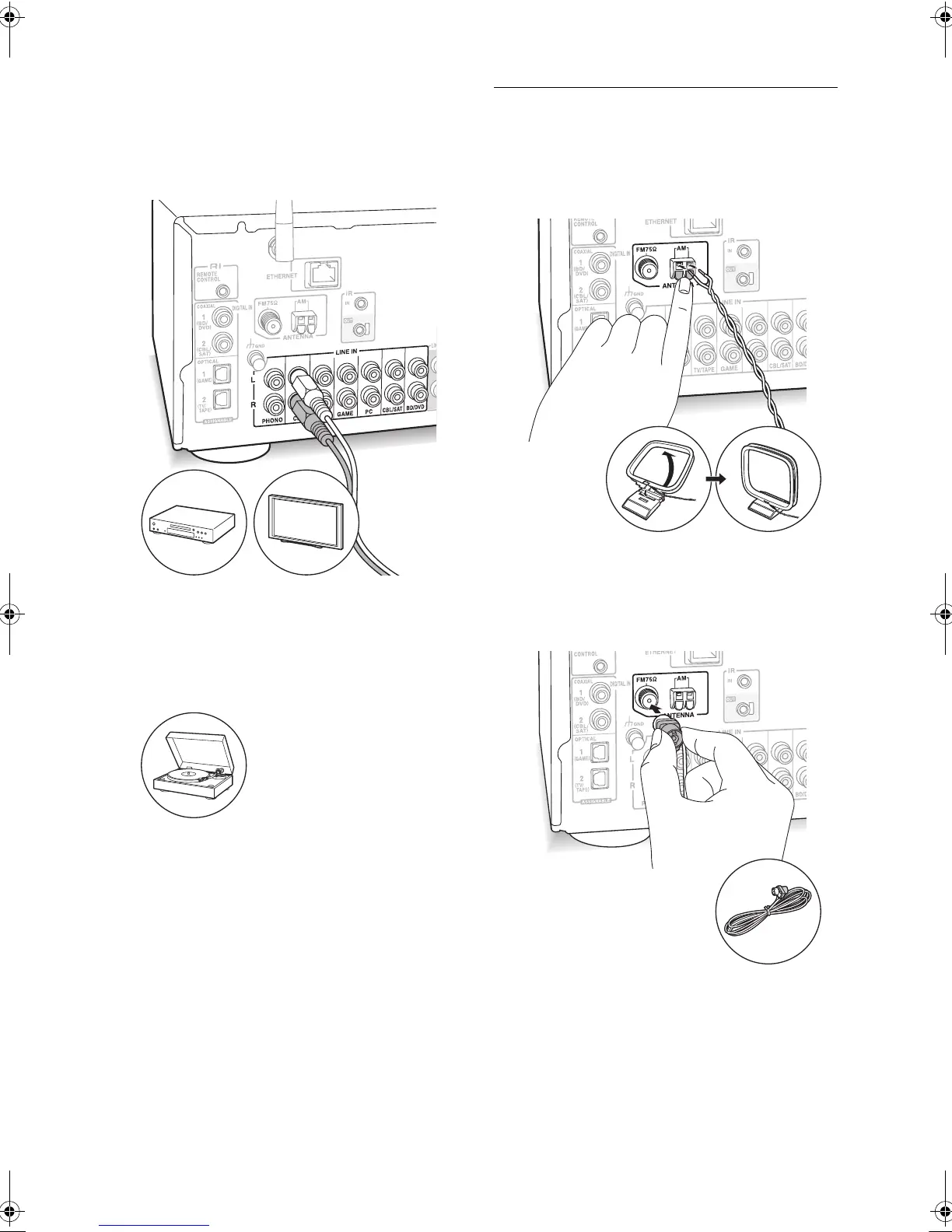

LINE IN connection
Use an RCA cable to connect to the LINE OUT terminal
on the player to one of the LINE IN terminal on this unit.
To play, select the terminal name with the INPUT
SELECTOR.
0
Connect the record player (MM cartridge) to the LINE
IN PHONO terminal. If the record player has a ground
wire, connect it to the GND terminal of this unit. Note
that if the connected record player has a built-in audio
equalizer, connect it to a LINE IN terminal other than
PHONO.
AM/FM antenna connections
Connect the antennas to listen to AM/FM broadcast.
0
You may be unable to receive radio transmissions in
some areas even if you connect an antenna.
AM antenna
Assemble the AM loop antenna (supplied) and connect it
to the AM terminal.
FM antenna
Connect the supplied FM antenna to the FM 75
h
terminal. Make sure the plug is pushed in all the way. Use
a tack or similar to fix the antenna to a wall.
TX-8160_mst.book 13 ページ ２０１５年６月９日 火曜日 午後５時１５分
