Speaker Layout

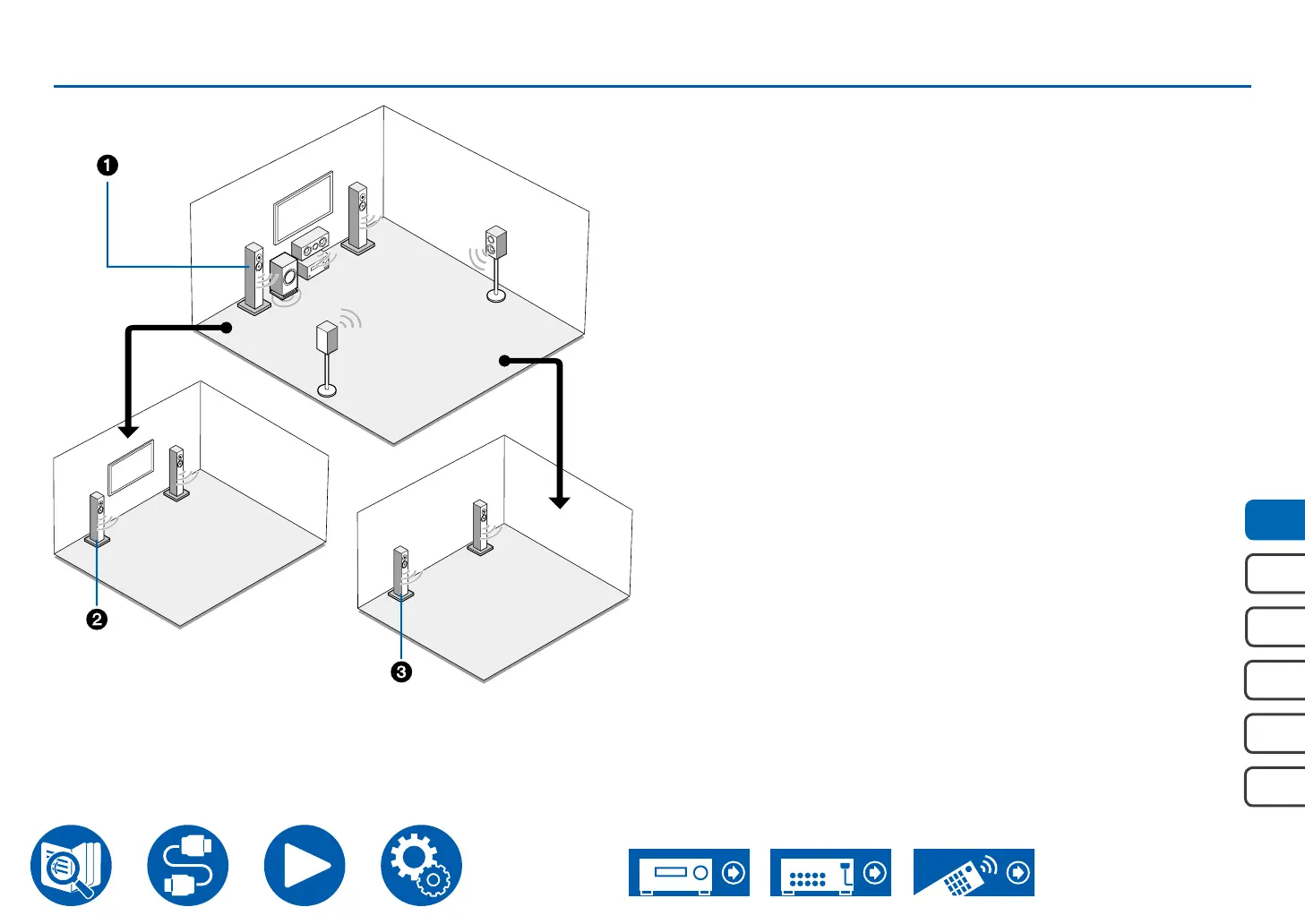

The listening room and the speaker layout
1. ZONE A Speakers
The speaker system set up in the main room (where this unit is located).
2. ZONE 2 Speakers
The 2 ch speaker system set up in a separate room (ZONE 2). This enables you
to play the same source in the main room and the separate at the same time, or
to play separate sources.
3. ZONE 3 Speakers
The 2 ch speaker system set up in a separate room (ZONE 3). This enables you
to play the same source in the main room and the separate at the same time, or
to play separate sources.
ZONE A
(Main Room)
ZONE 2
ZONE 3
