Connections

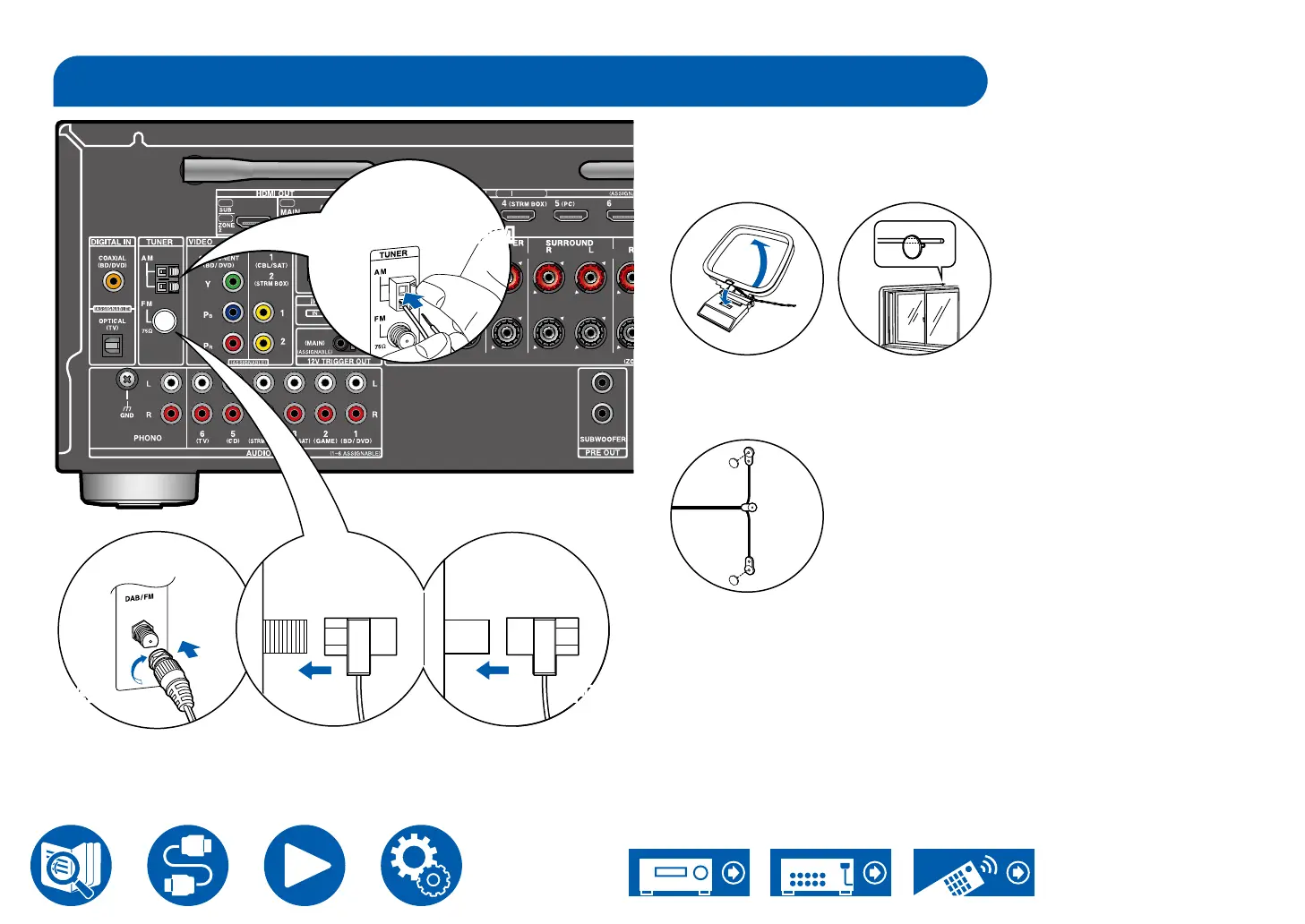

Connecting Antennas
North American, Australian and Asian models
Connect the antenna to this unit, and set up the antenna at the best position for
listening while receiving radio signals. Attach the indoor FM antenna to the wall
using push pins or adhesive tape.
a
c
European models
Make sure the plug is pushed in all the way, then x in place by turning the nut to
the right. Use a tack or similar to x the antenna to a wall.
b
8K HDCP 2.3
8K
4K
8K
b
DABDAB
c
c
A B
FMFM
a
AMAM
(European models)
(North American,
Australian and Asian
models)
(North American
models)
(Australian and
Asian models)
a AM loop antenna, b DAB/FM antenna, c Indoor FM antenna
