Speaker Connections

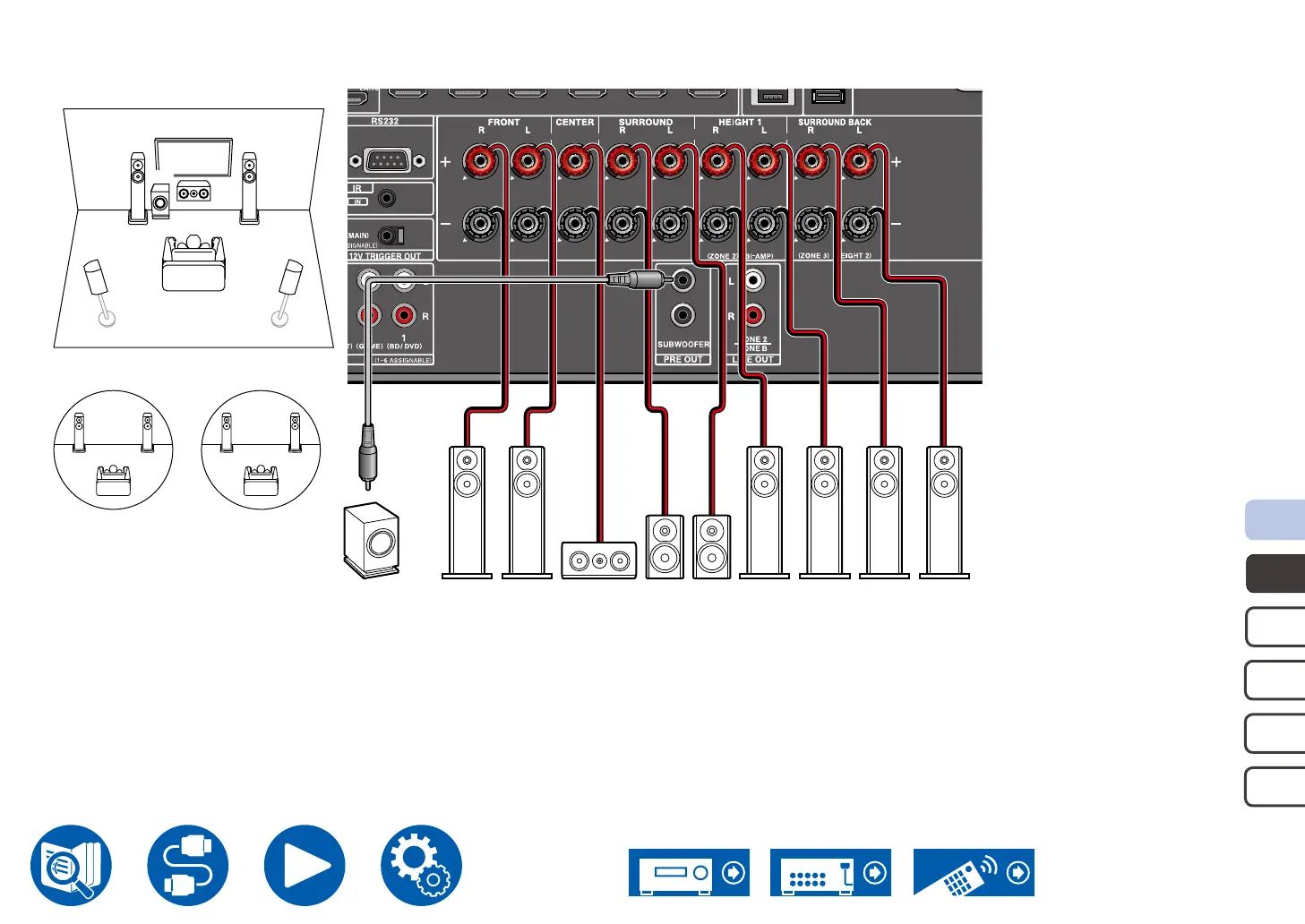

5.1 Channel System + ZONE SPEAKER
FL(Z3)FR(Z3)
FL FR
SL SR
C
SW
SW FR FL C SR SL FR(Z2) FL(Z2) FR(Z3) FL(Z3)
ZONE 2
FL(Z2)FR(Z2)
MAIN ROOM
ZONE 3
To output audio from an externally connected AV component to ZONE 3, use an analog audio cable for connection. Note that ZONE 3 output is not possible with the
connection using a HDMI cable, digital coaxial cable, or digital optical cable.
