Onkyo TX-NR7100

5.1. 2ch
7.1.2c h
5.1.4ch
5.1c h
7.1ch
40
Speaker Connections

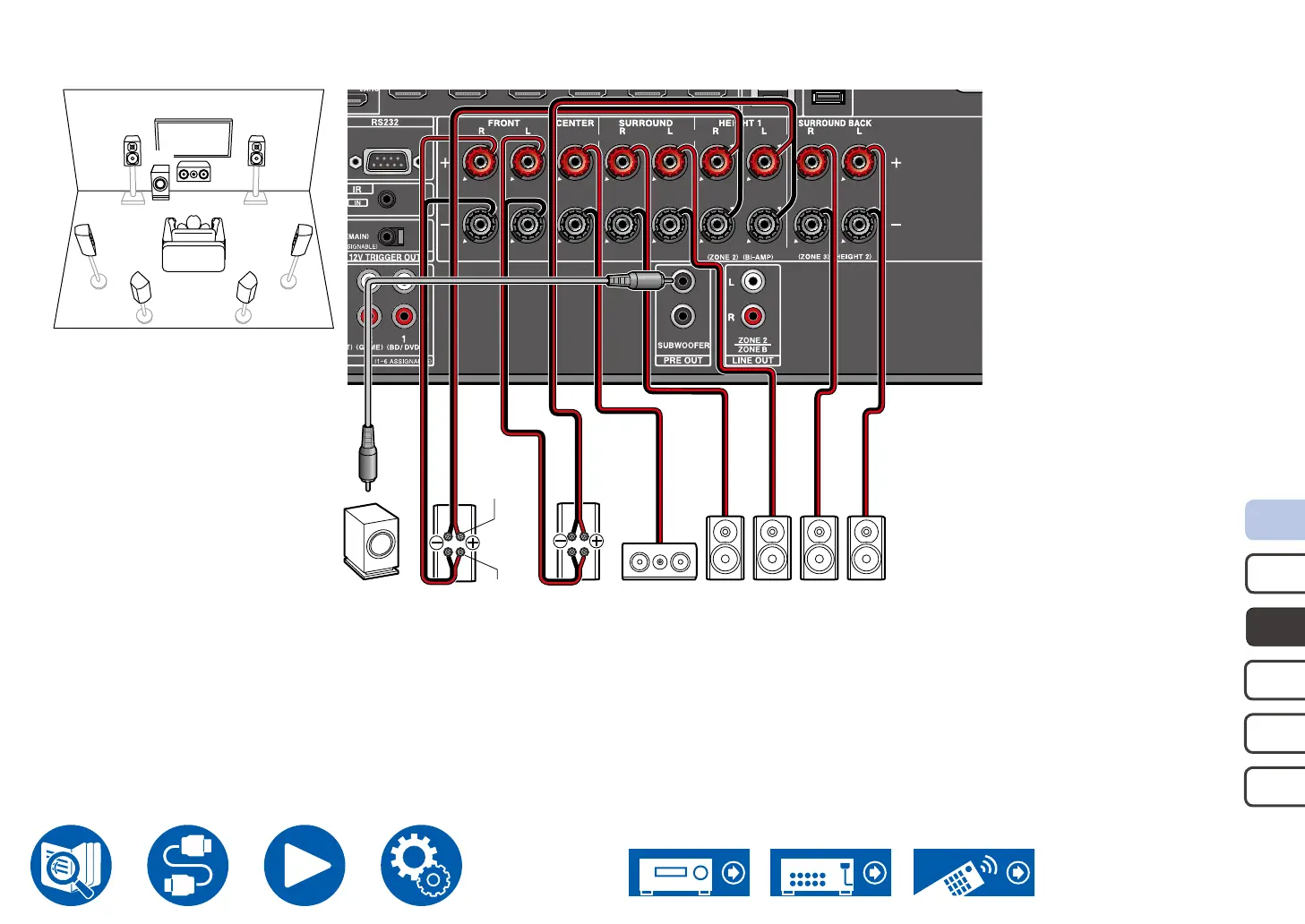

 7.1 Channel System (Bi-Amping the Speakers)
SL SR
SBL SBR
C
SW
FL FR
C SR SL
FR
FL
SW SBR SBL
For high-
frequency
For low-
frequency
Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of
your speakers as well.
