En-12
Connections
Connecting the AV
Receiver

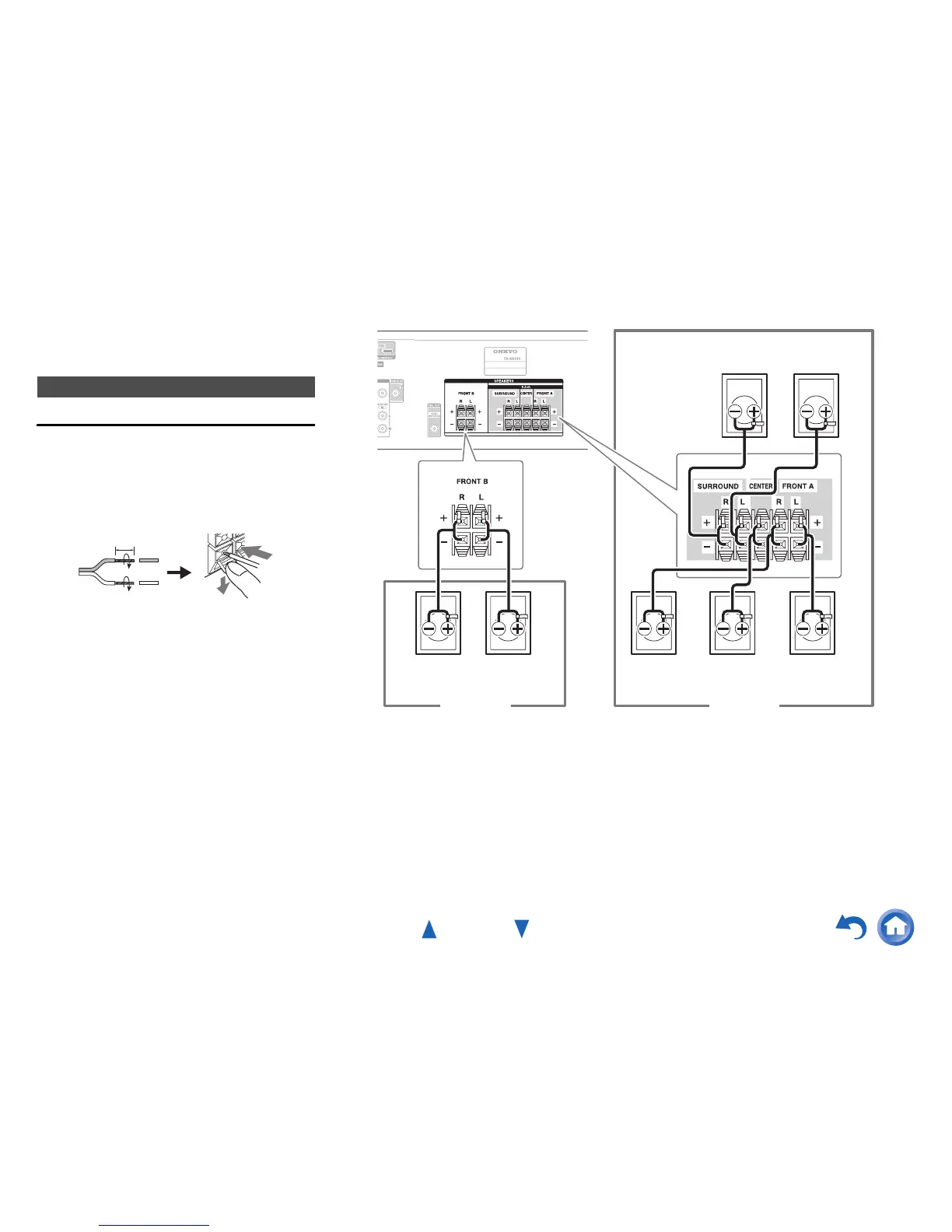

Connecting the Speaker Cables
The following illustration shows how to connect the
speakers to each pair of terminals.
■ Push-type speaker terminals
Strip 3/8" to 1/2" (10 to 12 mm) of insulation from the ends
of the speaker cables, and twist the bare wires tightly, as
shown.
Connecting Your Speakers
3/8" to 1/2" (10 to 12 mm)
Surround
right
Surround
left
Front B right Front B left Front A leftFront A right Center
Speakers ASpeakers B
