Connecting Your Components
—Continued

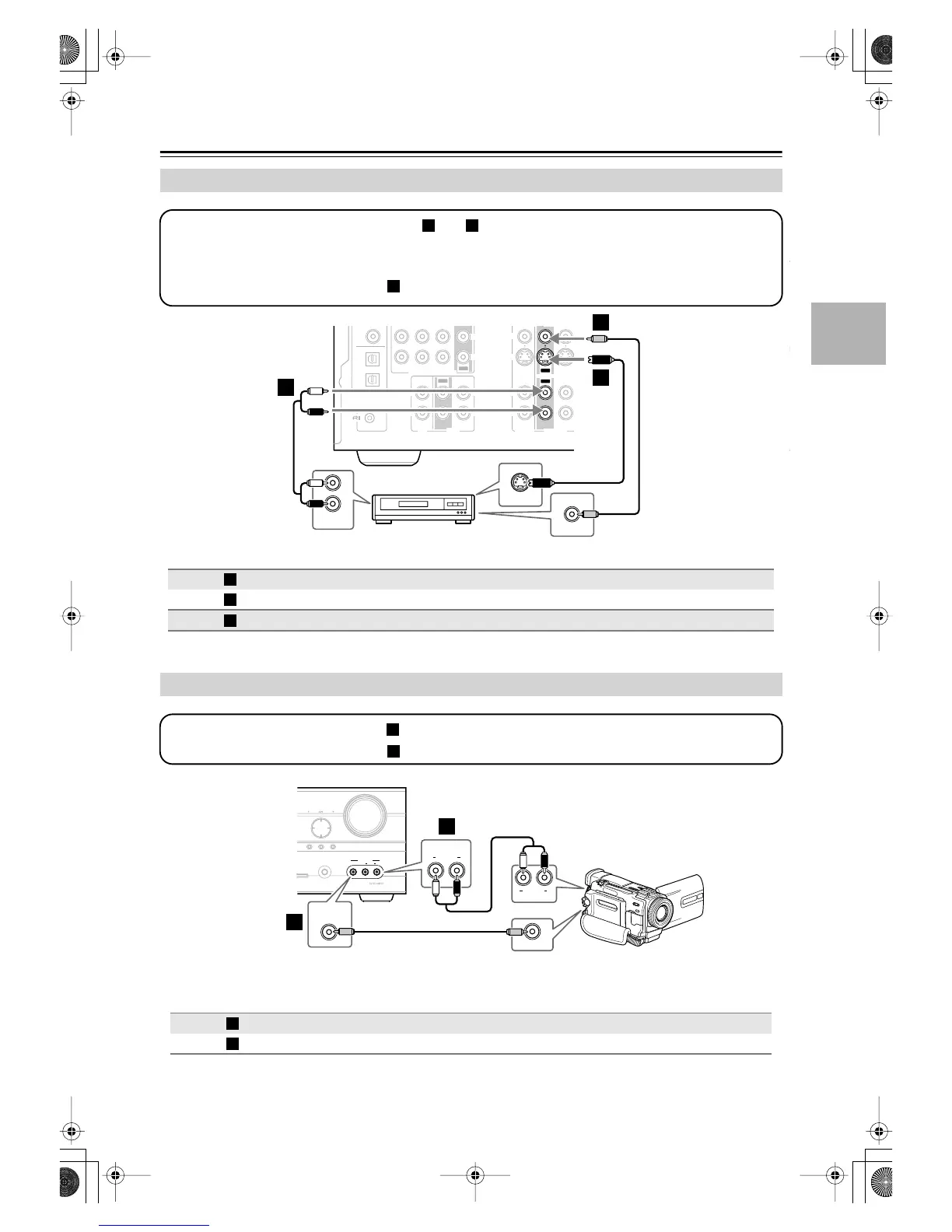

Connecting a VCR or DVD Recorder for Recording
Connection AV receiver Signal flow VCR or DVD recorder Picture quality
VCR/DVR OUT S
⇒
S-Video input
Better
VCR/DVR OUT V
⇒
Composite video input Standard
VCR/DVR OUT L/R
⇒
Analog audio L/R input
—
Connecting a Camcorder, Games Console, or Other Device
Connection AV receiver Signal flow Camcorder or console
AUX INPUT VIDEO
⇐
Composite video output
AUX INPUT L-AUDIO-R
⇐
Analog audio L/R output
OUT
OUT
CBL/SAT IN
IN IN IN
IN
IN
IN IN
VCR/DVR IN
DVD IN
OUT
COMPONENT VIDEO
Y
C
B/PB
CR/PR
L
R
L
R
ANTENNA
FM
AM
75
SUB
WOOFER
FRONT
SURROUND
SURR BACK
CENTER
CD
RR
LL
TAPE
OUT
XM
SIRIUS
CBL/SAT
CBL/SAT
VCR/DVR
VCR/DVR
DVD
DVD
R
L
R
L
S
V
R
L
MONITOR
OUT
S
V
PRE OUT
SUB
WOOFER
FRONT
SPEAKERS B
SURROUND BACK
SPEAKERS
SURROUND
SPEAKERS
FRONT
SPEAKERS A
REMOTE
CONTROL
ASSIGNABLE
COAX-
IAL
OPTICAL
1
(DVD)
2
(CBL/SAT)
1
(VCR/DVR)
2
(CD)
DIGITAL IN
L
R
AUDIO
IN
S VIDEO IN
VIDEO IN
a
A
B
B
Step 1: Choose a video connection from and .
TX-SR505/TX-SR505E/TX-SR8550: The video source to be recorded must be connected to the AV receiver via
the same type of connection.
Step 2: Make the audio connection .
A B
a
VCR, DVD recorder
A
B
a
MASTER VOLUME
VIDEO
TUNING MODE
SETUP ENTER
SETUP MIC
RETURN
AUDIOLR
AUX INPUT
TUNING
PRESET
VIDEO OUT
AUDIO
AUX INPUT
LR
AUDIO
OUT
LR
AUX INPUT
VIDEO
a
A
Step 1: Make the video connection .
Step 2: Make the audio connection .
A
a
Camcorder, games console, etc.
A
a
