Index parts and facilities

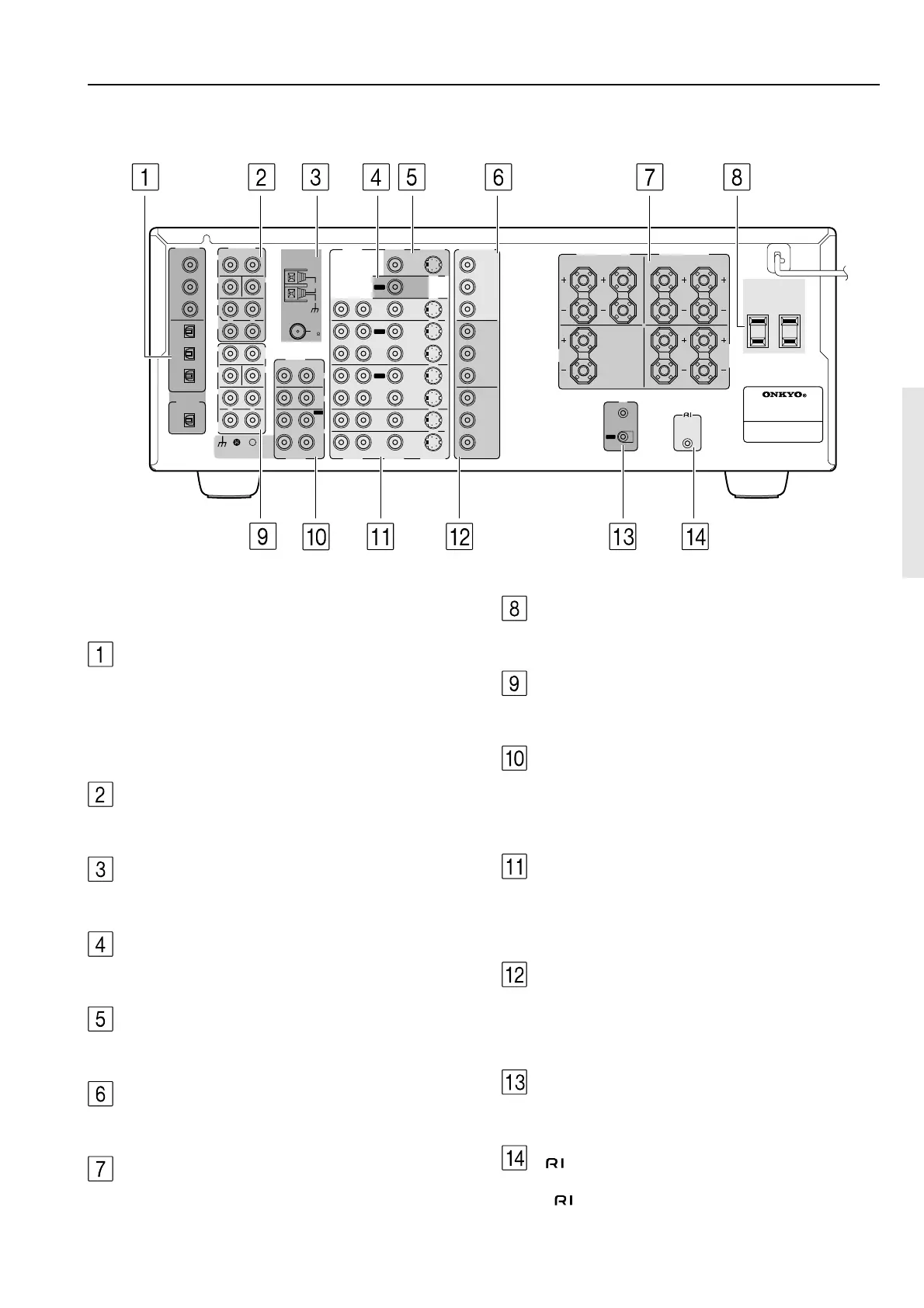

Rear panel
SURR
BACK/
ZONE 2
SPEAKERS
AUDIO
VIDEO
S VIDEO
MONITOR
OUT
R
L
IN
IN
IN
IN
IN
ZONE 2
DVD
VIDEO 1
VIDEO 2
VIDEO 3
VIDEO 4
AUDIO
VIDEO
S VIDEO
COMPONENT
VIDEO
Y
P
B
P R
OUTPUT
INPUT 1
Y
P
B
P R
INPUT 2
Y
P
B
P R
FRONT SPEAKERS
L
RL
R
SURR SPEAKERS
CENTER
SPEAKER
R
L
AC OUTLETS
AC 120 V 60 Hz
SWITCHED
TOTAL 120W 1A MAX.
AV RECEIVER
MODEL NO. TX
-
SR 800
R
L
OUT
OUT
OUT
I R
IN
OUT
REMOTE
CONTROL
PHONO
DIGITAL
INPUT
PRE OUT
DIGITAL
OUTPUT
OPT
OPT
2
1
2
3
FRONT
SUB
SURR
R
L
AUDIO
R
L
CD
TAPE
R
L
AUDIO
1
3
GND
SURR
BACK/
ZONE 2
IN
OUT
COAX
R
L
MULTI CH
INPUT
FRONT
SUB
SURR
SURR
BACK
CENTER
R
L
R
L
AM
FM
75
CENTER
ANTENNA
4 OHMS MIN. OR
6 OHMS MIN.
/SPEAKER
CAUTION
:
SPEAKER
IMPEDANCE
SEE
INSTRUCTION
MANUAL FOR
CORRECT
SETTINGS.
For more information regarding connection procedures, see pages
indicated in brackets [ ].
DIGITAL INPUT/OUTPUT [15-19]
These jacks are for connecting components with digital input and
output capabilities. To connect a CD player, see page 15; to connect
an MD or CD recorder, see page 15; to connect a DAT deck, see
page 15; to connect a DVD player, see page 16; to connect a DVD
recorder, see page 18; and to connect a digital satellite tuner, see
page 19.
PRE OUT [27]
To use the TX-SR800 as a preamplifier, connect a power amplifier to
this jack.
ANTENNA [22-23]
These jacks are for connecting the FM indoor antenna and AM loop
antenna that are supplied with the TX-SR800.
ZONE 2 VIDEO OUT [24]
These jacks are for connecting the components that will be used in
the remote zone (Zone 2).
MONITOR OUT VIDEO/S VIDEO [17]
These jacks are for connecting to the video input jacks on television
monitors or projectors.
COMPONENT VIDEO OUTPUT [17]
These jacks are for connecting to the component video input jacks on
television monitors or projectors.
SPEAKERS [20-21]
These terminals are for connecting the speakers.
AC OUTLETS [26]
This AC outlet is provided to plug in the power cord from another
component.
MULTI CH INPUT [27]
This connector is for connecting components with a multi-channel
output.
PHONO/CD/TAPE AUDIO IN/OUT [15]
These connectors are for connecting to the audio input and output
jacks on audio components. To connect a turntable, see page 15; to
connect a CD player, see page 15; and to connect a cassette tape
deck, MD recorder, or CD recorder, see page 15.
DVD/VIDEO1-4 IN/OUT [16-19]
These connectors are for connecting to the video input and output
jacks on video components. To connect a DVD player, see page 16;
to connect a DVD recorder, see page 18; to connect a VCR, see page
17; and to connect a satellite tuner, see page 19.
COMPONENT VIDEO INPUT1/2 [16, 18]
These connectors are for connecting to the component video outputs
of video components that have them. To connect a DVD player, see
page 16; to connect a DVD recorder, see page 18; and to connect a
satellite tuner, see page 19.
IR IN/OUT [25]
These connectors are for connecting the remote sensor of a multi-
room kit (sold separately).
[26]
This jack is for connecting other Onkyo components equipped with
the same
terminal.
