Remote Controller
—Continued

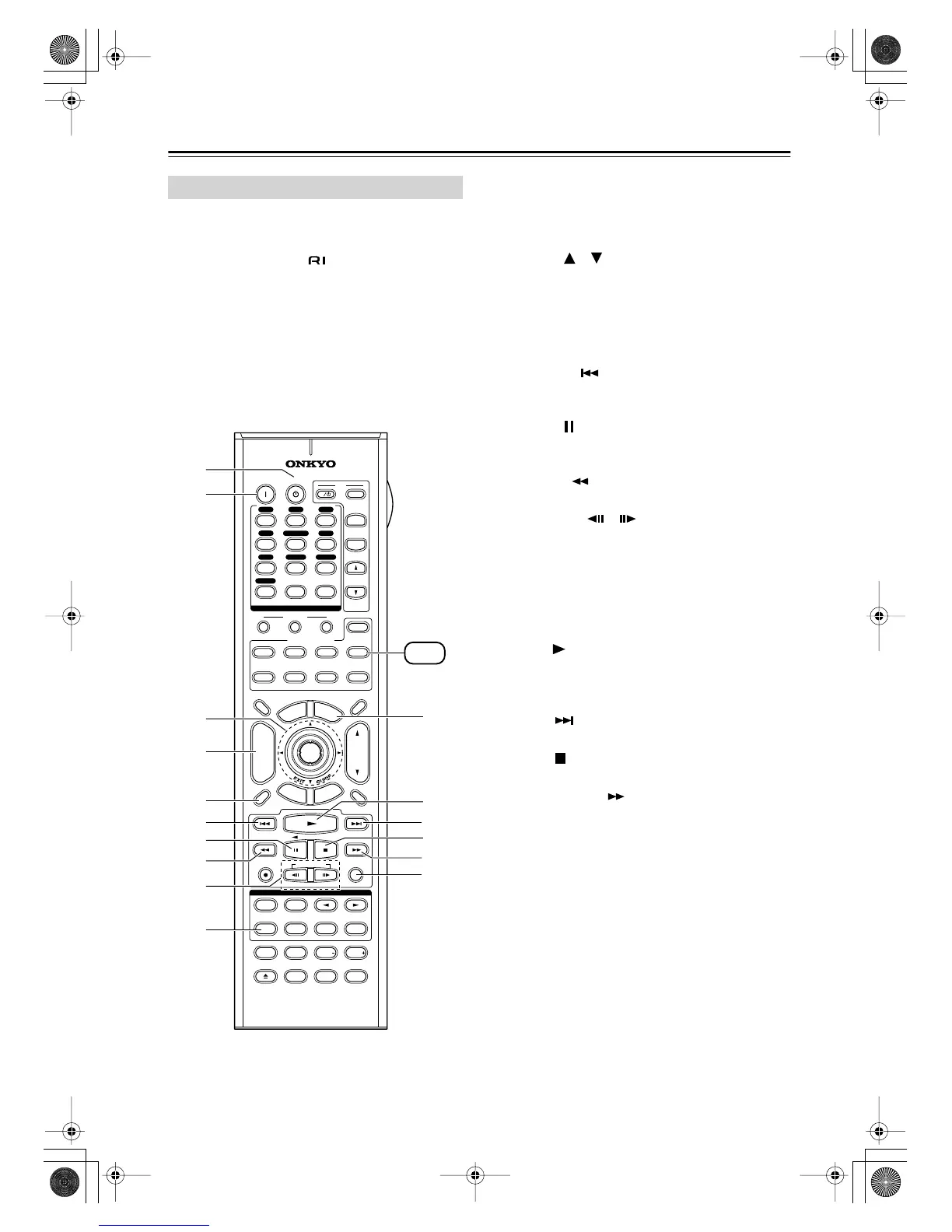

HDD mode is for controlling Onkyo’s next generation
HDD-compatible components. As of 2005, it can be used
with the Onkyo DS-A1 Remote Interactive Dock and
Apple iPod connected via .
When Using the DS-A1:
• Connect the DS-A1 to the TAPE IN or VIDEO 3 IN
jacks.
• Set the DS-A1’s RI MODE switch to HDD.
• Set the AV receiver’s input display to HDD (see
page 46).
• Refer to the DS-A1’s instruction manual.
A
STANDBY button
Turns off the HDD-compatible component.
B
ON button*
Turns on the HDD-compatible component.
C
Arrow [ ]/[ ] and ENTER buttons*
Used to navigate menus and select items.
D
ALBUM +/– button*
Selects the next or previous album.
E
DISPLAY button*
Turns on the backlight for 30 seconds.
F
Previous [ ] button
Restarts the current song. Press it twice to select the
previous song.
G
Pause [ ] button
Pauses playback. (With 3rd generation iPods, it
works as a Play/Pause button.)
H
Rewind [ ] button
Press and hold to rewind.
I
PLAYLIST [ ]/[ ] buttons*
Used to select the previous or next playlist on the
HDD-compatible component.
J
REPEAT button*
Used with the repeat function.
K
MENU button*
Used to access menus.
L
Play [ ] button
Starts playback. If the component is off, it will turn
on automatically. (With 3rd generation iPods, this
button works as a Play/Pause button.)
M
Next [ ] button
Selects the next song.
N
Stop [ ] button
Stops playback and displays a menu.
O
Fast Forward [ ] button
Press and hold to fast forward.
P
RANDOM button*
Used with the shuffle function.
* Buttons marked with an asterisk (*) are not supported by
3rd generation iPods.
HDD Mode
