Onkyo TX-SR803E

32
Connecting Your Components —Continued

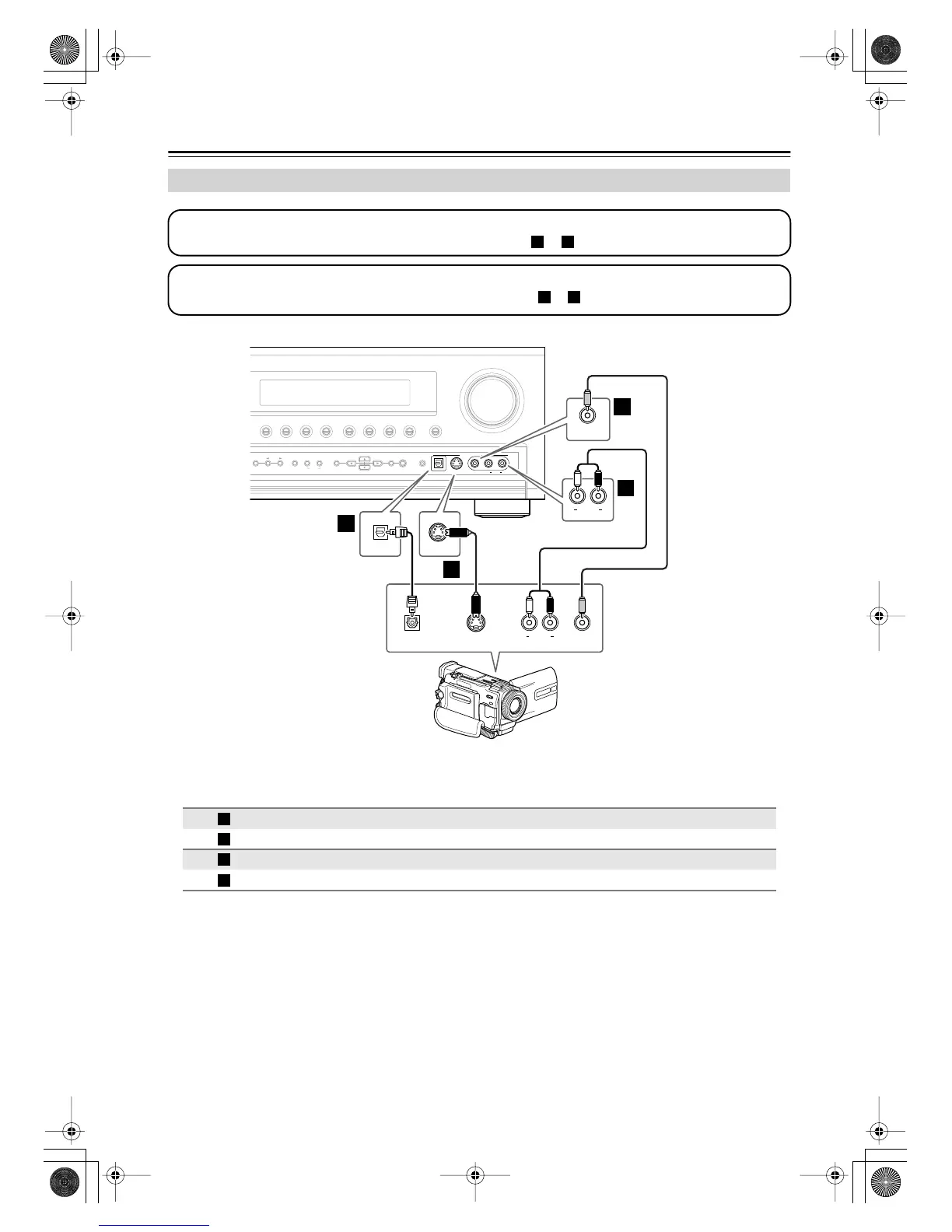

Connecting a Camcorder, Games Console, or Other Device
Connection AV receiver Signal flow Camcorder or console
VIDEO 4 INPUT S VIDEO
⇐
S-Video output
VIDEO 4 INPUT VIDEO
⇐
Composite video output
VIDEO 4 INPUT L/R
⇐
Analog audio L/R output
VIDEO 4 INPUT DIGITAL
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches the camcorder or console ( or ), and then make the connection.
A
B
Step 2: Audio Connection
Choose an audio connection that matches the camcorder or console ( or ), and then make the connection.
a b
MASTER VOLUME
PHONO DISPLAYTUNERTAPE
VIDEO 4VIDEO 3VIDEO 2VIDEO 1
CD
STEREO
DIMMER MEMORY
LISTENING MODE
TUNING
MODE
SETUP
PRESET PRESET
TUNING
RETURN
ENTER SETUP MIC
VIDEO
S VIDEO
DIGITAL
VIDEO 4 INPUT
AUDIOLR
CLEAR
DIGITAL S VIDEO
INPUT INPUT
OPTICAL
OUT
AUDIO
INPUT
VIDEO
INPUT
LR
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
b
A
a
B
Camcorder, games console, etc.
A
B
a
b
