Playing Your AV Components
Basic AV Receiver Operation
PUSH TO OPEN
STANDBY/ON
STANDBY
MASTER VOLUME
PHONO
ZONE 2
DISPLAY
PURE AUDIO
TUNERTAPE
VIDEO 4VIDEO 3VIDEO 2VIDEO 1
DVDMULTI CH CD
OFF
ON
POWER
3
1
10
--/---
11 12
REMOTE MODE
HDD RECEIVER
TAPE/AMP
DVD CD
ZONE2
SAT TV VCR CABLE
MDCDR
+
-
T V CH
T
V VOL
ENTER
S
E
T
U
P
T
O
P
M
E
N
U
M
E
N
U
VOL
+
-
CH
DISPLAY
PREV
CH
DIMMER
SLEEP
MUTING
INPUT SELECTOR
32
MACRO
1
+
10 0
CLEAR
12
3
456
789
INPUT
I
ON STANDBY
T
V
CD
V1 V2 V3
MULTI CH DVD
TUNER
PHONO
DISC
ALBUM
V4
TAPE
R
E
T
U
R
N
3
1
1
1

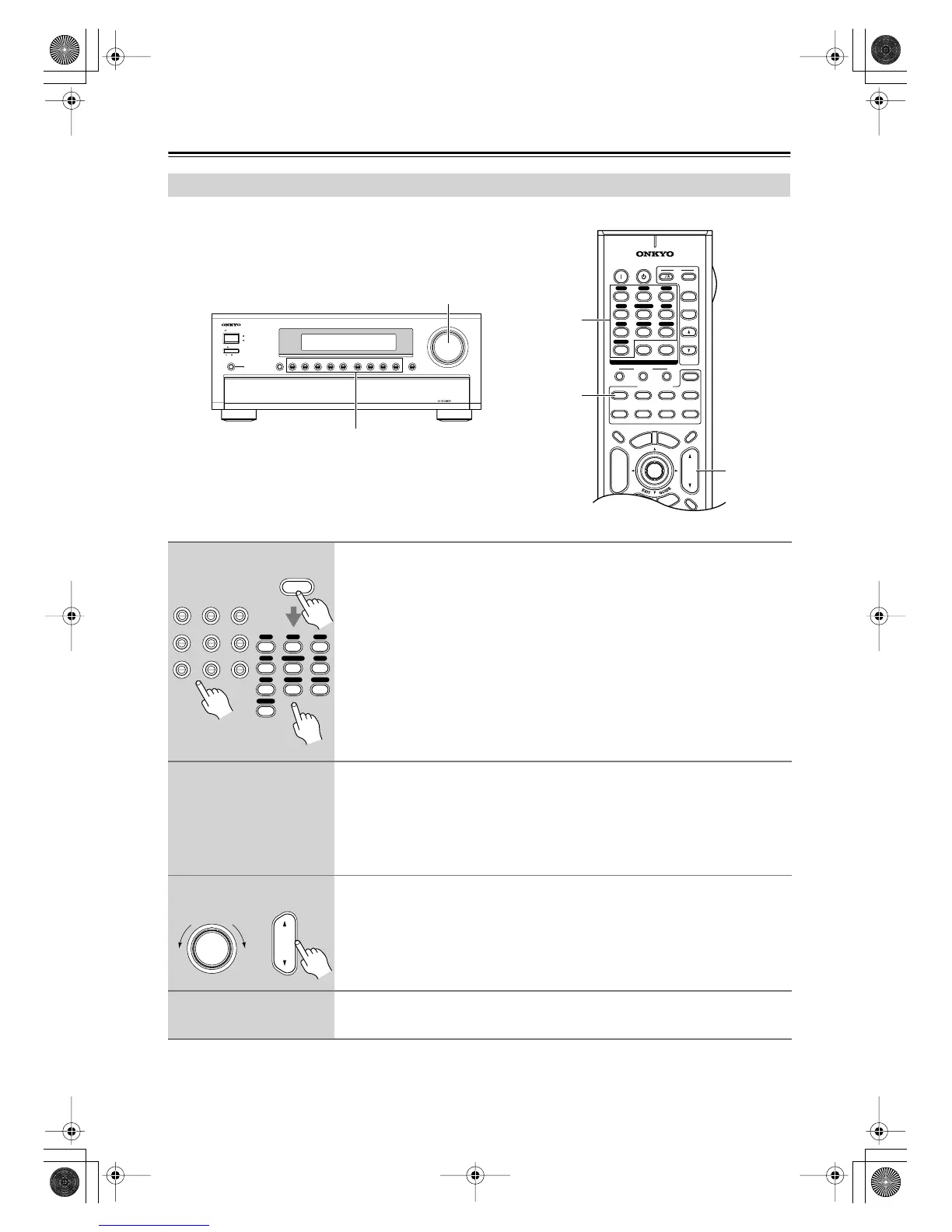

Use the AV receiver’s input selector buttons to select the input source.
To select the input source with the remote controller, press the
[RECEIVER] REMOTE MODE button, and then use the INPUT SELECTOR
buttons.
On the remote controller, the [V1], [V2], [V3], and [V4] buttons select the VIDEO 1,
VIDEO 2, VIDEO 3, and VIDEO 4 input sources respectively.
2
Start playback on the source component.
To watch a DVD or other video source, on your TV, select the video input that’s con-
nected to the AV receiver’s COMPONENT VIDEO OUT, HDMI OUT, or MONITOR
OUT.
On some DVD players, you many need to change the digital or HDMI audio output
settings.
3
To adjust the volume, use the MASTER VOLUME control or the remote
controller’s [VOL] button.
Since the AV receiver is designed for home theaters, it has a wide volume range for
precise adjustment. The volume can be set to – ∞ dB, –81 dB, –80 dB through +18 dB.
4
Select a listening mode and enjoy!
See “Using the Listening Modes” on page 60.
RECEIVER
DVD VIDEO 1 VIDEO 2
VIDEO 3 VIDEO 4 PHONO
TAPE
TUNER CD
+
10
12
3
456
789
CD
V1 V2 V3
MULTI CH DVD
TUNER
PHONO
V4
TAPE
Remote
controller
AV receiver
VOL
MASTER VOLUME
Remote
controller
AV receiver
