Onkyo TX-SR876

29
Connecting the AV Receiver—Continued
The ZONE 2 L/R and SURR BACK L/R terminal posts
can be used with front Speakers B and surround back
speakers respectively, or bi-amped to provide separate
tweeter and woofer feeds for front Speakers B, providing
improved bass and treble performance.
• When bi-amping is used, the AV receiver is able to
drive up to 5.1 speakers in the main room.
• For bi-amping, the ZONE 2 L/R terminal posts con-
nect to the front speakers’ tweeter terminals. And the
SURR BACK L/R terminal posts connect to the front
speakers’ woofer terminals.
• Once you’ve completed the bi-amping connections
shown below and turned on the AV receiver, you must
set the “Speaker Type: Front(Speaker B)” setting to
“Bi-Amp” to enable bi-amping (see page 61).
• When front Speakers B are biamped, front Speakers A
must be wired normally.
Important:
• When making the bi-amping connections, be sure
to remove the jumper bars that link the speakers’
tweeter (high) and woofer (low) terminals.
• Bi-amping can only be used with speakers that support
bi-amping. Refer to your speaker manual.

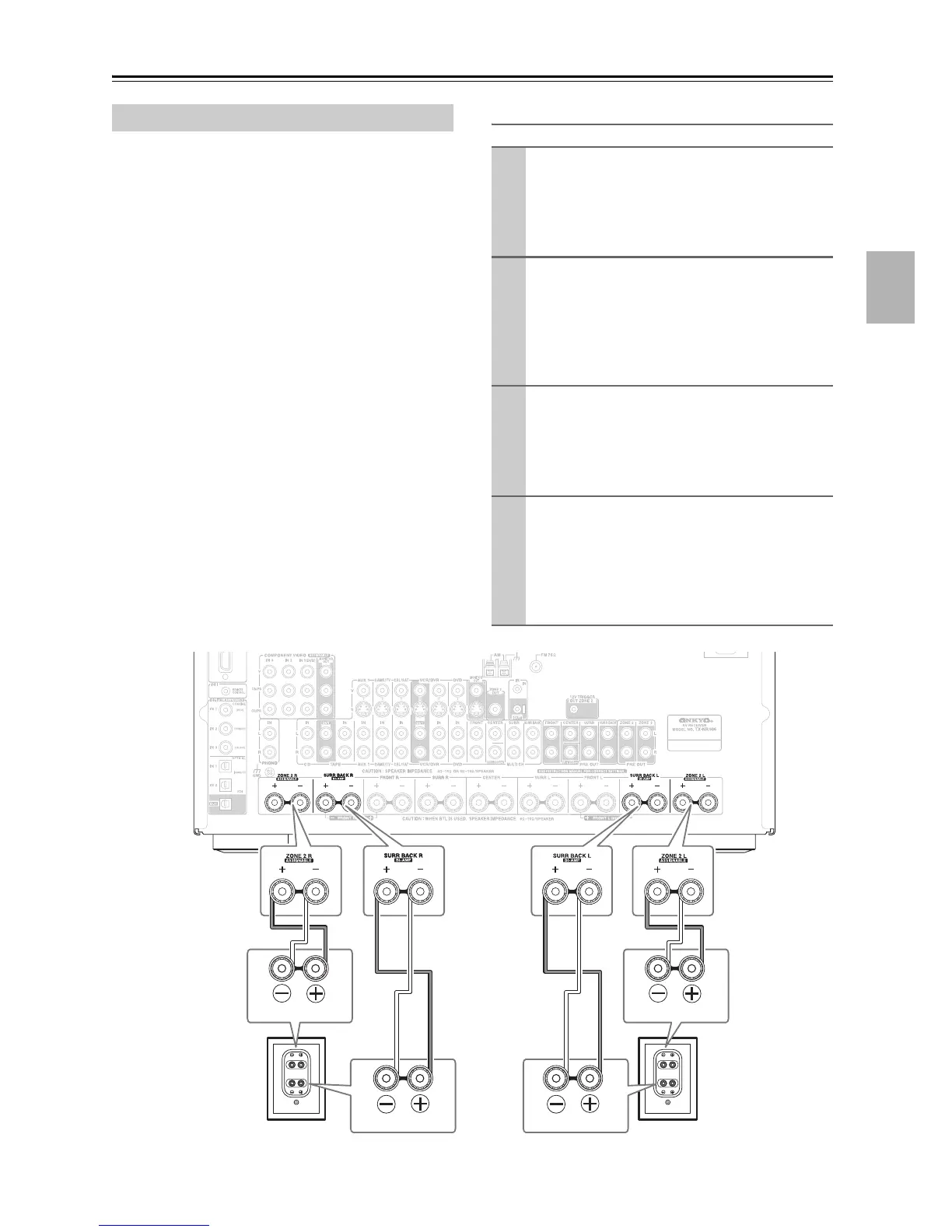

Bi-amping Speaker Hookup
Bi-amping Front Speakers B
1
Connect the AV receiver’s ZONE 2 R positive (+)
terminal to the right speaker’s positive (+) tweeter
(high) terminal. And connect the AV receiver’s
ZONE 2 R negative (–) terminal to the right
speaker’s negative (–) tweeter (high) terminal.
2
Connect the AV receiver’s SURR BACK R posi-
tive (+) terminal to the right speaker’s positive (+)
woofer (low) terminal. And connect the AV
receiver’s SURR BACK R negative (–) terminal
to the right speaker’s negative (–) woofer (low)
terminal.
3
Connect the AV receiver’s ZONE 2 L positive (+)
terminal to the left speaker’s positive (+) tweeter
(high) terminal. And connect the AV receiver’s
ZONE 2 L negative (–) terminal to the left
speaker’s negative (–) tweeter (high) terminal.
4
Connect the AV receiver’s SURR BACK L posi-
tive (+) terminal to the left speaker’s positive (+)
woofer (low) terminal. And connect the AV
receiver’s SURR BACK L negative (–) terminal to
the left speaker’s negative (–) woofer (low) ter-
minal.
Woofer (low)
Right speaker
Left speaker
Tweeter (high)
Tweeter (high)
Woofer (low)
