Connecting the AV Receiver—Continued
If you want to use a more powerful power amplifier and use the AV receiver solely as a preamp, connect the amp to the
PRE OUT jacks, and connect all speakers and the subwoofer to the power amplifier. If you have a powered subwoofer,
connect it to the AV receiver’s PRE OUT: SUBWOOFER jack.

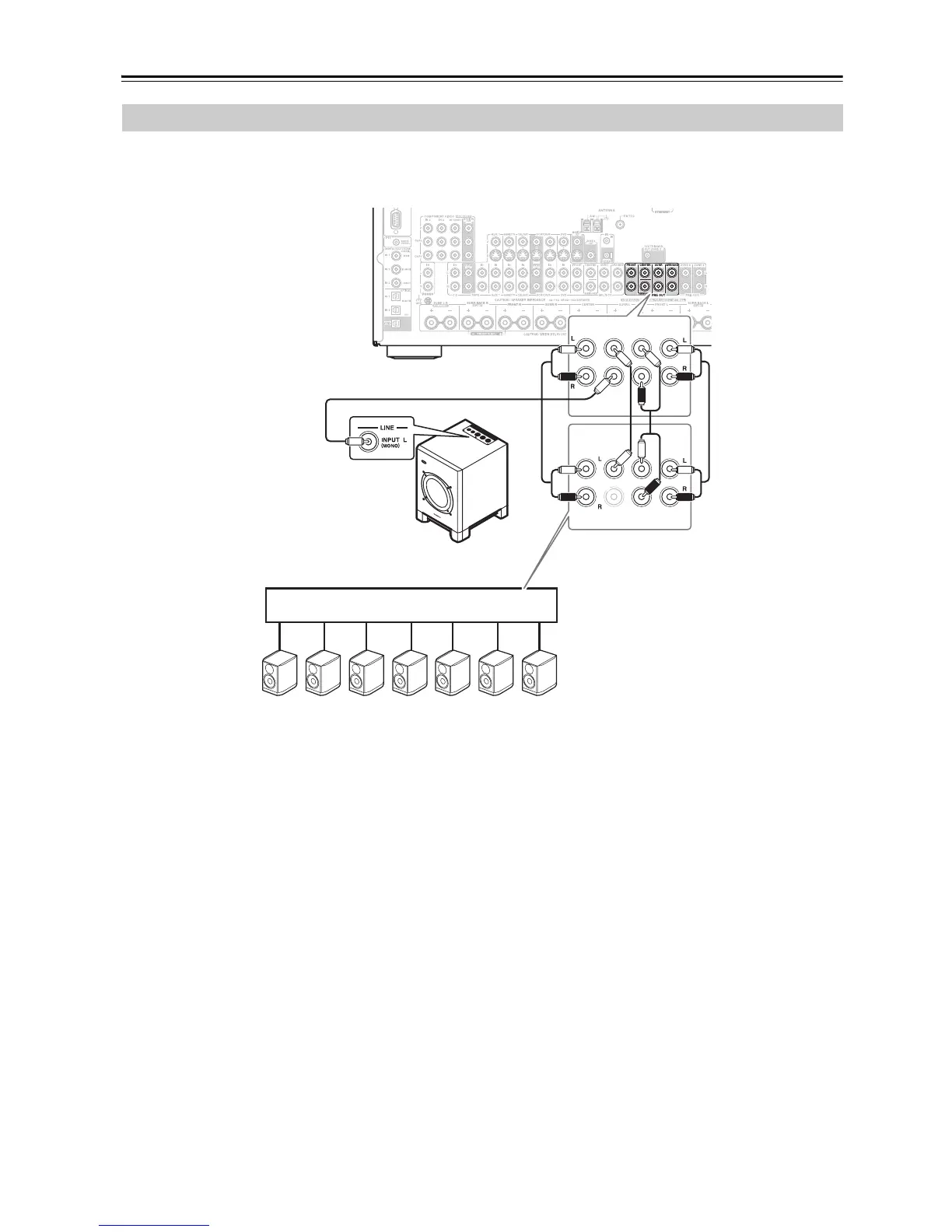

Connecting a Power Amplifier
2 3 4 5 6 71
FRONT CENTER SURR
SURR BACK
SUBWOOFER
FRONT CENTER SURR
PRE OUT
SURR BACK
SUBWOOFER
1. Front left speaker
2. Center speaker
3. Front right speaker
4. Surround left speaker
5. Surround right speaker
6. Surround back left speaker
7. Surround back right speaker
Power amplifier
See “Connecting a Powered Subwoofer”
on page 24 for more information.
Powered subwoofer
