Onkyo TX-SV535 Instruction Manual

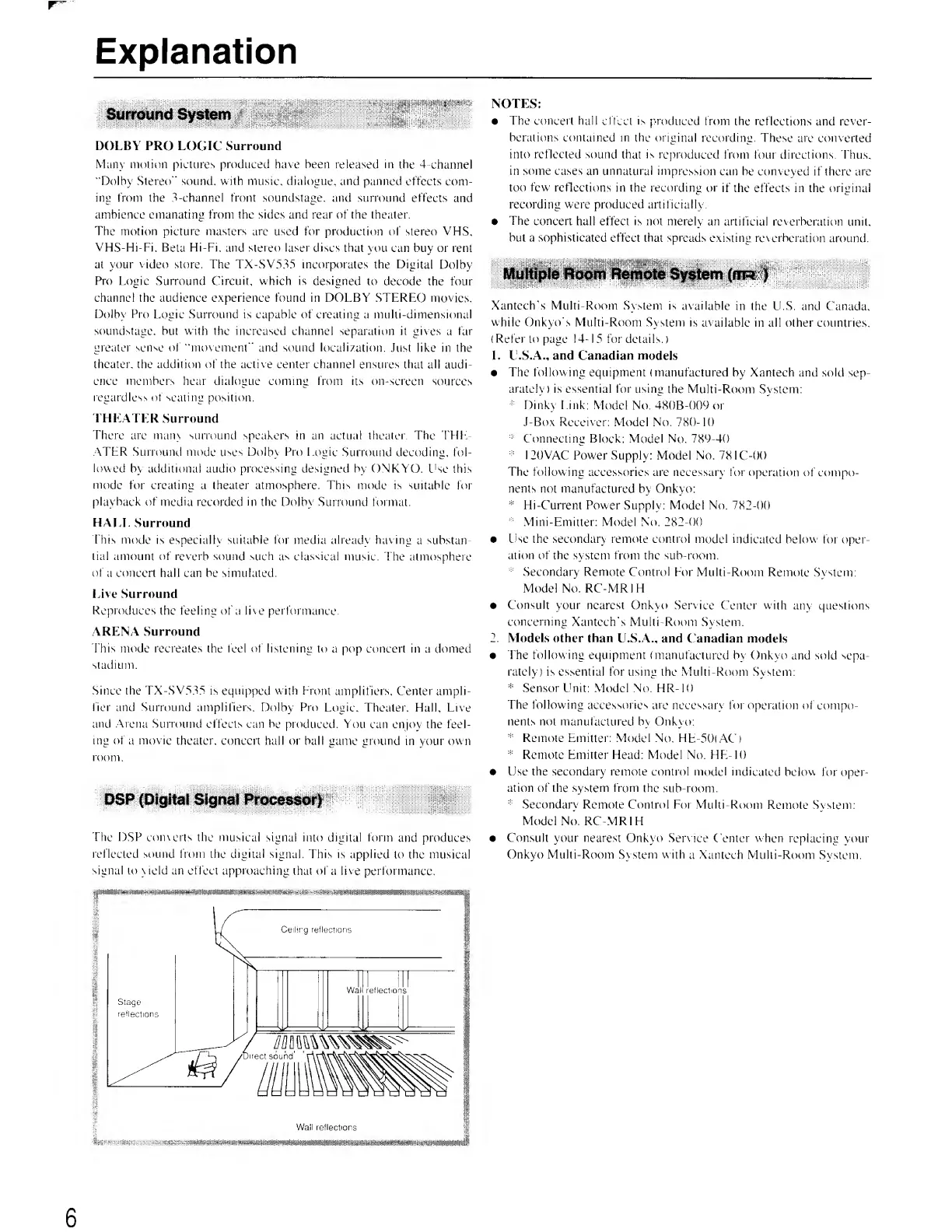

Explanation
DOLBY PRO LOGIC Surround
Many motion pictures produced have been released in the 4-channel
"Dolby Stereo" sound, with music, dialogue, and panned effects com¬
ing from the 3-channel front soundstage. and surround effects and
ambience emanating from the sides and rear of the theater.
The motion picture masters are used for production of stereo VHS,
VHS-Hi-Fi. Beta Hi-Fi. and stereo laser discs that you can buy or rent
at your video store. The TX-SV335 incorporates the Digital Dolby
Pro Logic Surround Circuit, which is designed to decode the four
channel the audience experience found in DOLBY STEREO movies.
Dolby Pro Logic Surround is capable of creating a multi-dimensional
soundstage. but with the increased channel separation it gives a far
greater sense of "movement" and sound localization. Just like in the
theater, the addition of the active center channel ensures that all audi¬
ence members hear dialogue coming from its on-screen sources
regardless of seating position.
THEATER Surround
There are many surround speakers in an actual theater. The THE¬
ATER Surround mode uses Dolby Pro Logic Surround decoding, fol¬
lowed by additional audio processing designed by ONKYO. Use this
mode for creating a theater atmosphere. This mode is suitable for
playback of media recorded in the Dolby Surround format.
HALL Surround
This mode is especially suitable for media already having a substan¬
tial amount of reverb sound such as classical music. The atmosphere
of a concert hall can be simulated.
Live Surround
Reproduces the feeling of a live performance.
ARENA Surround
This mode recreates the feel of listening to a pop concert in a domed
stadium.
Since the TX-SV535 is equipped with Front amplifiers. Center ampli¬
fier and Surround amplifiers. Dolby Pro Logic. Theater. Hall, Live
and Arena Surround effects can be produced. You can enjoy the feel¬
ing of a movie theater, concert hall or ball game ground in your own
room.
The DSP converts the musical signal into digital form and produces
reflected sound from the digital signal. This is applied to the musical
signal to yield an effect approaching that of a live performance.
NOTES:
• The concert hall effect is produced from the reflections and rever¬
berations contained in the original recording. These are converted
into reflected sound that is reproduced from four directions. Thus,
in some cases an unnatural impression can be conveyed if there are
too few reflections in the recording or if the effects in the original
recording were produced artificially.
• The concert hall effect is not merely an artificial reverberation unit,
but a sophisticated effect that spreads existing reverberation around.
Xantcch’s Multi-Room System is available in the U.S. and Canada,
while Onkyo’s Multi-Room System is available in all other countries.
(Refer to page 14-13 for details.)
1. L.S.A., and Canadian models
• The following equipment (manufactured by Xantech and sold sep¬
arately) is essential for using the Multi-Room System:
Dinky Link: Model No. 480B-009 or
J-Box Receiver: Model No. 780-10
;; Connecting Block: Model No. 789-40
:: 120VAC Power Supply: Model No. 781C-00
The following accessories are necessary for operation of compo¬
nents not manufactured by Onkyo:
* Hi-Current Power Supply: Model No. 782-00
Mini-Emitter: Model No. 282-00
• Use the secondary remote control model indicated below for oper¬
ation of the system from the sub-room.
* Secondary Remote Control For Multi-Room Remote System:
Model No. RC-MR1H
• Consult your nearest Onkyo Service Center with any questions
concerning Xantcch's Multi-Room System.
2. Models other than U.S.A., and Canadian models
• The following equipment (manufactured by Onkyo and sold sepa¬
rately) is essential for using the Multi-Room System:
* Sensor Unit: Model No. HR-10
The following accessories are necessary for operation of compo¬
nents not manufactured by Onkyo:
* Remote Emitter: Model No. HE-50(AC)
* Remote Emitter Head: Model No. HFi-K)
• Use the secondary remote control model indicated below for oper¬
ation of the system from the sub-room.
Secondary Remote Control For Multi-Room Remote System:
Model No. RC-MRIH
• Consult your nearest Onkyo Service Center when replacing your
Onkyo Multi-Room System with a Xantech Multi-Room System.

Onkyo TX-SV535 Specifications

Amplifier Section

alternate channel attenuation	55 dB
power output stereo mode	80 watts per channel at 8 ohms
total harmonic distortion mono	0.15%
total harmonic distortion stereo	0.25%
frequency response	30 - 15, 000 Hz +/-1.5 dB
stereo separation	45 dB at 1 kHz / 30 dB at 10, 000 Hz
muting level	17.2 dBf, 2.0 pV (75 ohms)
continuous power output	2 x 100 watts at 8 ohms (DIN)
damping factor	60 at 8 ohms
input sensitivities phono	2.5 mV/50 kohms
input sensitivities CD/Tape play/Video in	150 mV/50 kohms
output level tape rec/video out	150 mV/2.2 kohms
pre out subwoofer	1 V/2.2 kohms
phono overload	120 mV RMS at 1, 000 Hz, 0.5% THD

Power Supply

power supply USA & Canadian models	AC 120 V, 60 Hz
power supply European models	AC 230 V, 50 Hz
power supply worldwide models	120 and 220-230 V switchable, 50/60 Hz

Tuner Section

FM tuning range	87.5 — 108.0 MHz (50 kHz steps)
usable sensitivity mono	11.2 dBf, 1.0 pV (75 ohms)
usable sensitivity stereo	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity mono	17.2 dBf, 2.0 pV (75 ohms)
50 dB quieting sensitivity stereo	37.2 dBf, 20 pV (75 ohms)
capture ratio	1.5 dB
image rejection ratio USA & Canadian models	40 dB
image rejection ratio other area models	85 dB
IF rejection ratio	90 dB
signal-to-noise ratio mono	73 dB
signal-to-noise ratio stereo	67 dB

Dimensions and Weight

dimensions	455 x 170 x 389 mm
dimensions in inches	17-15/16" x 6-11/16" x 15-5/16"
mass	11.8 kg (26.0 lbs)
