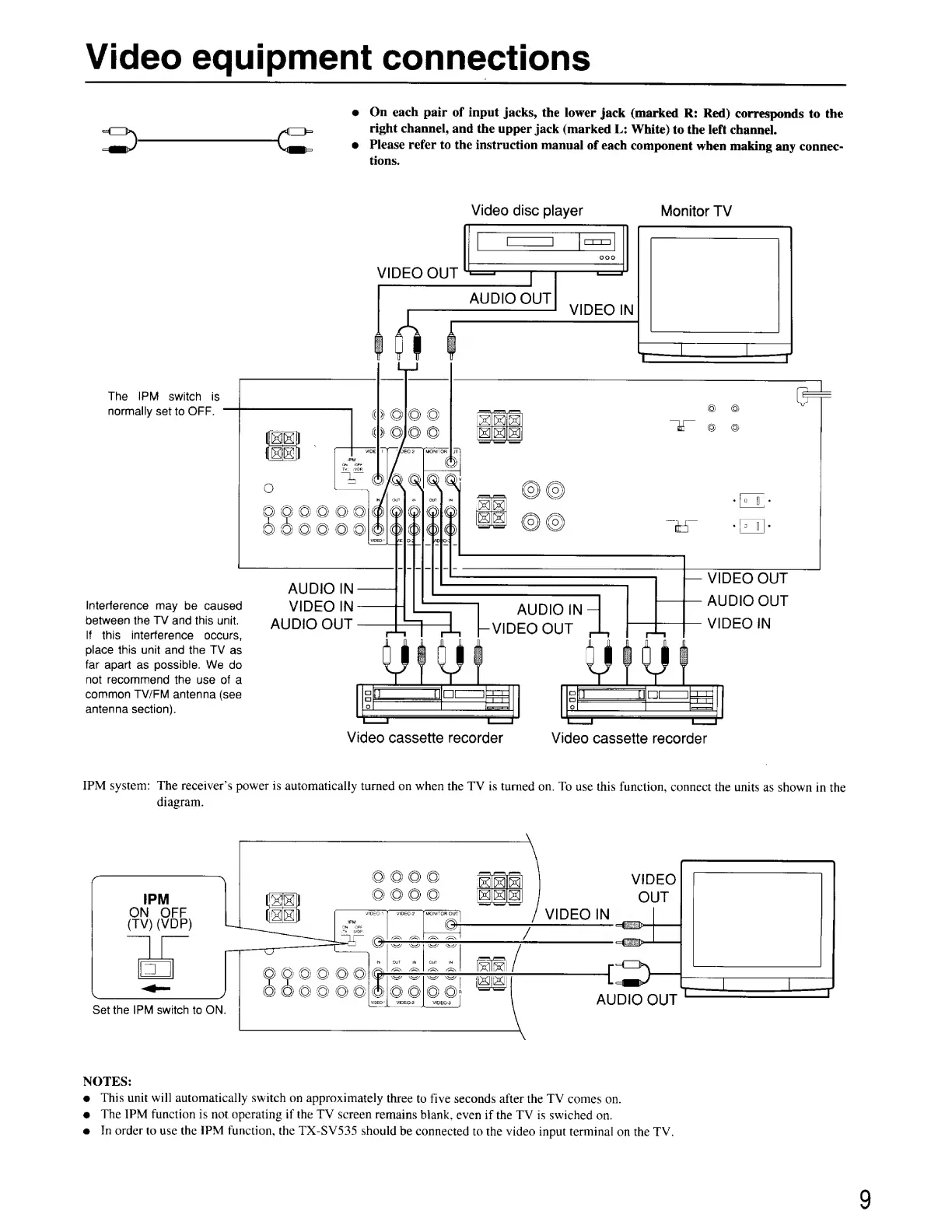

Video equipment connections
• On each pair of input jacks, the lower jack (marked R: Red) corresponds to the
m —\=> right channel, and the upper jack (marked L: White) to the left channel.
N • Please refer to the instruction manual of each component when making any connec¬
tions.
Video disc player
Monitor TV
VIDEO OUT
r i
AUDIO OUT
VIDEO IN
The IPM switch is
normally set to OFF.
Hi
is
m
IS
»©
>) ©
© ©
© ©
.. e
M
Mi
SI
~ir © ©
m
1
Interference may be caused
between the TV and this unit.
If this interference occurs,
place this unit and the TV as
far apart as possible. We do
not recommend the use of a
common TV/FM antenna (see
antenna section).
O
80000
WOOOO
AUDIO IN
VIDEO IN
AUDIO OUT
□
n=
[|
□ 1 1
_o_
EEL
■ -
Video cassette recorder
Video cassette recorder
IPM system: The receiver’s power is automatically turned on when the TV is turned on. To use this function, connect the units as shown in the
diagram.
NOTES:
• This unit will automatically switch on approximately three to five seconds after the TV comes on.
• The IPM function is not operating if the TV screen remains blank, even if the TV is swiched on.
• In order to use the IPM function, the TX-SV535 should be connected to the video input terminal on the TV.
9
