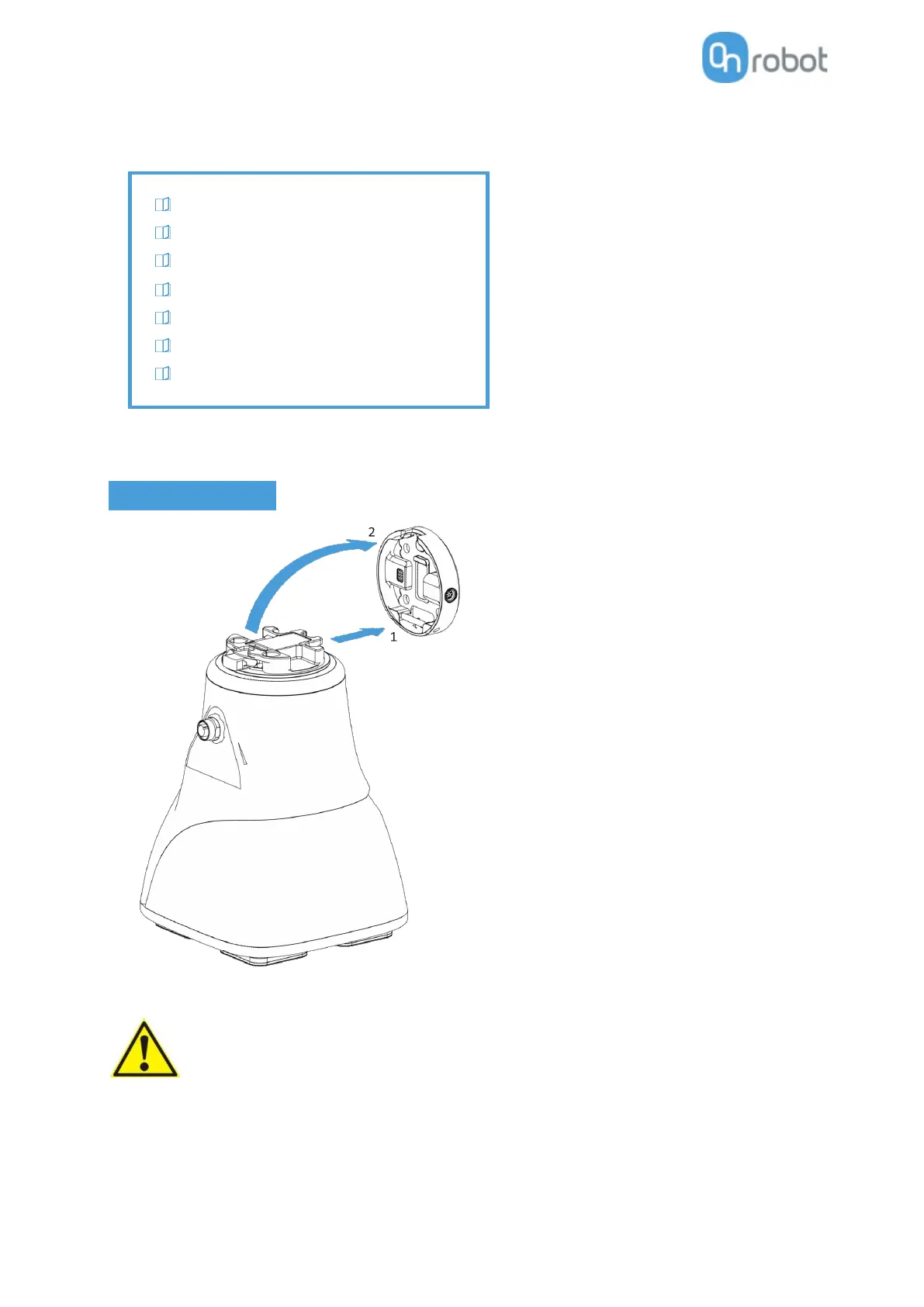

Gecko
Step 1:
Move the tool close to the Quick
Changer as illustrated.
The hook mechanism (rod and hook
tongue) will keep the lower part locked
once mounted.
Step 2:
Flip the tool until it is fully mated, and
you hear a clicking sound.
To unmount the tool, press the aluminum
button on the Quick Changer and repeat the
steps in the reverse order.
CAUTION:
With a Dual Quick Changer the Gecko Gripper can only be mounted on
the Secondary (2) side. Mounting on the Primary (1) side will prevent the
devices to function correctly.
