Openreach: Developer Guide

Concrete

base

Bolts foundation for

wall bearer/brackets

Duct

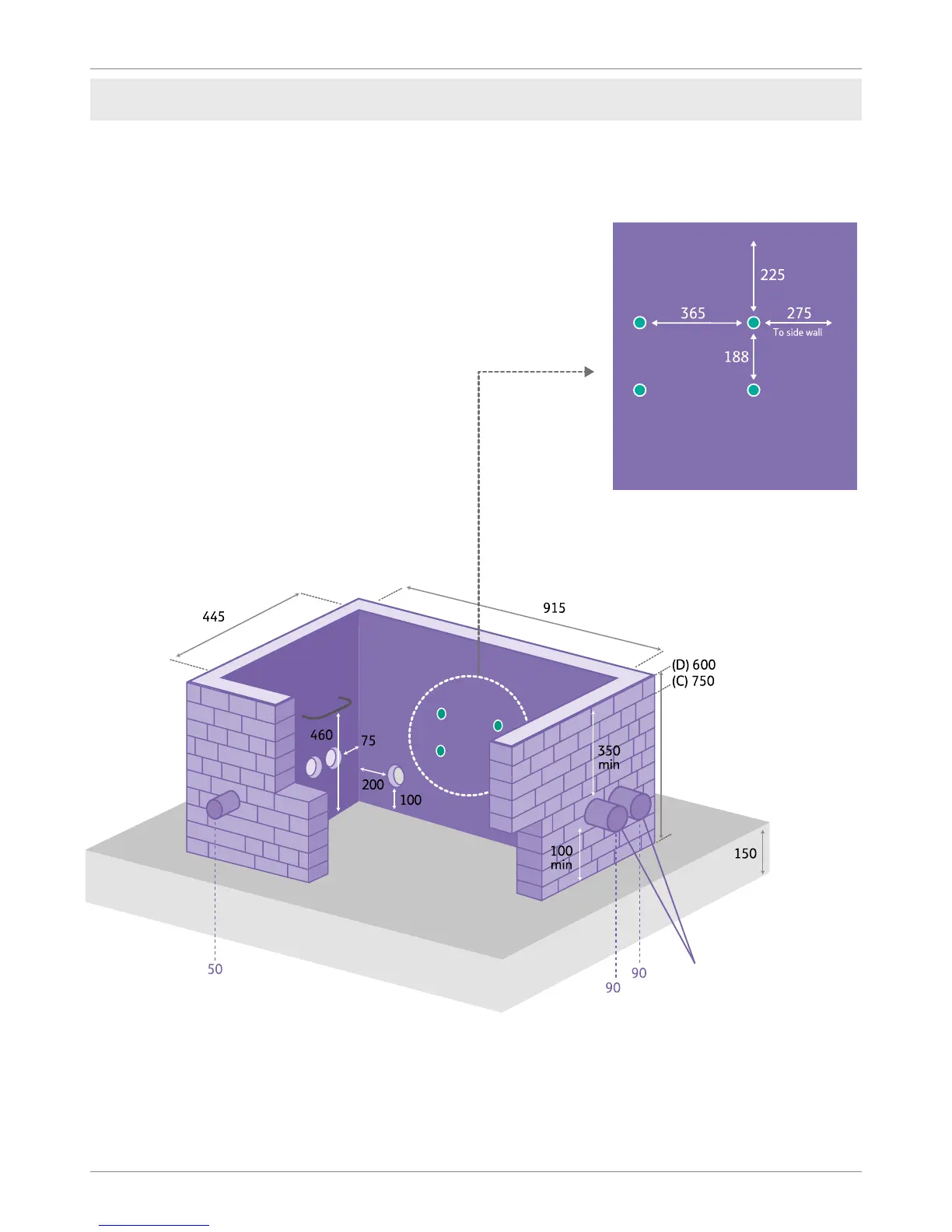

Joint box footway 104

– the preferred option

Internal dimensions. Brickwork Stretcher Bond.

Dimensions in mm (not to scale).

Joint boxes, footways and frames & covers
