6000 Series Digital Gas Monitor/Controller
5.0 Network Conguration
5.1 Using CAN Network with a Central Controller
A model 6000 controller serves as the central connection point
for the ventilation system. Model 60XX gas monitors transmit
alarm commands to the central controller.
A controller will display up to 32 monitors on the network. It
also displays their address, gas type, gas concentration, and
alarm status for each. Two relays on board can be congured for
different levels of gas or to operate different ventilation systems,
zones or groups. If more than two relays are needed add a
model 6100 Relay Expansion Unit which has four additional
relays.

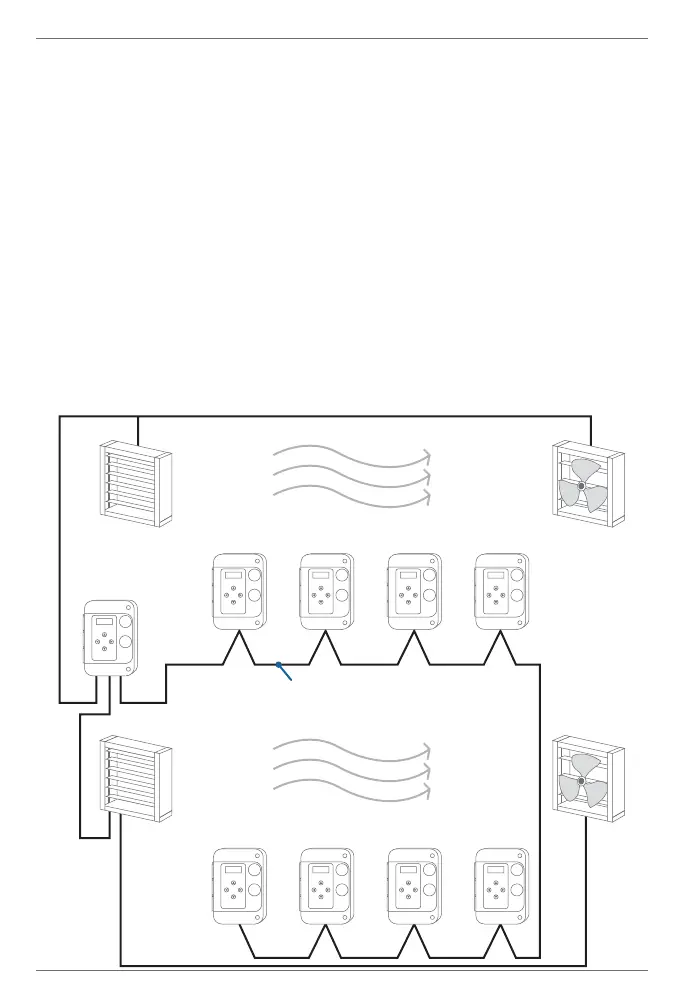

60xx 60xx 60xx 60xx
60xx 60xx 60xx 60xx
Controller
6000
Zone 1
Zone 2
24 Vac; 2 conductor 18-20 AUG
CAN; 2 conductor shielded 22-24 AUG
